• Pack

123/MINI-R-V-A-plus complete system

€455.00

Instead of €473.00

VAT included

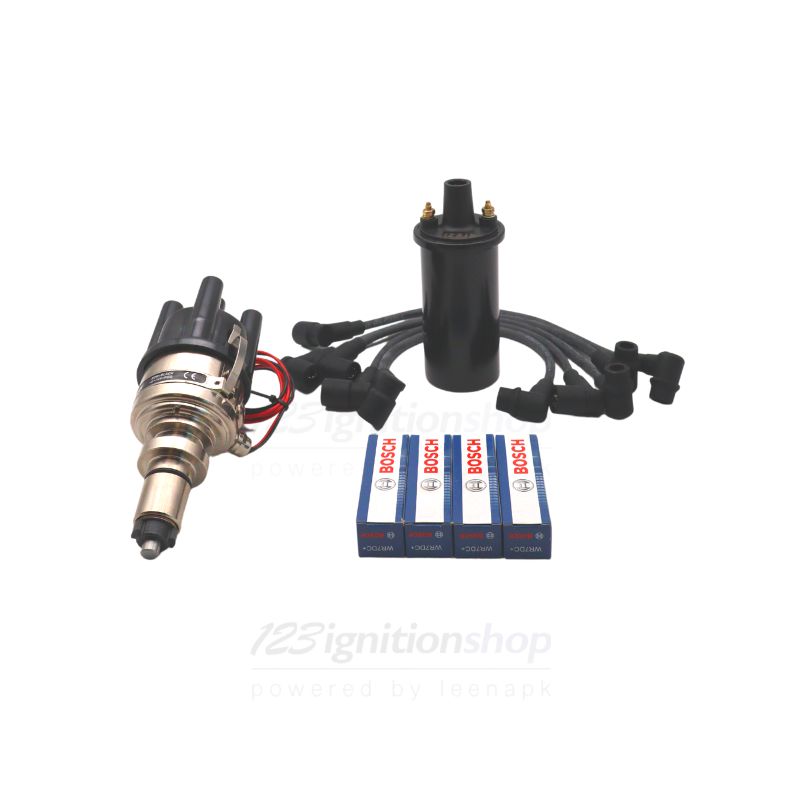

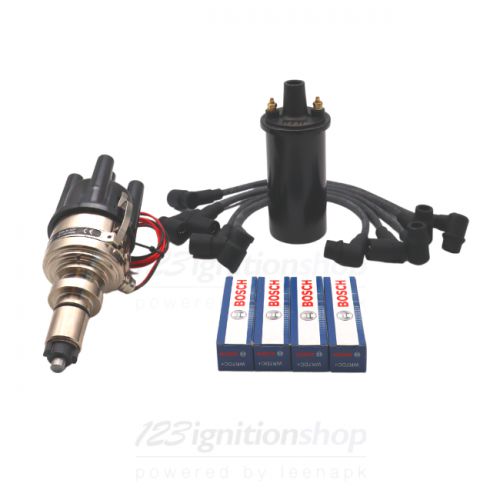

Now all in one order: a 123/MINI-R-V-A plus distributor + coil + set of 4 spark plugs + spark plug wires.

The 123/MINI-R-V-A-plus is designed with the Mini enthusiast in mind. This ignition is ment for an A-plus engine.

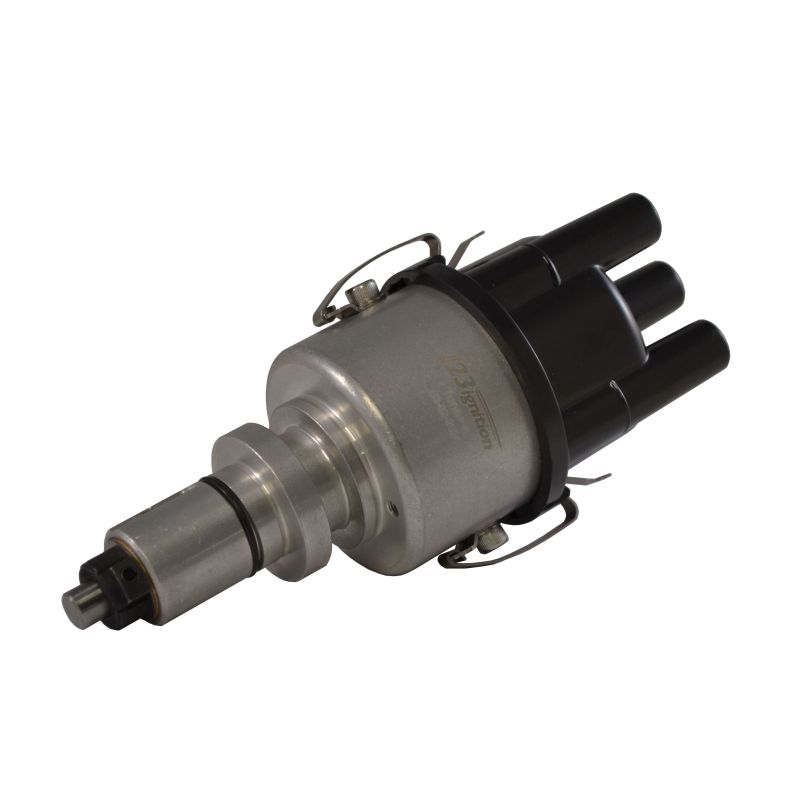

123/MINI-R-V-A-plus distributor for a Mini A-plus engine

The 123/MINI-R-V-A+ is designed with the Mini enthusiast in mind and is available for an A-plus engine.

Features of the 123/MINI-R-V-A-plus electronic ignition

The unit is laid out in such a way, that static timing can be done on TDC, by means of the built-in LED.
The unit offers 16 curves.

The unit also offers:
- Vacuum advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note about the 123/MINI-R-V-A-plus 123ignition

The A+ plus engines were made from circa 1980. Please make sure you'll need a A-plus version. For the old 'pre-A-plus' engines please order: 123/MINI-R-V.

If you want to tune your engine, we've got great news for you: this product is also available in a 123/TUNE+ version! Please read about the 123/TUNE+-4-R-V-MiniA+ here.

Please read the installation manual carefully. It contains more information about motor- and distributor numbers, static timing and the advance-curves, the specifications of the 123-ignition and a step-by-step description of the installation procedure. The installation manual also offers a comprehensive list, that links a curve-setting to a particular engine.

Coil and spark plugs

As used coils often were exposed to overheating in the past, the set contains a 123 Blue Coil.

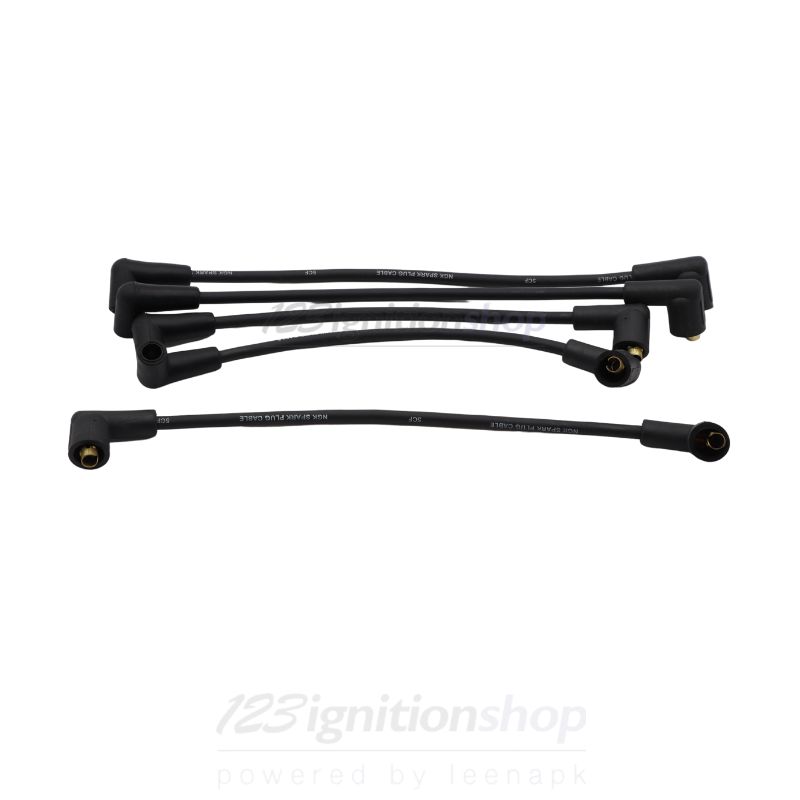

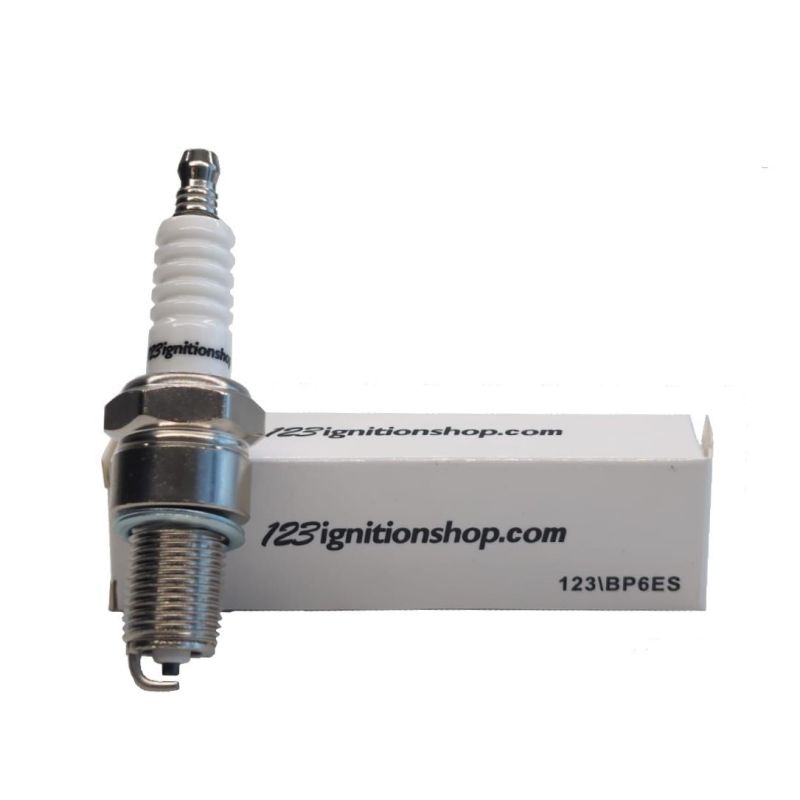

This set also offers 4 spark plugs and new spark plug wires.

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

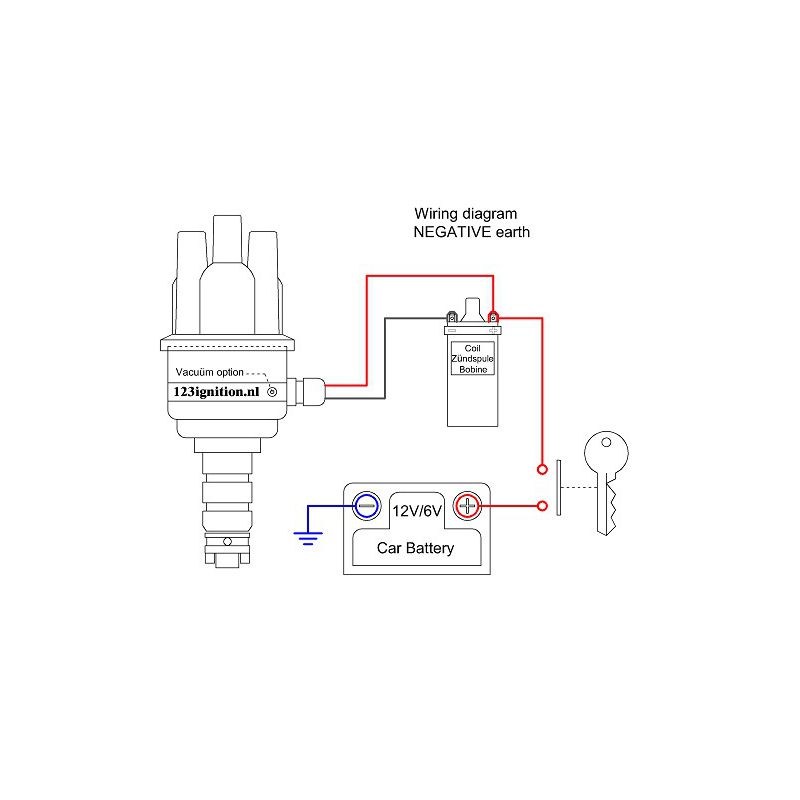

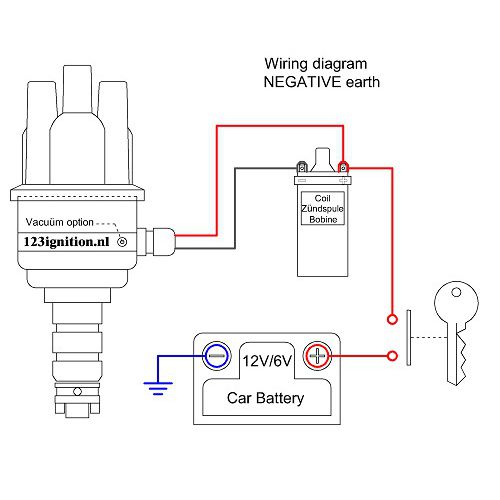

Wiring
red +6V of +12V, black - coil
