123/TUNE+ 4-R-V-G (bluetooth), vervangt Lucas verdelers

123/TUNE+ 4-R-V-G (bluetooth), vervangt Lucas verdelers

€ 435,00
Inclusief BTW

Via uw telefoon of tablet zelf uw motor tunen? De TUNE+ is de eerste elektronische ontsteking ter wereld die u zelf kunt instellen door middel van een draadloze verbinding met uw iOS en Android Bluetooth 4.0 apparaten. De gratis app maakt het mogelijk om de ontstekingscurve te wijzigen, een elektronisch dashboard te tonen en uw auto te beveiligen door middel van start blokkering.

Model "G" vervangt de meeste Lucas verdelers, zoals gebruikt door MG, Triumph en Jaguar (gelieve de afmetingen te vergelijken voordat u bestelt).

Verdelerkap : Recht (R)
Aantal
Op voorraad

Get it on Google Play Download on the Apple Store

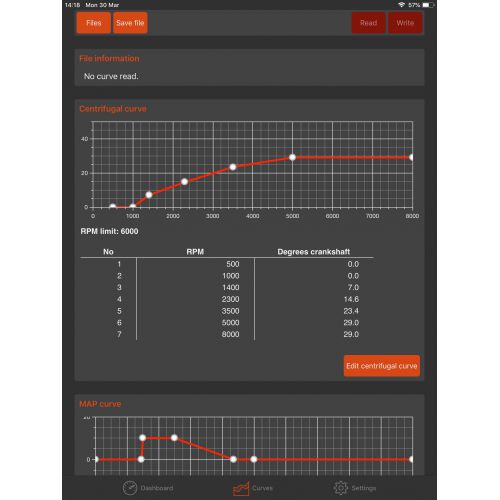

123/TUNE+ draadloos programmeren

Na het installeren van de gratis app en het opzetten van een Bluetooth verbinding kunt u de 123/TUNE+ via uw telefoon of tablet zelf instellen met een eigen, optimale vervroegingscurve.

De app maakt het mogelijk om de ontstekingscurve te wijzigen, een elektronisch dashboard te tonen en uw auto te beveiligen door middel van start blokkering.

Model "G" voor Lucas verdelers

Model "G" vervangt de meeste Lucas verdelers, zoals gebruikt door MG, Triumph en Jaguar (gelieve de afmetingen te vergelijken voordat u bestelt).

Eigenschappen van de 123/TUNE+ 4-R-V-G

- Geschikt voor zowel een draairichting die met de klok mee gaat (CW), als tegen de klok in (CCW) (auto detect)
- Voor 6 Volt of 12 Volt auto's (auto detect)
- Voor auto's met plus of met min aan massa
- Variabele contacthoek (auto detect)
- Bobine stroomloos na 1 seconde (auto detect)
- Vervroegingscurve (500 to 8000 rpm)
- Vacuüm-vervroeging & boost-retard curve (0 tot 200 kPa of -30 inHg tot +15 psi)
- Toerental grens (MAP-start) waarbij vacuümvervroeging begint
- Toerenbegrenzing (advanced random spark stealing)
- Real-time tuning vanaf uw smartphone (ideaal voor het werken met een rollerbank)

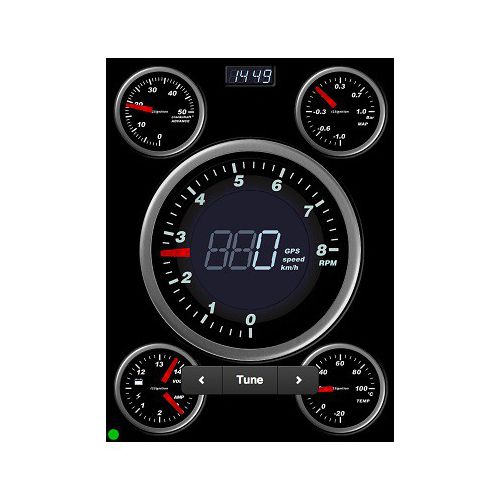

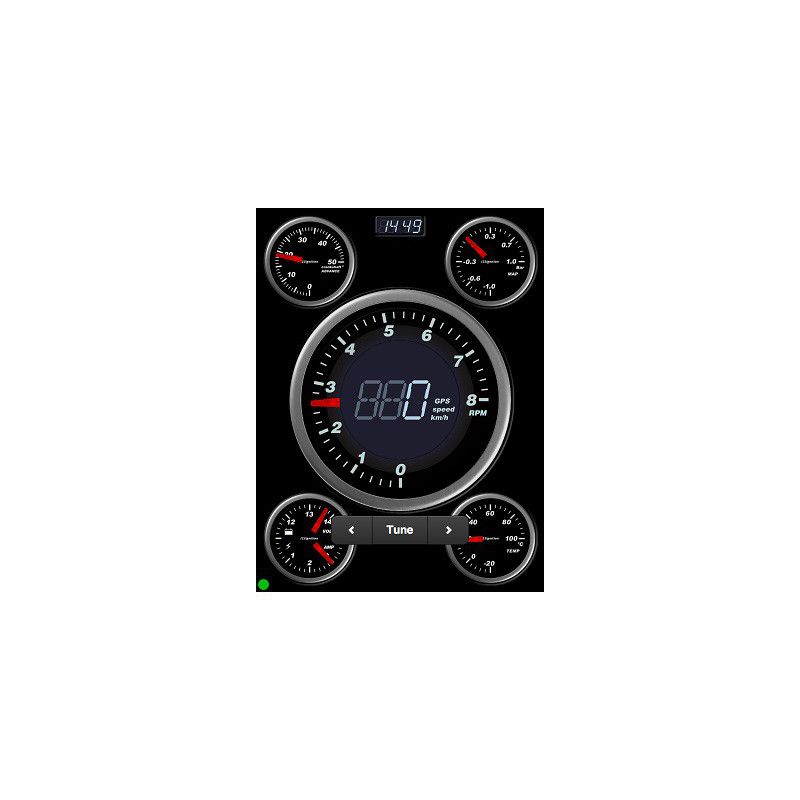

Wat u op uw telefoon of tablet kunt zien tijdens het rijden

- Temperatuur meter (u kunt kiezen voor een weergave in graden Celsius of Fahrenheit)
- Onder- of bovendruk in het inlaatspruitstuk (weergave in Bar of inches Hg/Psi)
- Toerenteller (0 tot 8000 krukas omwentelingen per minuut)
- Meter die de energie door de bobine aangeeft (primaire bobine stroom)
- Meter van de totale vervroeging (in krukas-graden-vervroeging)
- Accuspanning
- GPS speed

Aandachtspunten bij de TUNE+

We raden u aan om de afmetingen van de 123/TUNE+ grondig te vergelijken met die van uw originele verdeler EN om de installatie handleiding zorgvuldig te lezen voordat u uw bestelling plaatst! In de installatiehandleiding staat verdere informatie over het inbouwen en installeren. Aan de hand van een aantal voorbeelden wordt stap voor stap beschreven hoe u de 123/TUNE+ kunt programmeren.

De TUNE+ werkt met Apple iOS en Android apparaten die beschikken over Bluetooth 4.0.

Bobine en bougies

Gebruikte bobines verkeren vaak niet meer in goede staat. Het is niet mogelijk na te gaan hoe vaak een bobine in het verleden is blootgesteld aan oververhitting. Indien u bij de aanschaf van uw 123 ontsteking tegelijkertijd een nieuwe bobine aanschaft, weet u zeker dat deze bobine niet meer oververhit zal raken. Natuurlijk kunt u deze ook eenvoudig bij ons bestellen, wij adviseren de 123 Blue Coil.

Misschien heeft u ook nieuwe bougies nodig? In deze 123ignitionshop bieden we ook de meest gebruikte bougies aan die bij de auto's horen waarvoor 123ignitions zijn ontworpen. Zie de pagina met bougies.

Complete set

Nu ook in een keer de complete set te bestellen: een 123/TUNE+ 4-R-V-G verdeler + 123 Blue Coil + set van 4 bougies WR7DC + bougiekabels

Datasheet

Cilinders
4
Draairichting
CW/CCW
Voltage
4,0 - 15,0 volt
Bereik
500 - 8000 rpm
Temperatuur
-30 tot 100 Celsius
Spoel
Standaard of hoge energie spoel, primaire spoel NIET onder 1,0 ohm
Interval
Constante stroom, volledig automatisch
Time-out
Na 1 seconde wordt de stroom uitgeschakeld
Nauwkeurigheid
Minder dan 0,5 graden krukas
Vacuüm
Programmeerbaar: -20 / +20 graden
Max. vervroeging
45 graden krukas

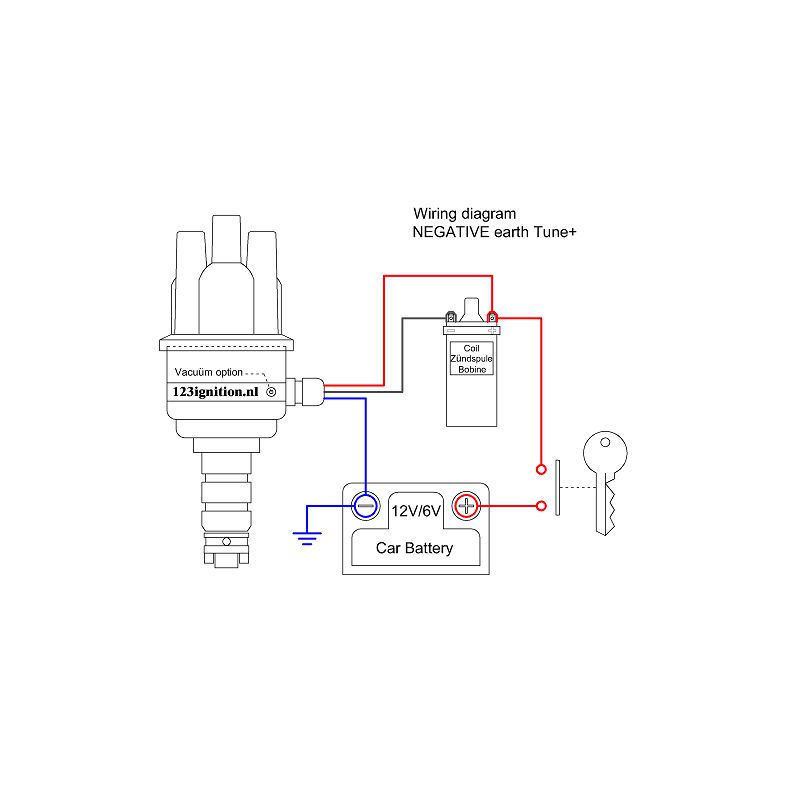

Bedrading
rood +6V of +12V, zwart '-' bobine, blauw chassis grond
Aardtype
Geschikt voor negatieve en positieve aardtypes
Kromme
Draadloos programmeerbaar met Android of iOS app

Downloaden

MGB

123/MG Curve "6" | Vervangt 41288

Downloaden (1.52KB)

Mini 1275

123/Mini Curve "B" | Lucas 40979 & 41057 & 41212 & 41246 & 41411

Downloaden (1.66KB)

Mini 1275

123/Mini Curve "C" | Lucas 40767 & 40819 & 40899 & 41007 & 41250

Downloaden (1.65KB)

Mini 1275

123/Mini Curve "F" | Lucas 40768 & 40873 & 40941 & 41249 & 41569

Downloaden (1.66KB)
Grade
Alberto 07-11-2020

Alberto

I have a Volvo 240, with b230 engine, I decided to change the old distributor, because it has contact breaker, and capacitor, it works good, but I wanted to upgrade to a electronic one, so I ordered, one with Bluetooth, it arrive fast, well shipped, to Ecuador, in South America, once received, I proced with instalation, have some issues with the installation, but I receive immediately support, the car runs 30% faster and better than before, I have installed 2 weber 50, and I think is the perfect combination to obtain better performance. I suggest, to change the ignition coil, too, in order to have better rpm.
I download the application from android and have all valuable information from the distributor. The option to secure the engine is very useful, for unauthorized people. I recomend this product.

Grade
Bastian Weigand 25-04-2020

Excellent product! 1972 MGB

I bought the Tune+ to replace the old standard Lucas distributor on my 1972 standard 1800 RHD MGB. I decided for an angled cap instead of the original straight cap as I have a RHD car and this version gives me more clearance between the distributor and the steering column.

Installation is very simple and the manual attached is brief and easy to understand. The distributor itself fits beautifully.
Just set ignition and basic curve to match the old distributor and the engine started right up. Leen is very helpful if you have questions on finding the correct advance curve for your old dizzy. The app is self explanatory and allows you to do a road tuning starting on the standard curve. The engine runs very smooth and has a quite more power now.
All in all a very good product. Shipping was very quick and the distributor was well packed against poor handling.

Grade
Stefan hoffmann 09-10-2019

Great Product, easy installation

The product fit perfectly and replaces the Lucas distributor o my 1961 Triumph TR3A - positive earth.
The installation manual is very brief but sufficient. There is a more comprehensive one for download al limora.com...
The engine started immediately after installation with the default curves installed.
You need to install an app to adapt the advance curves - unfortunately, the app is not completely self explanatory.

Grade
Linden 06-08-2017

Help for Johannes E

Gday Johannes E. Just read your review and it sounds like you like 123's like me. On your iphone, there is definately a setting to make it stay on. I changed it in mine, not only for this but originally for hiking with offline Gps. The 8000 rpm tacho in my case is abit short, my new mini engine build, 9-10000 would be more useful. An option of tacho range would be perfect! So the rev limiter I can't use either. I'll need an external one. Still an amazing quality distributor!

Grade
Johannes E. 21-06-2017

Quick & easy

I bought this version to replace my "standard" 123 (from ca. 2007), which was still doing its work without trouble (it went into the boot as spare now).
Why?
1) I wanted to use a better fitting curve for my engine (TR- 4cyl.), the predefined curves of the standard version can be improved to give more torque at low rpm.
2) The integrated immobiliser is a nice add-on to prevent theft/ unauthorised usage of the car.

- Installation was as simple as before
- it came with a default curve, that allow the engine to start & run
- using the app (iOS) it is extremly simple to change the curves incl. a curve for the vacuum advance
- the dashboard is a bit small due to the size of my smartphone

Some ideas for improvement:
- Adjust the range of the rev counter: (8000 ist to much, my engine has max. power at 4800). Idea: Use the rev limit as maximum range for the rev counter
- with the actual iOS the phone switches of after max. 5 minutes - iOS doesn't allow to prevent this. An option to keep the phone on during driving would be nice
- On a small display it could be easier to read to display the small dials as numbers. Especially when driving with sunglasses the red pointer on black background is almost impossible to see.

But to be honest: You play around with it a bit and once a setup for the car is found there is no necessity to look at this display: This app is necessary only to lock/ unlock the ignition if the immobiliser ist used.

In my eyes: A really good improvement over the older versions ! ! !
