• Pack

123/TUNE+ 6-R-V-M complete system for W114 engines

€655.00

Instead of €663.00

VAT included

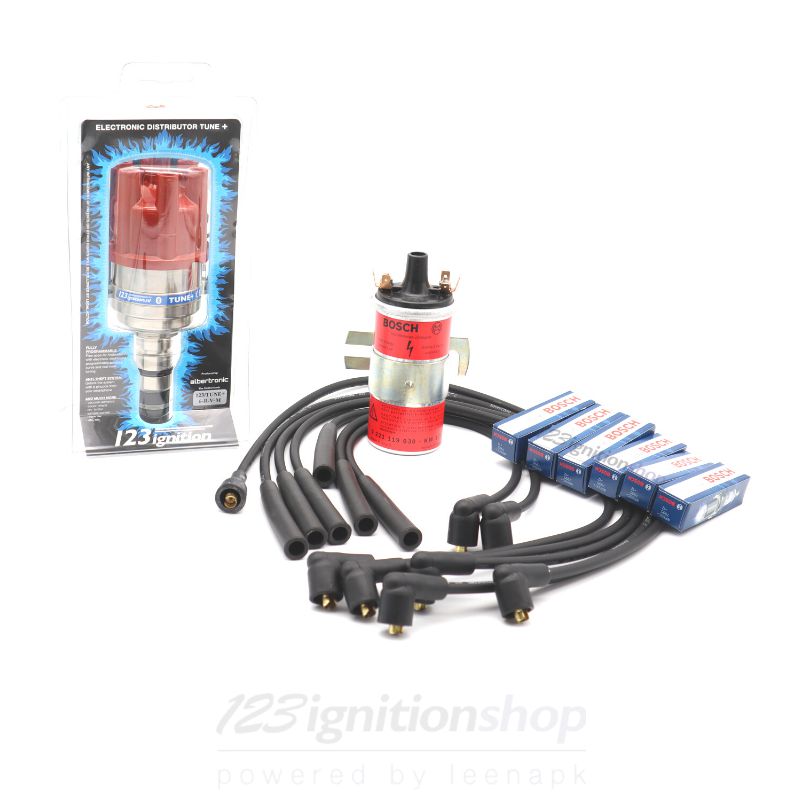

Now all parts in one order: a 123/TUNE+ Mercedes-6-R-V distributor + ignition coil + set of 6 spark plugs + spark plug cables!

Get it on Google Play Download on the Apple Store

Complete electronic ignition set for a Mercedes W114 engines.

Now all parts in one order: a 123/TUNE+ Mercedes-6-R-V distributor + ignition coil + set of 6 spark plugs + spark plug cables!

Contents of the set

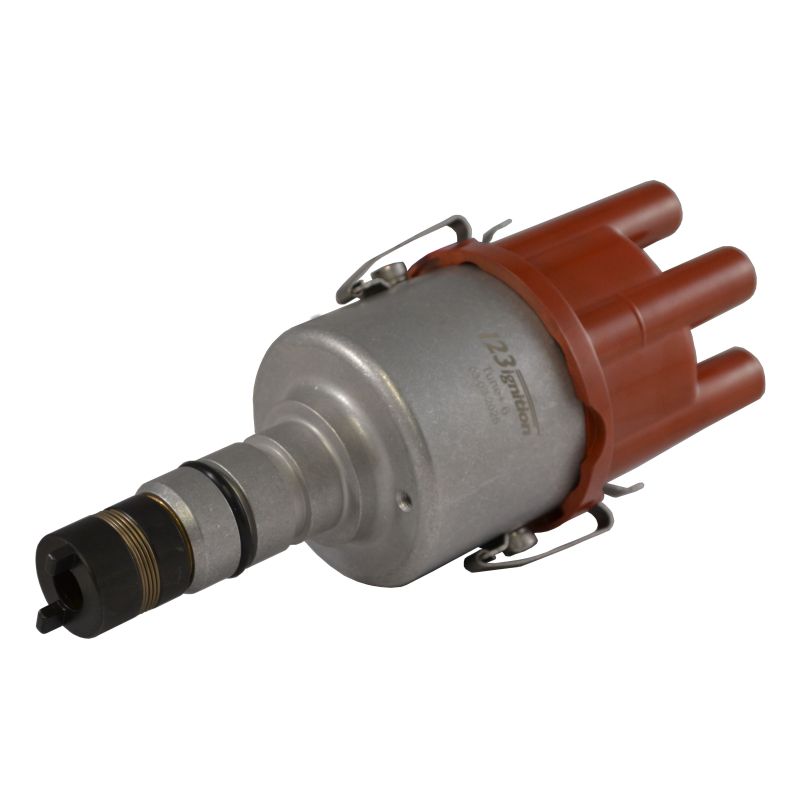

  • The 123/TUNE+ Mercedes-6-R-V is specially designed for 6 cylinder Mercedes W114 engines WITH vacuum advance.

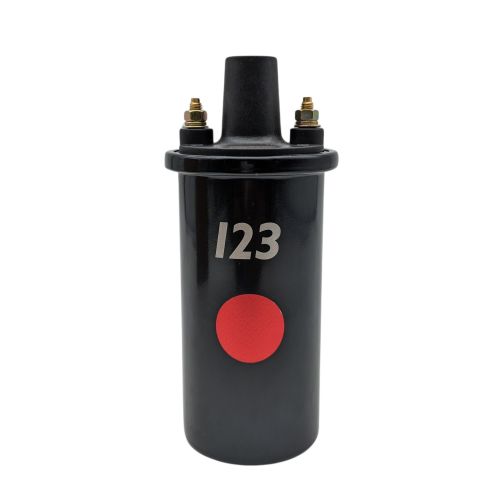

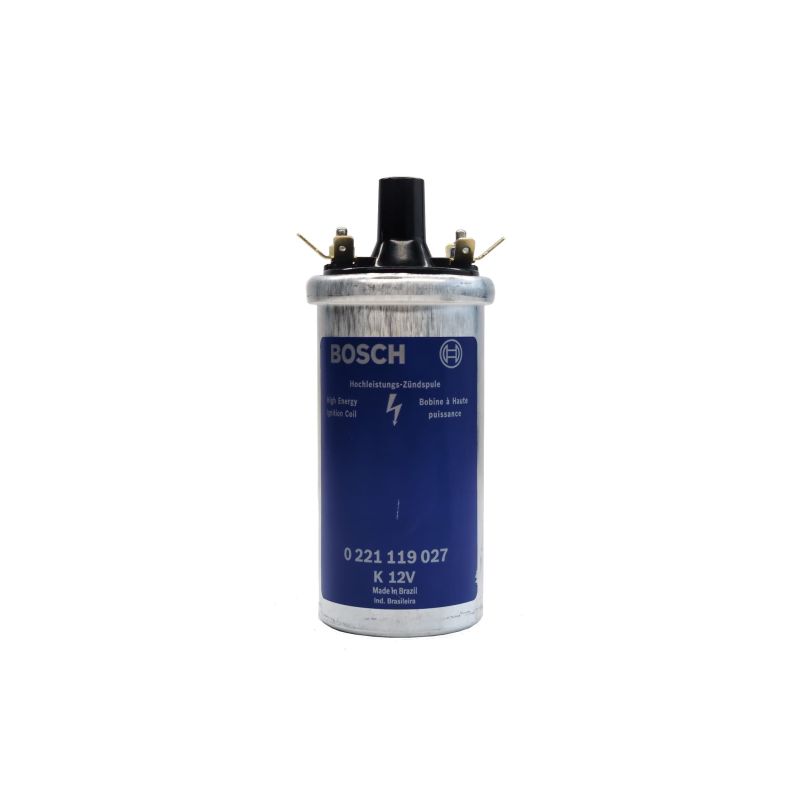

  • Because old ignition coils have often been overheated, a 123 Red Coil is included in this set.

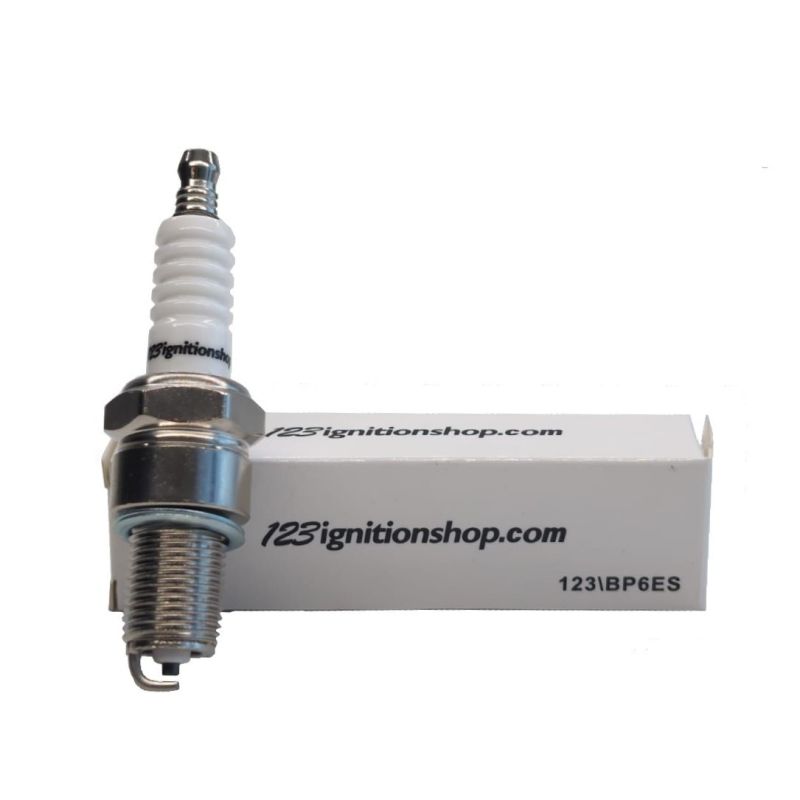

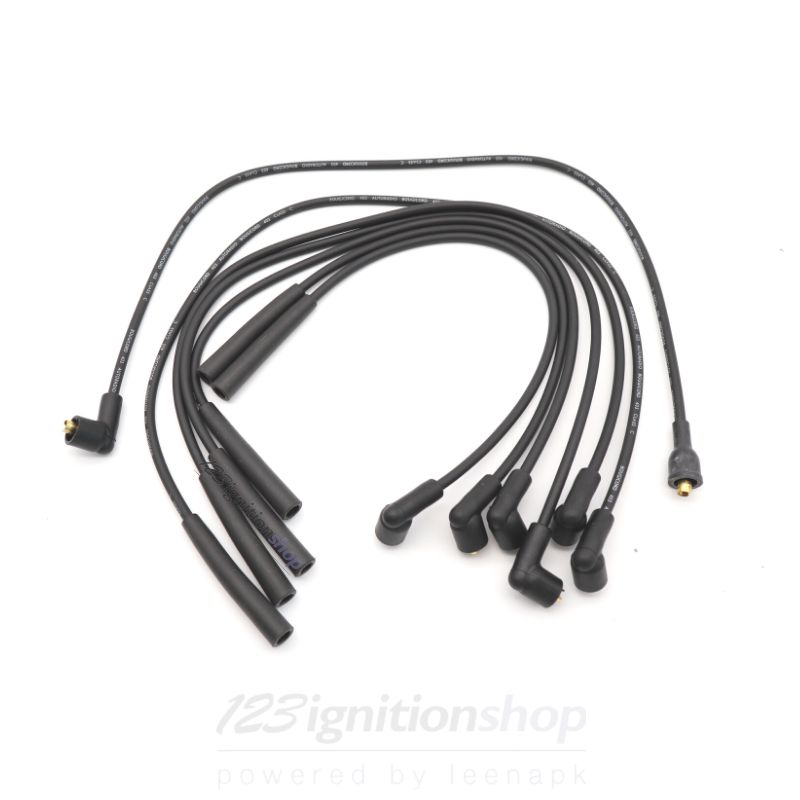

  • A set of 6 spark plugs and spark plug wires have also been added.

Points of attention with the 123/TUNE+ Mercedes-6-R-V-M electronic ignition

The spark plug wires are suitable for (check the length of the wires):

Mercedes
(W114) 250 M 114.920 01.68 - 08.72
(W114) 250 M 114.920 07.68 - 08.72
Coupe (W114) 250 C M 114.920 04.69 - 06.72
Coupe (W114) 250 CE M 114.980 04.69 - 04.72

About the 123/TUNE+ 6-R-V-M

Tuning your engine using your own tablet or smartphone? The TUNE+ is the first wireless electronic ignition that you can program yourself using your iOS or Android Bluetooth 4.0 devices. The free App enables you to adjust the advance curve. It shows an electronic dashboard. Within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!

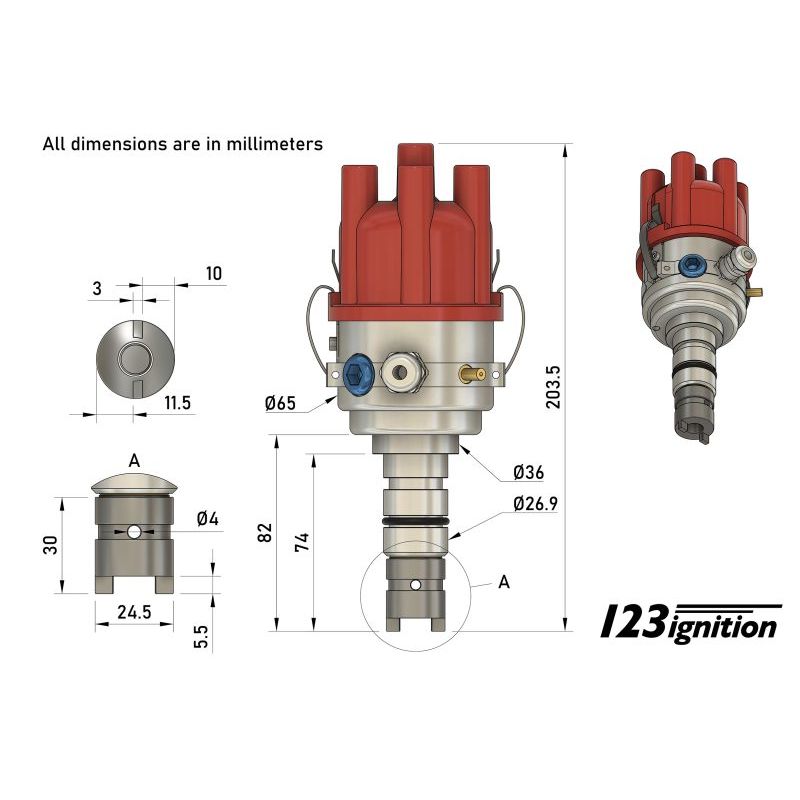

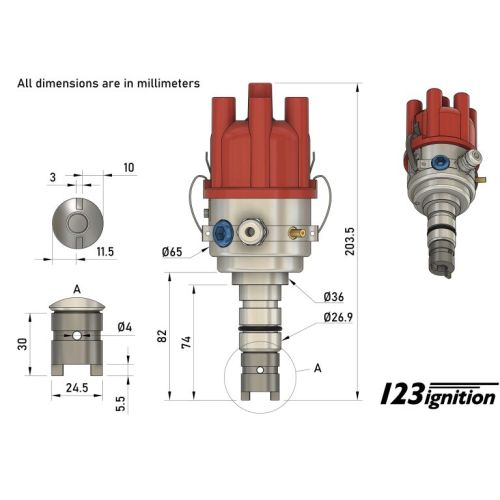

The "M" model will replace most Bosch distributors, for example used in Mercedes (please check dimensions before ordering). The 123/TUNE+ 6-R-V-M for 6 cylinders comes (only) with an upright cap.

For more information about this ignition like the features and installation, please click here.

7125

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft
Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app

No customer reviews for the moment.

Accesories
