• Pack

TUNE+ Rover V8 ignition system

€660.33
VAT excluded

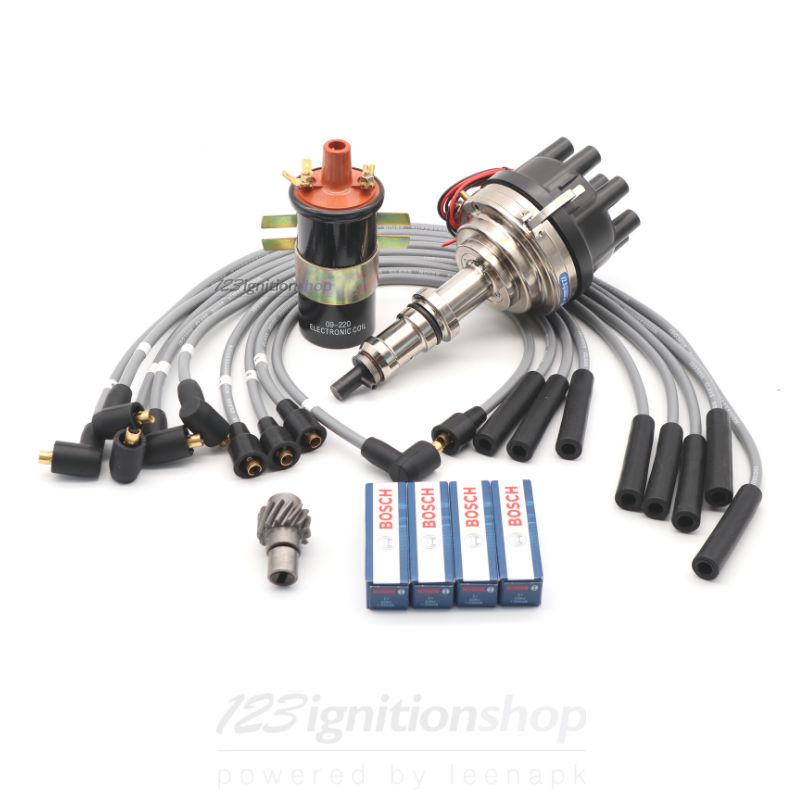

Now all in one order: a 123/TUNE+ Rover-V8 distributor + cogwheel + coil + set of 8 spark plugs + spark plug wires.

Get it on Google Play Download on the Apple Store

Now all in one order: a 123/TUNE+ Rover-V8 distributor + (mounted) cogwheel + coil + set of 8 spark plugs + spark plug wires.

The "Rover-V8" model replaces distributors used in Rover V8 engines (SD1 engines) as produced from 1976 onwards (please check dimensions before ordering).

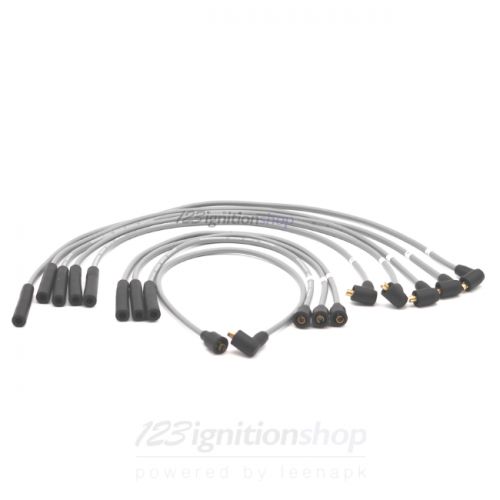

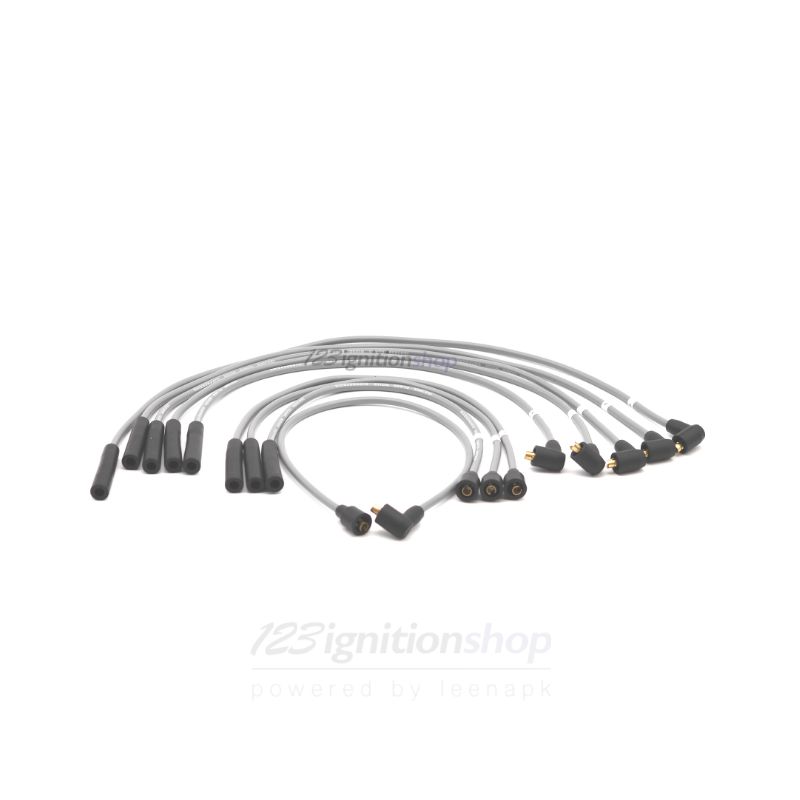

This set also offers a V8 coil, 8 spark plugs and new spark plug wires.

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

V8

Data sheet

Cylinders
8
Direction of rotation
CW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft

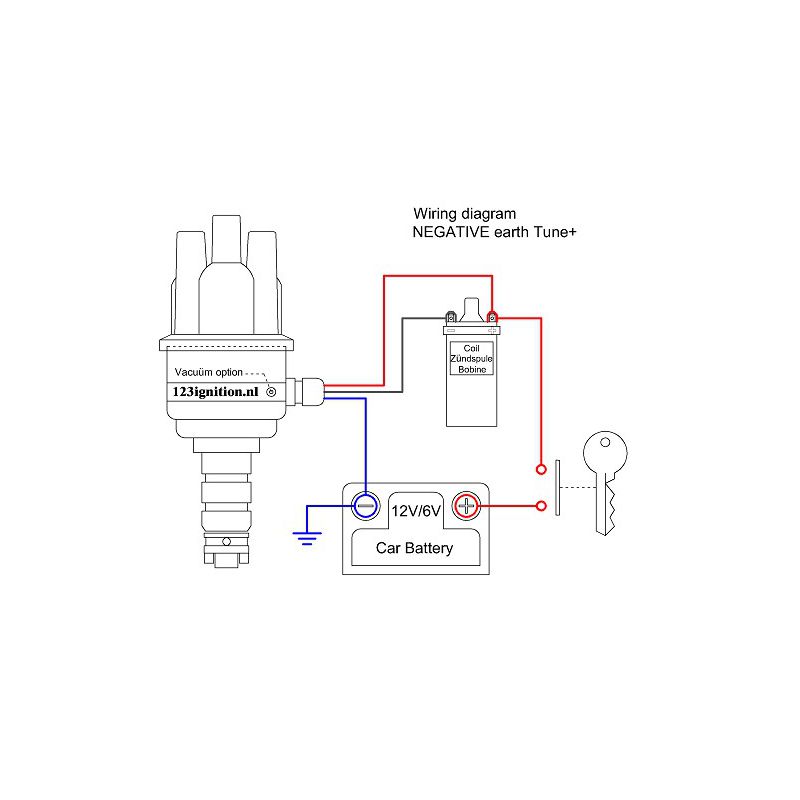

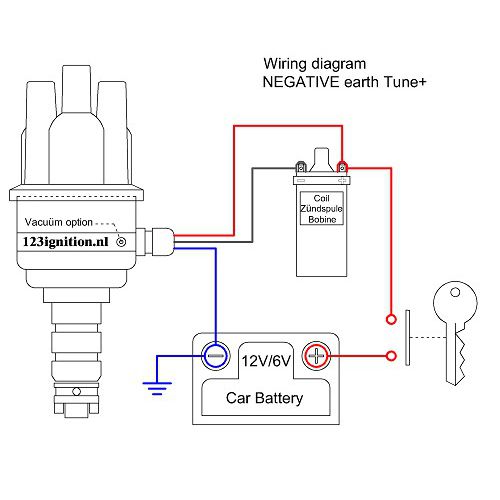

Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
