Tune your engine yourself via your phone or tablet? The TUNE+ is the world’s first electronic ignition system that you can program yourself through a wireless connection with your iOS and Android Bluetooth 4.0 devices. The free app allows you to modify the ignition curve, display an electronic dashboard and secure your car by means of a start immobilizer.
Model "Mercedes M100" replaces Bosch distributors used by Mercedes in the:
- Mercedes-Benz 300SEL 6.3 (W109)
- Mercedes-Benz 600 (W100)
- Mercedes-Benz 600 Pullman (W100)
For the first unit, we require an original Bosch distributor for measurement purposes. Please contact us before placing your order.

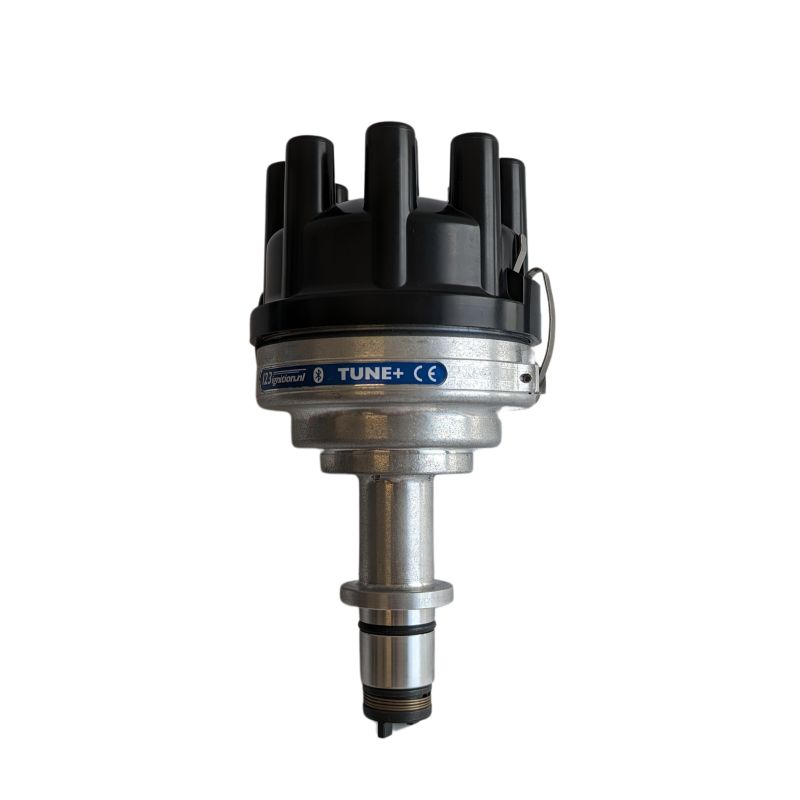

The current image is an indication of what the distributor will look like; however, in reality it will be slightly longer than shown in the image.
123ignition TUNE+ Mercedes M100 (Bluetooth)
€999.00
VAT included
Tune your engine yourself via your phone or tablet? The TUNE+ is the world’s first electronic ignition system that you can program yourself through a wireless connection with your iOS and Android Bluetooth 4.0 devices. The free app allows you to modify the ignition curve, display an electronic dashboard and secure your car by means of a start immobilizer.
Model "Mercedes M100" replaces Bosch distributors used by Mercedes in the:
- Mercedes-Benz 300SEL 6.3 (W109)
- Mercedes-Benz 600 (W100)
- Mercedes-Benz 600 Pullman (W100)
For the first unit, we require an original Bosch distributor for measurement purposes. Please contact us before placing your order.
The current image is an indication of what the distributor will look like; however, in reality it will be slightly longer than shown in the image.
123ignition TUNE+ wireless programming

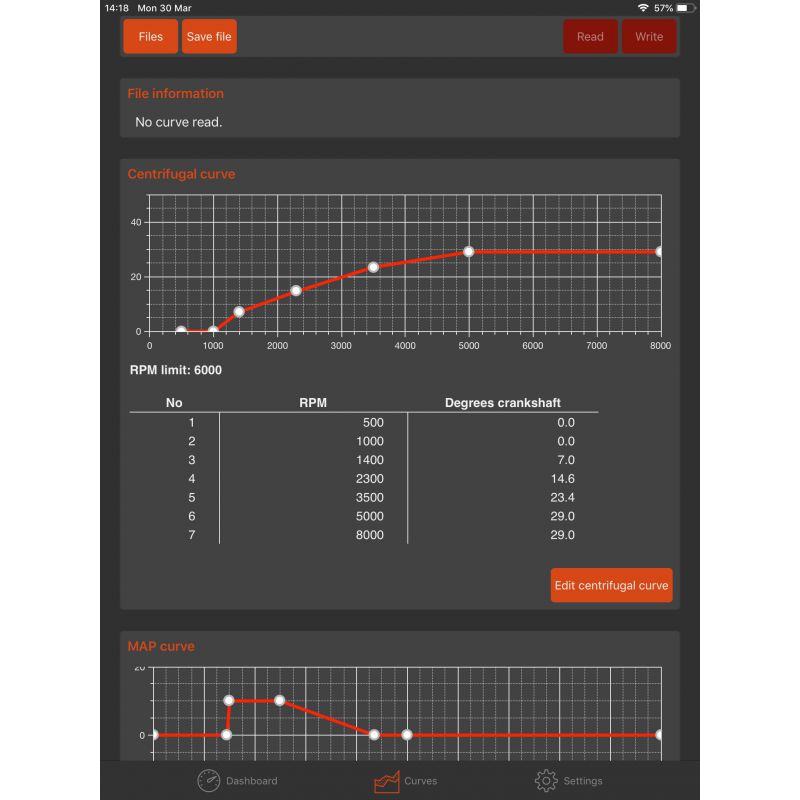

After installing the free app and establishing a Bluetooth connection, you can configure the 123ignition TUNE+ yourself via your phone or tablet with your own optimal advance curve.
The app allows you to modify the ignition curve, display an electronic dashboard and secure your car by means of a start immobilizer.
Model "Mercedes M100" distributors
Model "Mercedes M100" replaces Bosch distributors used by Mercedes in the:
- Mercedes-Benz 300SEL 6.3 (W109)
- Mercedes-Benz 600 (W100)
- Mercedes-Benz 600 Pullman (W100)
For the first unit, we require an original Bosch distributor for measurement purposes. Please contact us before placing your order.
The current image is an indication of what the distributor will look like; however, in reality it will be slightly longer than shown in the image.
Features of the 123ignition TUNE+ Mercedes M100
- Suitable for both clockwise (CW) and counterclockwise (CCW) rotation (auto detect)
- For 6 Volt or 12 Volt cars (auto detect)
- For vehicles with positive or negative ground
- Variable dwell angle (auto detect)
- Coil current switched off after 1 second (auto detect)
- Advance curve (500 to 8000 rpm)
- Vacuum advance & boost-retard curve (0 to 200 kPa or -30 inHg to +15 psi)
- RPM threshold (MAP-start) at which vacuum advance begins
- Rev limiter (advanced random spark stealing)
- Real-time tuning via your smartphone (ideal for use on a rolling road)

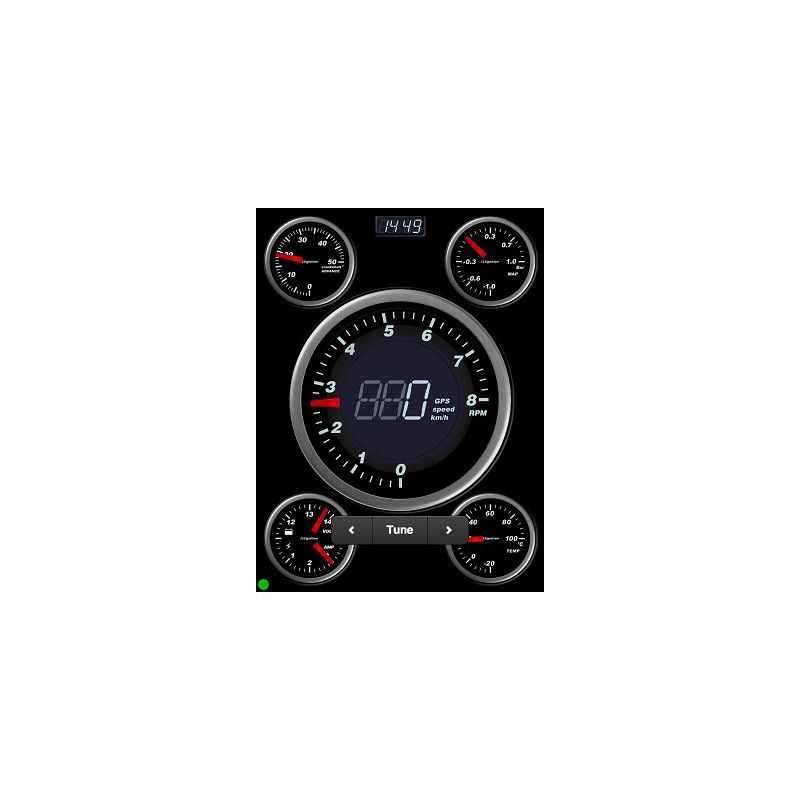

What you can see on your phone or tablet while driving
- Temperature gauge (display in degrees Celsius or Fahrenheit)
- Manifold vacuum or boost pressure (display in Bar or inches Hg/Psi)
- Tachometer (0 to 8000 crankshaft revolutions per minute)
- Coil energy meter (primary coil current)
- Total advance meter (in crankshaft degrees)
- Battery voltage
- GPS speed
Important notes regarding the TUNE+
We recommend carefully comparing the dimensions of the 123ignition TUNE+ with those of your original distributor AND reading the installation manual thoroughly before placing your order. Further information about installation and fitting can be found in the installation manual. Several examples explain step by step how to program the 123ignition TUNE+.
The TUNE+ works with Apple iOS and Android devices equipped with Bluetooth 4.0.
Special GJ10
Data sheet
- Cylinders
- 8
- Direction of rotation
- CW/CCW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 10.000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- Programmable: -20 / +20 degrees.
- Max. Advance
- 40 degr. crankshaft

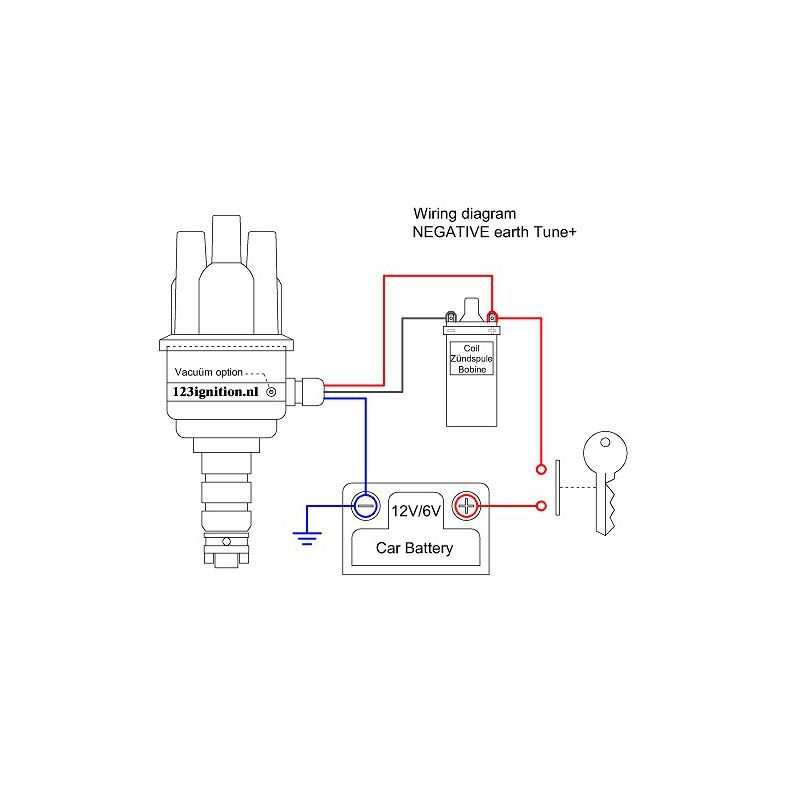

- Wiring
- red +6V or +12V, black '-' ignition coil, blue chassis ground
- Earth type
- Suitable for negative and positive earth systems
- Curve
- Wirelessly programmable with Android or iOS app
