123/RENAULT-4-R-V for the Cleon engines

€280.17
VAT excluded

The 123/RENAULT-4-R-V is a distributor, specifically targeted for the "Cleon"-engines as used in Renault 4, Renault 5, 4F4, 4F6, Renault Estafette, Volvo 343 and DAF55. It contains all the curves for carbureted-engines as originally specified by Renault.

Distributor cap
Quantity
In stock

123/RENAULT-4-R-V distributor for "Cleon"-engines in Renault 4, 5, 4F4, 4F6, Renault Estafette and DAF55

The 123/RENAULT-4-R-V is a distributor, specifically targeted for the "Cleon"-engines as used in Renault 4, Renault 5, 4F4, 4F6, Renault Estafette and DAF55.

The 123/renault-4-R-V contains all the curves for carbureted-engines as originally specified by Renault. The end-user can select one of 15 different advance-curves by means of a little switch in the side of the distributor-body.

The following curves are supplied:
0 : R-222 C33 Renault-4-Fourgon / 688
1 : R-280 C52 Renault 4 GTL / 688
2 : R-244 D61 Renault 4 GTL / 688
3 : R-268 C52 Renault 4 Savanne / 708
4 : R-275 C34 Renault 5 engine / 800-10 ( same as R-287 C34 )
5 : R-268 C34 Renault 5 engine / 689-10
6 : R-248 C34 Renault 5 engine / 810-25
7 : R-248 C33 Renault 5 engine / 810-26
8 : R-294 D61 Renault 5 engine / 810-29 AND for Volvo 343, Ducellier 6623
9 : R-308 C33 Renault 5 / 1400cc engine
A : R-230 C34 Renault 5 Alpine, please note: dimensions don't fit mechanically, an adaption is necessary
B : BB/BR110 DAF 55
C : B130 DAF 55
D : R-249 C33 Renault Estafette R-2136/7 engine 810-01 1289 cc
E : ZS & ZT Savanne, Estafette/671

Features of the 123/Renault-4-R-V electronic ignition

The 123/Renault-4-R-V offers:
- Vacuum-advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note about the 123/Renault-4-R-V 123ignition

If you want to tune your engine, we've got great news for you: this product is also available in a 123/TUNE+ version! Please read about the 123/TUNE+-4-R-V-Renault here.

Please read the installation manual carefully. It contains more information about static timing and the advance-curves, the specifications of the 123-ignition and a step-by-step description of the installation procedure.

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the High Energy Coil 2020.

Perhaps you'll also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in combination with the 123ignitions we offer. See: the spark plugs list.

Complete set

Now you can also order the complete set for your Renault Cleon engine in one go, such as in the Renault 4, Renault 5, 4F4, 4F6, Renault Estafette, Volvo 343 and the DAF 55: a 123/Renault-4-RV distributor + Bosch Blue ignition coil + set of 4 spark plugs WR7BC + spark plug wires

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

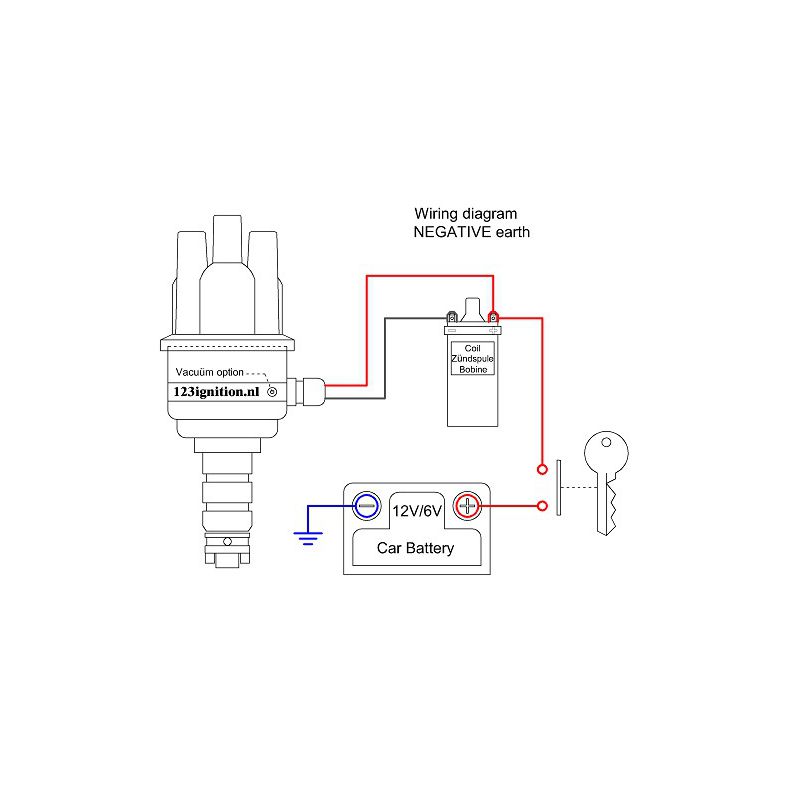

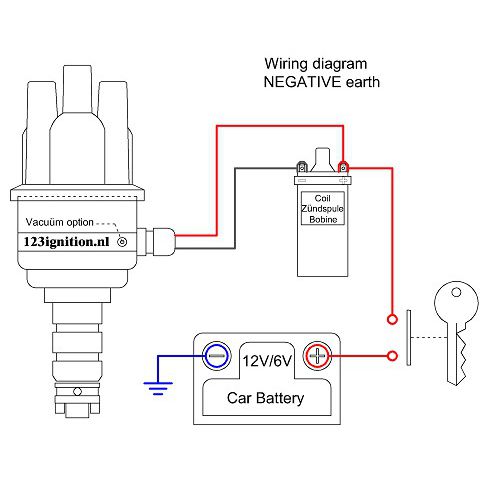

Wiring
red +6V of +12V, black - coil
Grade
2020-09-02

1984 Renault 4 GTL 123 Ignition

Schnelle und problemlose Montage und Einstellung. Motor läuft jetzt ruhig und zieht durch.

Grade
2020-01-21

Ontsteking heftruck

Prima advies, snelle levertijd,
Goede after sales

Grade
2019-11-13

DAF55 met 1.4 motor

Mooie kwaliteit, heel veelzijdig (veel curves aanwezig) en installeerd heel makkelijk. Let alleen op dat de body lijkt iets breder dan de orginele verdeler, zo bougie 2 en 3 zijn wat lastiger te bereiken.

Grade
2016-02-03

Plug and play

Zondagavond besteld. Gisteren binnen.
Vandaag geïnstalleerd.

Netjes de gebruiksaanwijzing gelezen en vervolgens erin gezet.
Echt plug and play. Alleen even wat oogjes op de draadjes moeten zetten voor het contact met de bobine.

Sleutel omdraaien en direct lopen. Moest alleen de timing even finetunen met de stroboscoop.
Motor loopt nu heel rustig. Ook op toeren.

  • 1 out of 1 people found this review useful.
Grade
2016-02-03

good piece of equipment

ARRIVED IN GOOD TIME, I HAD PROBLEMS INSTALLING THE 123 AND I PUT OUT THE TIMING TRYING TO INSTALL IT.

ENDED UP TAKING IT TO A GARAGE THEY CHARGED ME 38 EURO NOW EVERY THING IS GREAT AND I AM HAPPY WITH THE 123

Grade
2016-02-03

Works fine with Volvo 66

Tested and works fine with Volvo 66GL 1975 with Renault based B130 engine. Advance setting should be set to C and main advance to 3 degrees, NOT 6 as with old distributor.

Should work fine with B13.0S and BB110 too if basic advance is set to 0 degrees.

Highly recommended! 100% fit!
