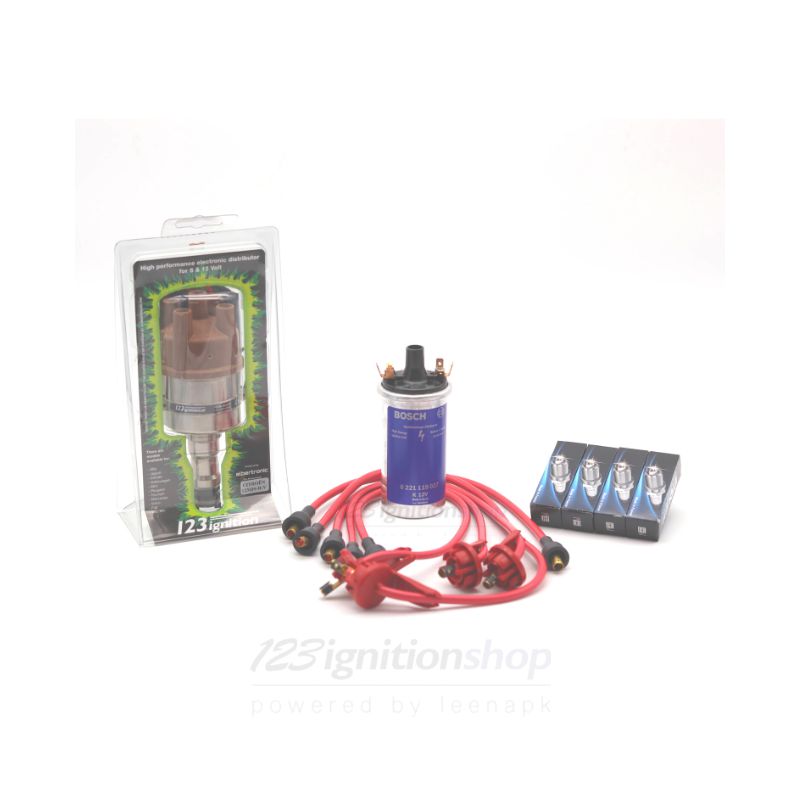

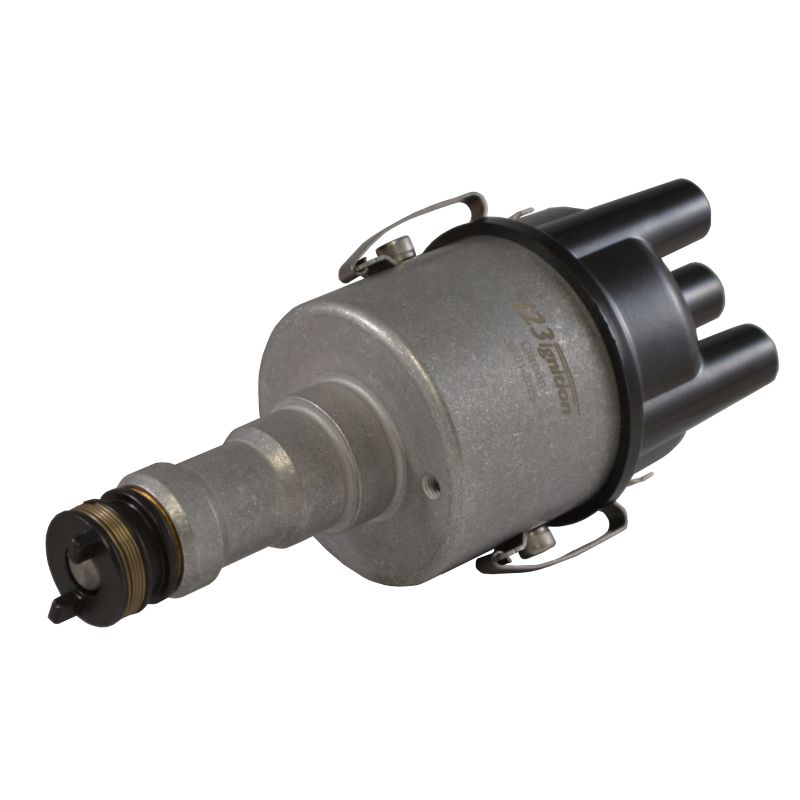

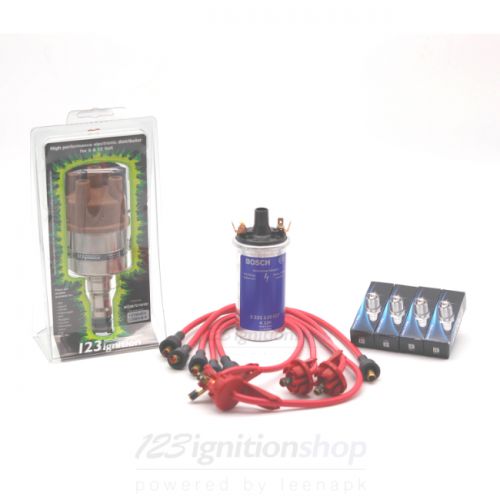

Now all in one order: a 123/DS-R-V distributor + coil + set of 4 spark plugs + spark plug wires.
123ignition Traction Avant complete system
€475.00
Instead of €483.00
VAT included
Now all in one order: a 123/DS-R-V distributor + coil + set of 4 spark plugs + spark plug wires.
This set is suitable for 4-cylinder Traction Avant engines and is intended for 6V systems. If your car has a 12V system, please add the note "12V coil please" when placing your order.

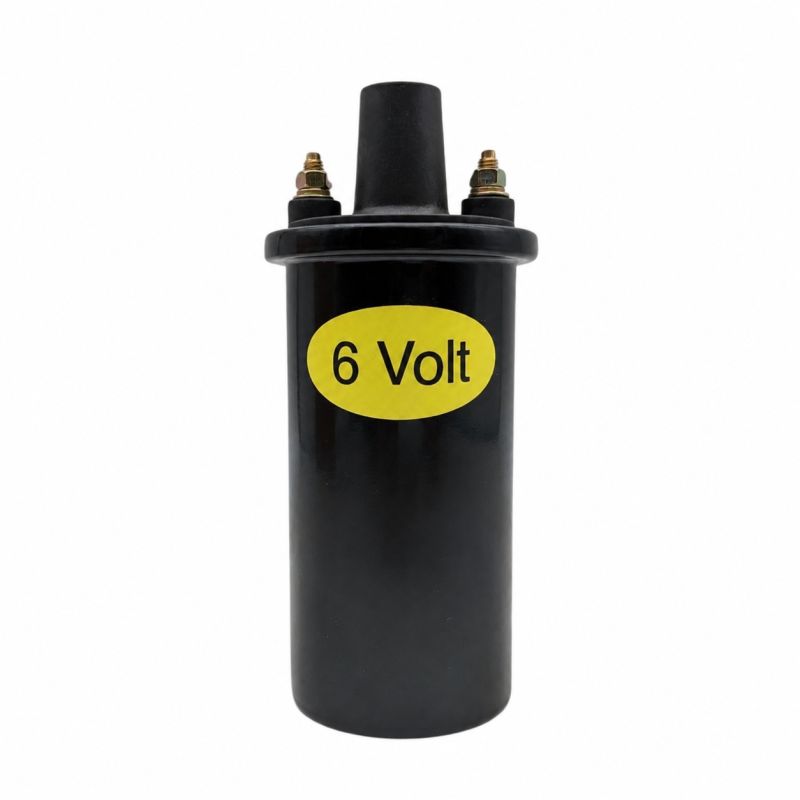

Because old ignition coils have often been subjected to overheating, this set includes a new ignition coil.

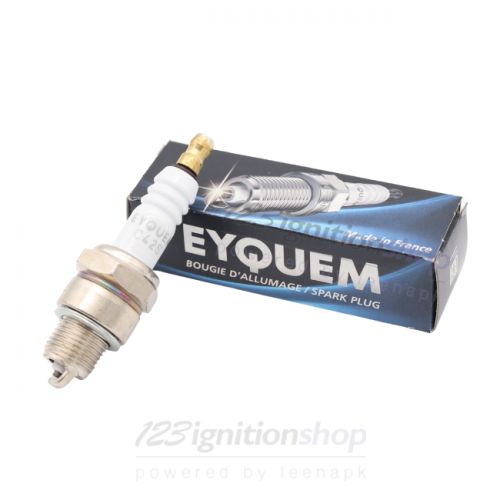

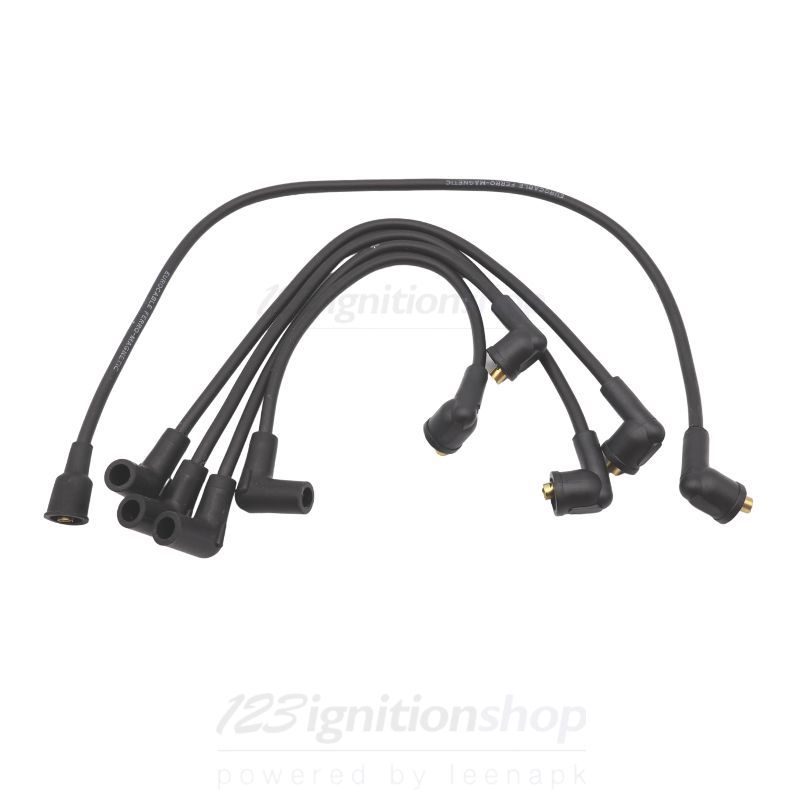

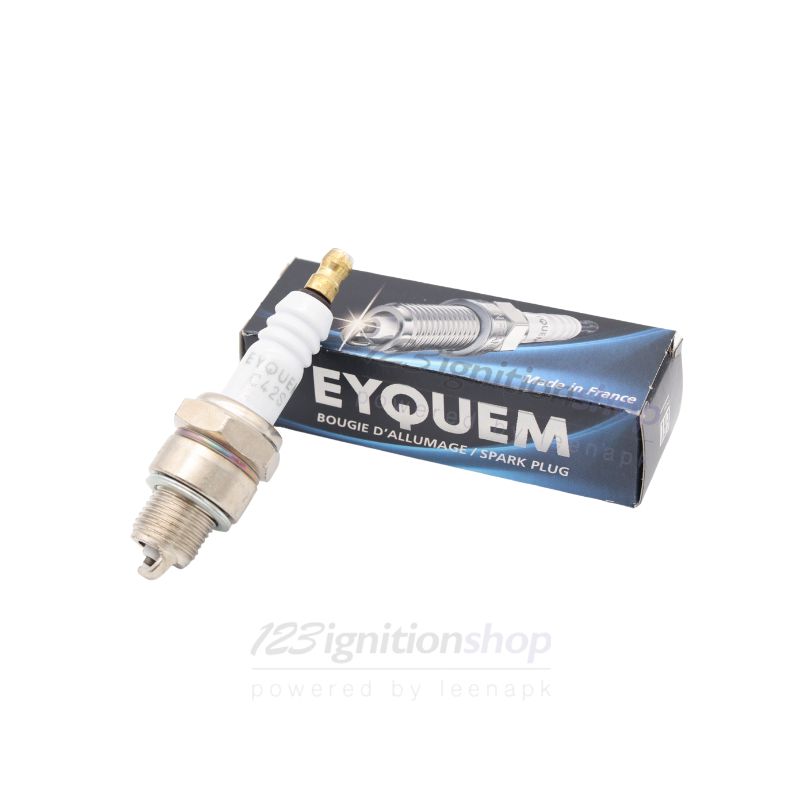

A new set of ignition leads and a set of 4 spark plugs are also included.
Please read the installation manual carefully. The manual contains further information about engine and distributor numbers, ignition timing and advance curves (often on the last page), as well as the specifications of the 123ignition. It also explains the installation procedure of the 123ignition system step by step.
TRACTION
Data sheet
- Cylinders
- 4
- Direction of rotation
- CW/CCW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 10.000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- With vacuum, also works without when not connected.
- Max. Advance
- 40 degr. crankshaft

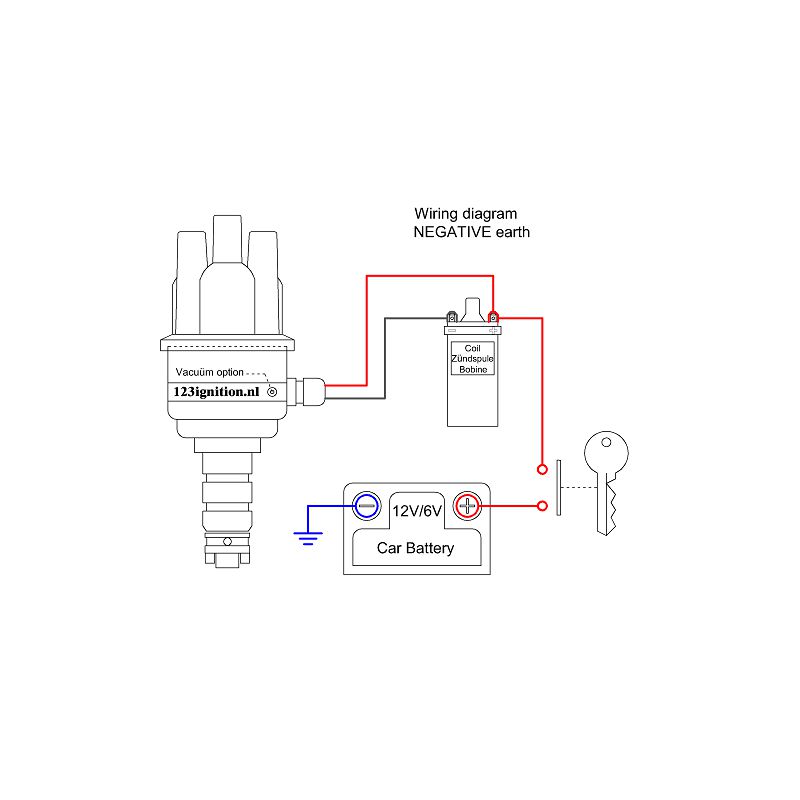

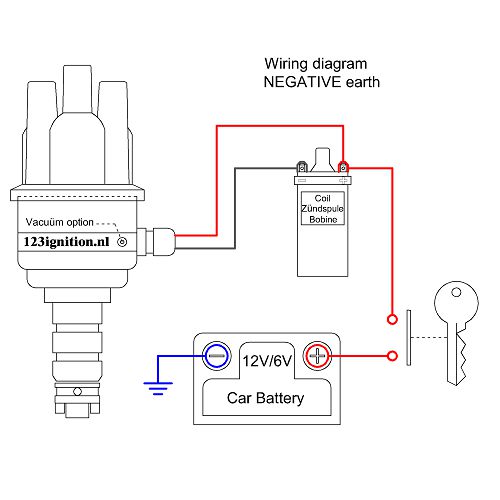

- Wiring
- red +6V of +12V, black - coil
