123/B21-B23-R-V

€389.00
VAT included

The 123/B21-B23-R-V is designed for the Volvo B17, B19, B21, B23 and B230F engines, not only for classic cars like the Volvo 242, 244, 245 etc but also for the trucks and boats (Volvo Penta). This 123 offers advance-curves for B17 - B25 Volvo & Volvo Penta engines including turbo engines. Even a couple of optimised LPG/Ethanol-curves are available.

Quantity
In stock

123/B21-B23-R-V distributor for the Volvo B17, B19, B21, B23 and B230F engines

The 123/B21-B23-R-V is designed for the Volvo B17, B19, B21, B23 and B230F (not the B230E) engines, not only for classic cars like the Volvo 242, 244, 245 etc but also for the trucks and boats (Volvo Penta).
The 123 offers advance-curves for B17 - B25 Volvo & Volvo Penta engines including turbo engines. This is the result of thorough research in the original Volvo-workshop manuals. Even a couple of optimized LPG/Ethanol-curves are available.

Features of the 123/B21-B23-R-V electronic ignition

Like other 123ignitions the 123/B21-B23-R-V offers:
- Vacuum-advance,
- Automatic dwell,
- Automatic power cut after 1 second,
- Gear shift retard,

Please note about the 123/B21-B23-R-V 123ignition

If you want to tune your engine, we've got great news for you: this product is also available in a 123/TUNE+ version! Please read about the 123/TUNE+-4-R-V-B21B23 here.

Please read the installation manual carefully. It contains more information on the motor- and distributor numbers, static timing and the advance-curves, the specifications of the 123ignition and a step-by-step description of the installation procedure.

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the 123 Blue Coil.

Perhaps you'll also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in combination with the 123ignitions we offer. See: the spark plugs list.

Complete set

The 123/B21-B23-R-V can now also be ordered in one go in the following set:

The set consists of:

  • 123/B21-B23-R-V distributor
  • 123 Blue Coil
  • set of 4 spark plugs WR7DC
  • spark plug wires

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

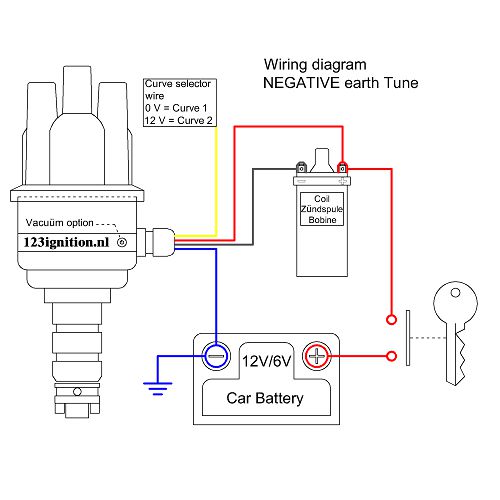

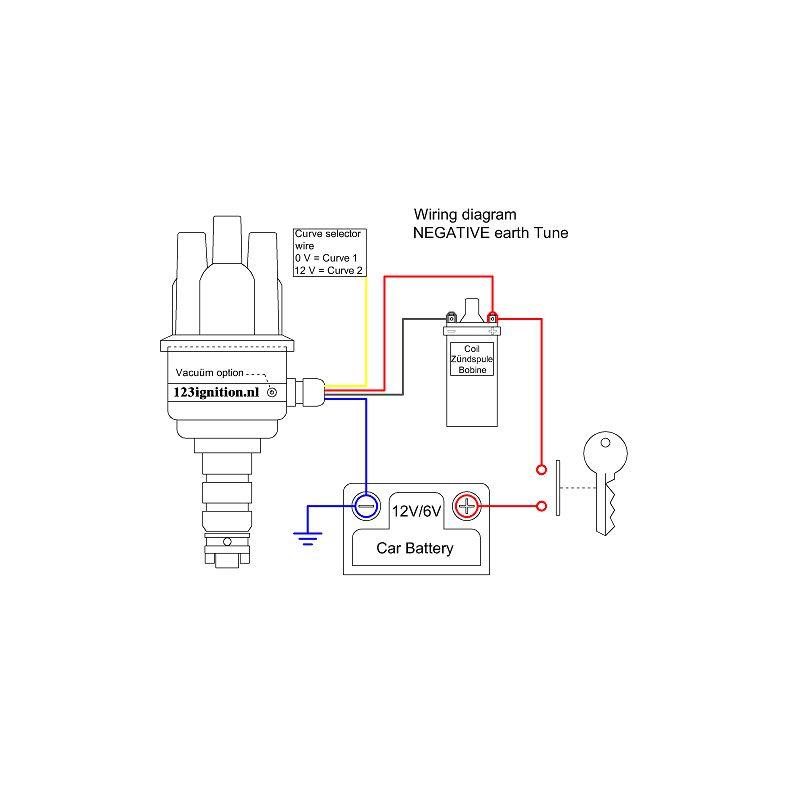

Wiring
red +6V of +12V, black - coil
Grade
Rolf Boomsma 2019-11-05

Ontsteking elektronisch

Werkt perfect!

Grade
alex hamza 2017-10-27

123/B21-B23-R-V for volvo 244 b21a

very good product for classic cars maintenance free after setting, work perfect

Grade
KTK 2017-09-06

123 ignition

Vert good investment.I use It in a Volvo B23 in a boat.

  • 1 out of 1 people found this review useful.
Curve Advance starts
(rpm crankshaft)
Max. advance
(rpm / degree crankshaft)
Vacuum advance
starts (mmHg)
Vacuum advance
ends (mmHg / degr.)
Replaces Remark
0 1000 4500 / 30,0 200 400 / 14,0 BOSCH 0231170134, 0231178010 VOLVO B21/23 PENTA
1 1000 3800 / 26,0 200 400 / 14,0 BOSCH 0231178016, 0231178017, 0231178018 & 0231178019 VOLVO AQ131, AQ150
2 1000 3000 / 25,0 150 400 / 14,0 BOSCH 0231170185, 0231170284 VOLVO
3 1000 5000 / 25,0 150 400 / 14,0 BOSCH 0231170287 VOLVO
4 1000 4000 / 25,0 150 400 / 14,0 BOSCH 0231170302 VOLVO
5 1000 4000 / 30,0 150 400 / 10,0 BOSCH 0231176103 VOLVO
6 1000 6300 / 29,0 150 400 / 14,0 BOSCH 0237002001, 0237002017 VOLVO
7 1000 4800 / 23,0 150 400 / 14,0 BOSCH 0237003027, 0237003024 VOLVO
8 1000 5000 / 29,0 150 400 / 14,0 BOSCH 0237003003, 0237003009 VOLVO
9 1000 4000 / 28,0 150 400 / 14,0 BOSCH 0237002038 VOLVO
A 1000 4800 / 22,0 150 400 / 10,0 BOSCH 0237002007 VOLVO
B 1000 4500 / 30,0 200 400 / 14,0 BOSCH 0231170134, 0231178010 VOLVO LPG/E85
C 1000 4000 / 30,0 100 300 / 10,0 BOSCH 0237002001, 0237002017 VOLVO LPG/E85
D 1200 4800 / 22,0 100 400 / 20,0 BOSCH 230FH-MODULE VOLVO
E ---
F ---
