123/B16-R-V

€280.17
VAT excluded

The 123/B16-R-V is designed for the stock and tuned Volvo B4B, B14A, B16-A and B16-B engines, not only for classic cars (PV444, P1900, PV544, P445, P210 and the Volvo Duett), but also for trucks and boats, Volvo Penta.

Distributor cap
Quantity
In stock

123/B16-R-V distributor for Volvo B4B, B14A, B16-A and B16-B engines

The 123/B16-R-V is designed for the stock and tuned Volvo B4B, B14A, B16-A and B16-B engines, not only for classic cars (PV444, P1900, PV544, P445, P210 and the Volvo Duett), but also for trucks and boats, Volvo Penta.

Features of the 123/B16-R-V electronic ignition

The unit offers optimized LPG/Ethanol-curves for B4B, B16-A en B16-B engines. With a switch you can easily choose the advance-curve that is specified for your specific engine. The unit offers a built-in LED for easy static timing and several different advance-curves.

It also offers:
- Vacuum advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note about the 123/B16-R-V 123ignition

Please read the installation manual carefully. It contains more information on the type of engine, static timing and the advance-curves, the specifications of the 123-ignition and a step-by-step description of the installation procedure.

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the High Energy Coil 2020.

Perhaps you'll also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in combination with the 123ignitions we offer. See: the spark plugs list.

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

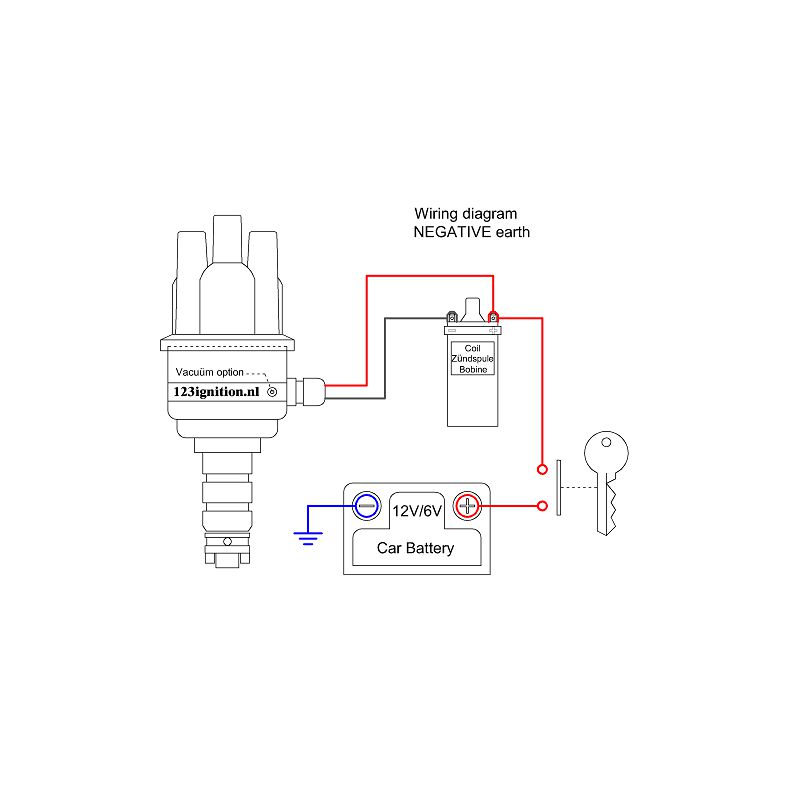

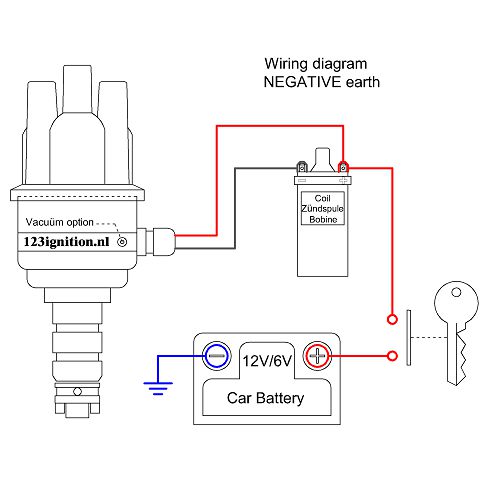

Wiring
red +6V of +12V, black - coil
