• Pack

123/B30-R-V-IE complete system

€409.09
VAT excluded

Complete ignition set for your Volvo B30 engines as used in Volvo 164, Marcos 3000GT, Volvo C303, Volvo Penta AQ165/AQ170. It fits cars, trucks and boats (VOLVO PENTA).

Complete 123ignition system set for Volvo B30

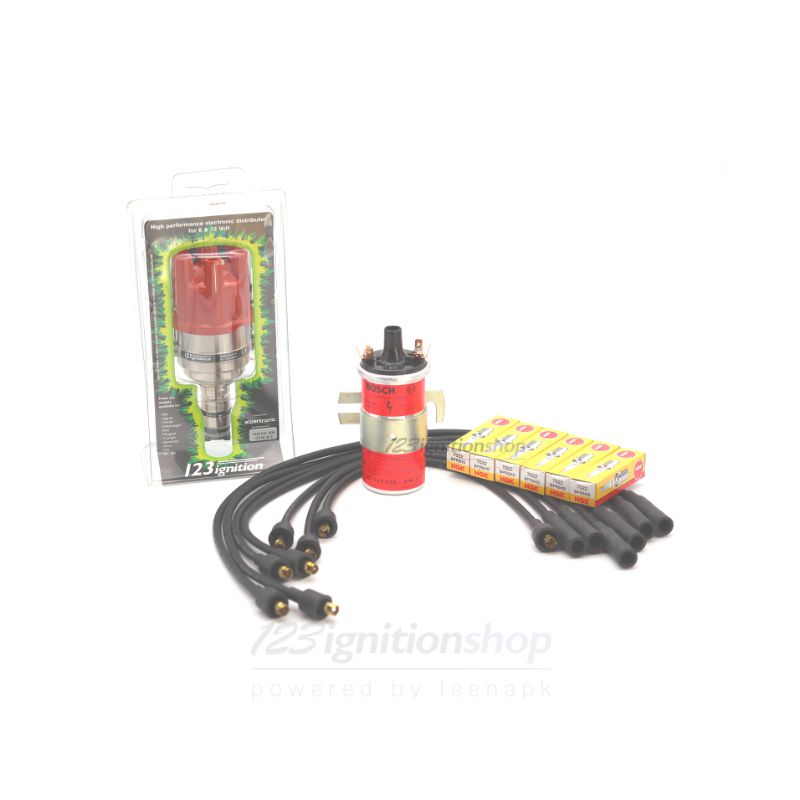

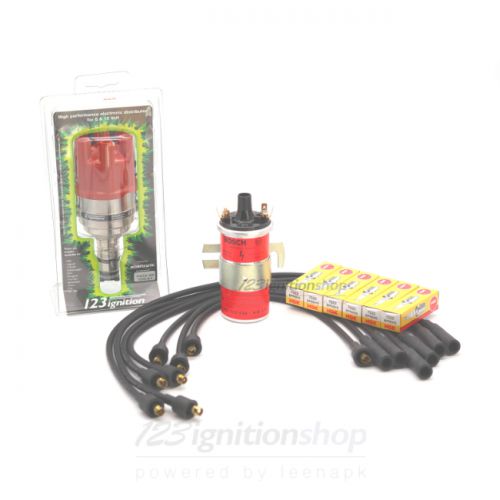

Now all parts in one order: a 123/B30-R-V-IE distributor + coil + set of 6 spark plugs + spark plug wires.

Content of the 123/B30 ignition set

The 123/B30-R-V-IE is designed for Volvo 164, Marcos 3000GT, Volvo C303, Volvo Penta AQ165/AQ170 is a unit that fits the B30 6 cylinder Volvo carburetor and fuel injection engines. It fits cars, trucks and boats (VOLVO PENTA).
It has advance curves for B30-A, B30-E, B30-F, B30-VALP & B30-Penta engines. The unit also offers optimized LPG/Ethanol-curves for each engine.

As used coils often were exposed to overheating in the past, the set contains a High Energy #2020 coil.

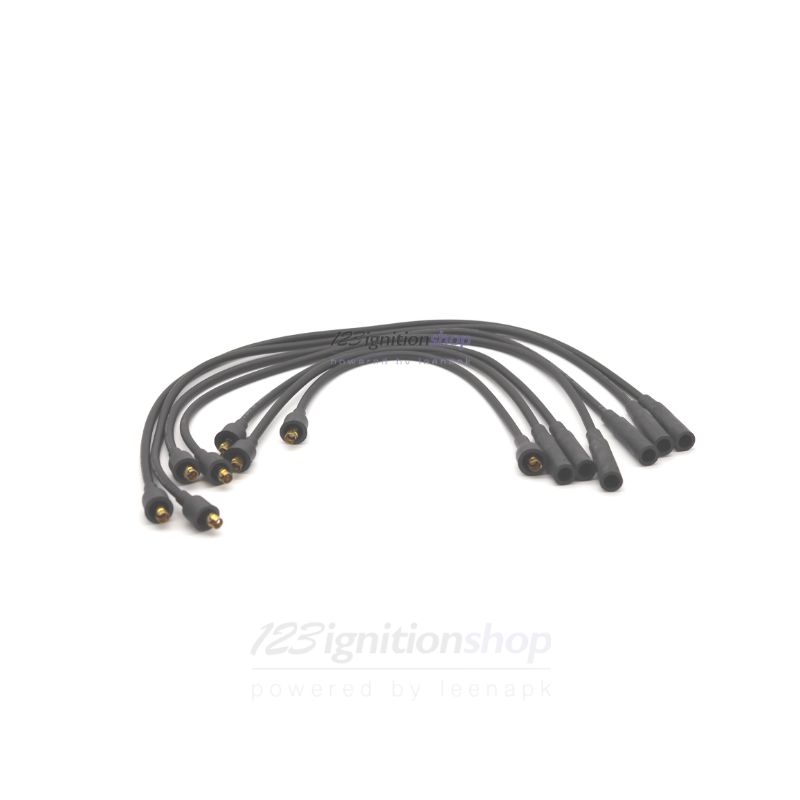

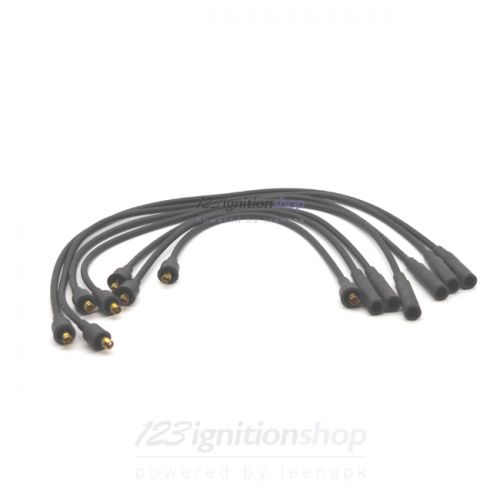

This set also offers 6 spark plugs and new spark plug wires.

Please note about the 123/B30 set

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance curves, the specifications of the 123ignition and a step-by-step description of the installation procedure.

4025

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Optional. When not used, leave unconnected
Max. Advance
45 degr. crankshaft

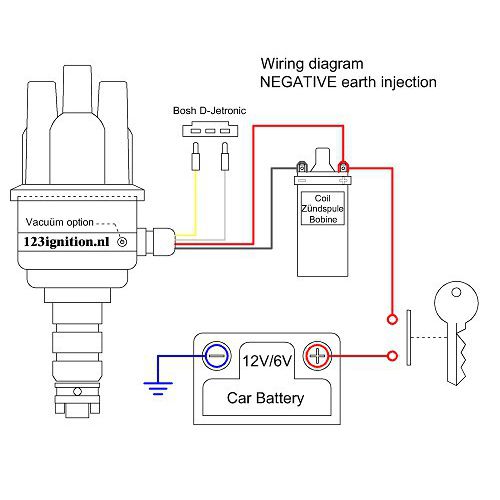

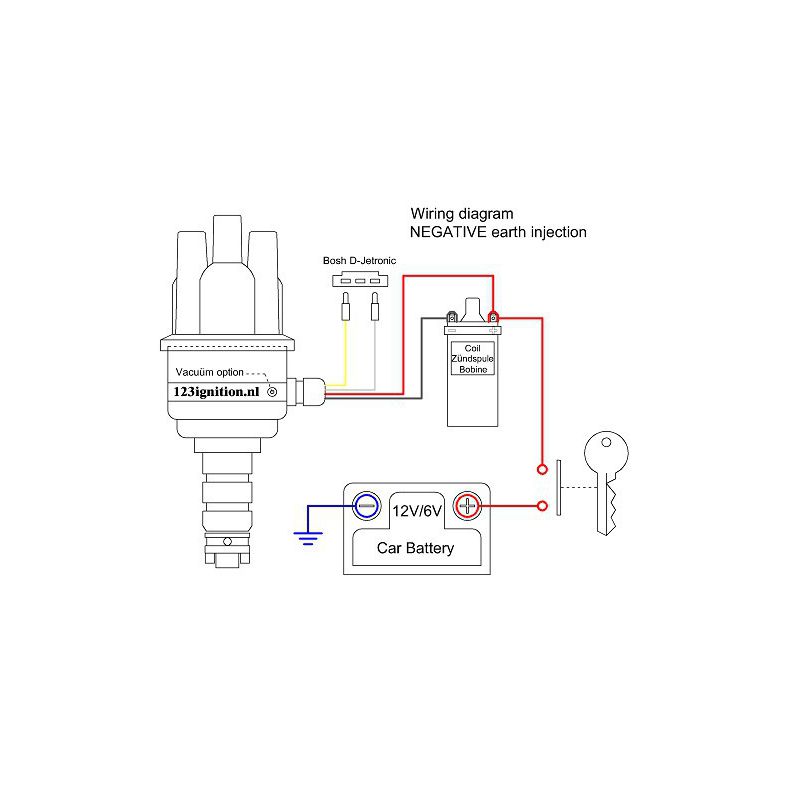

Wiring
red +6V of +12V, black - coil
