Now all in one order:a 123/TUNE-Porsche-911-B (USB) distributor + ignition coil + set of 6 spark plugs + spark plug cables!
123/TUNE-Porsche-911-B (USB) complete system
€849.00
Instead of €882.00
VAT included
Now all in one order:a 123/TUNE-Porsche-911-B (USB) distributor + ignition coil + set of 6 spark plugs + spark plug cables!
The 123/Porsche-911-B distributor has been developed for Porsche 911 (2.4 - 2.7 and 3.3 liter, up to september 1977).

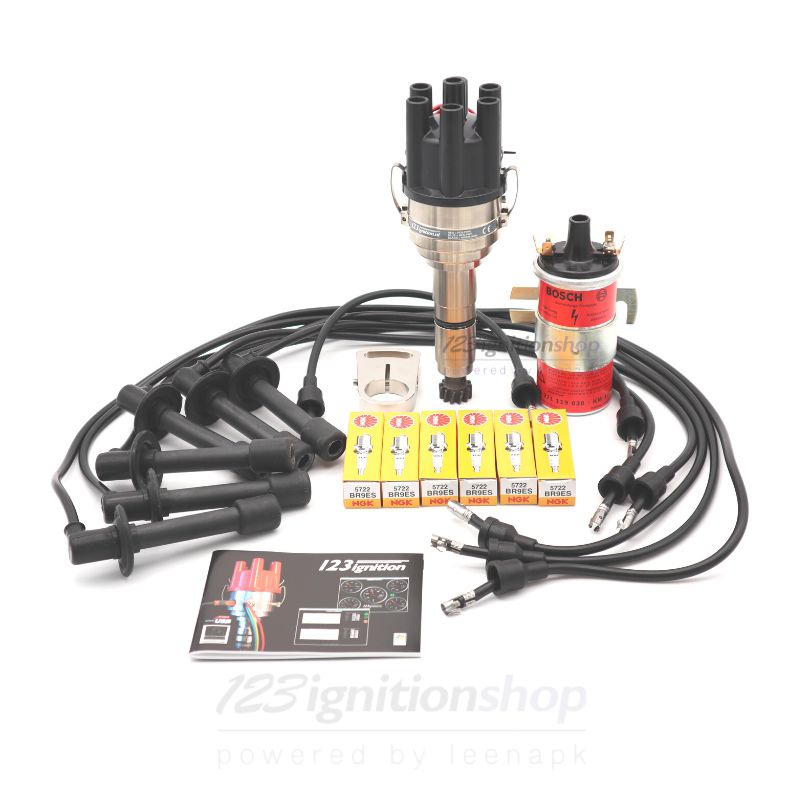

The set includes:
- 123/TUNE-Porsche-911-B (USB)
- High Energy #2020 Coil

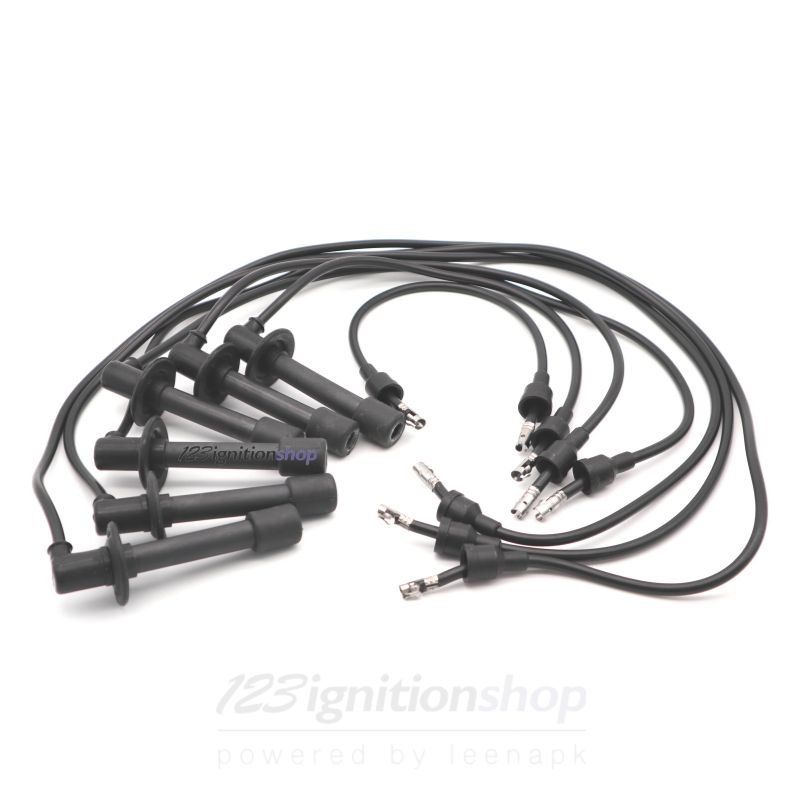

- Spark plug wires

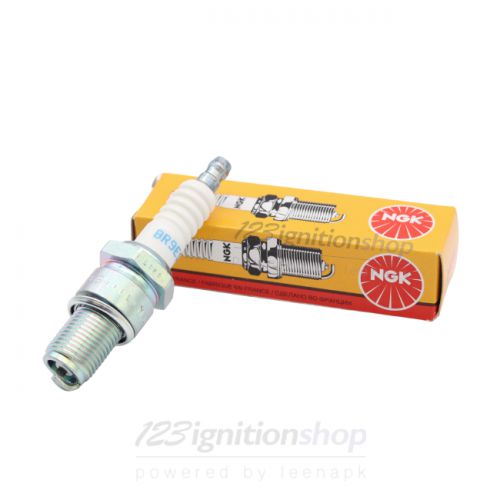

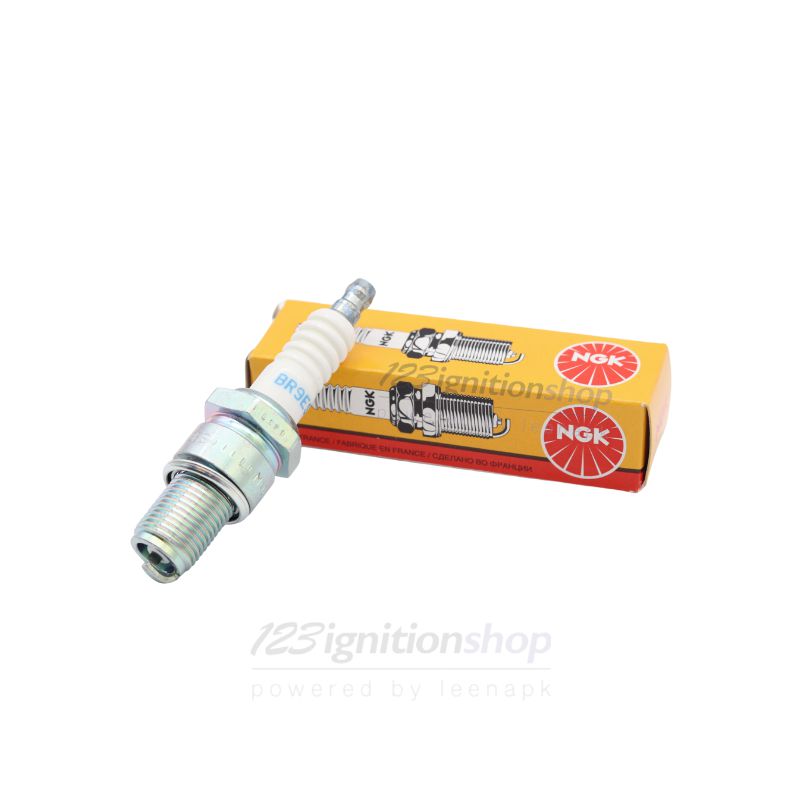

- 6 Spark plugs NGK BR9ES
B309
Data sheet
- Cylinders
- 6
- Direction of rotation
- CW
- Voltage
- 4,0 - 15,0 volts
- Range
- 500 - 8000 rpm
- Temperature
- -30 to 100 Celsius
- Coil
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Dwell
- Constant current, fully automatic
- Time-out
- After 1 second current is switched off
- Accuracy
- Less than 0,5 degr. crankshaft
- Vacuum
- Programmable: -20 / +20 degrees.
- Max. Advance
- 45 degr. crankshaft
- Wiring

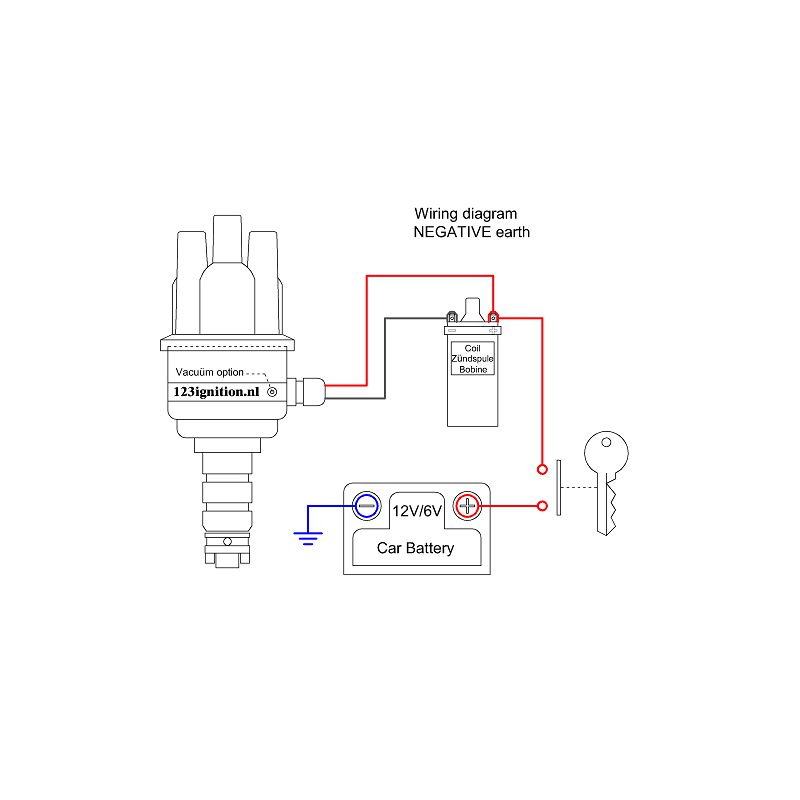

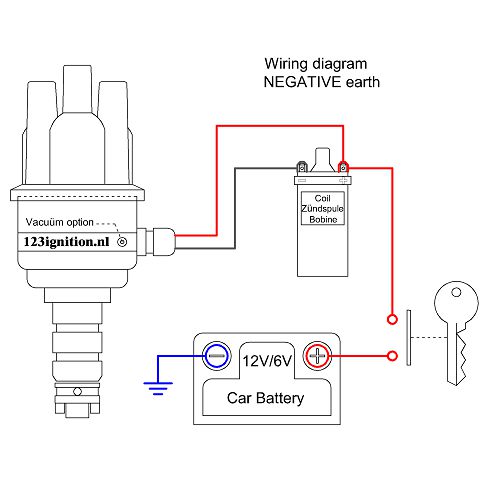

- red +6V or +12V, black '-' ignition coil, blue chassis ground, yellow curve selector
- Earth type
- Suitable for negative and positive earth systems
- Curve
- Programmable via USB cable with Windows PC Software
