• Pack

123/TUNE+ 6-R-V-V6 complete system for Capri

€549.59
VAT excluded

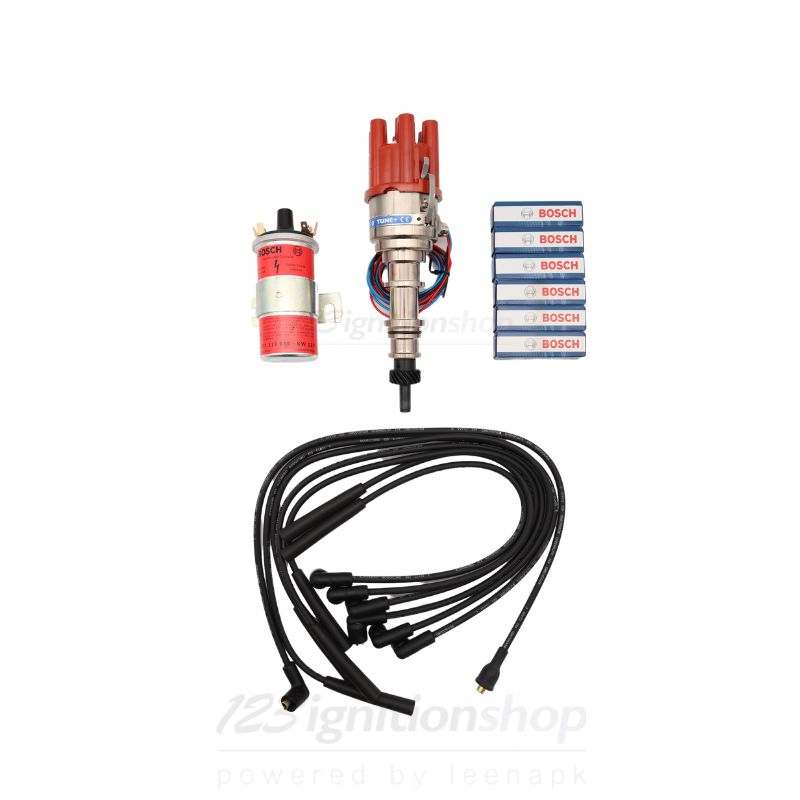

Now all parts in one order: a 123/TUNE+ 6-R-V-V6 distributor + ignition coil + set of 6 spark plugs + spark plug cables!

Get it on Google Play Download on the Apple Store

Complete electronic ignition set for a Ford Capri V6.

Now all parts in one order: a 123/TUNE+ 6-R-V-V6 distributor + ignition coil + set of 6 spark plugs + spark plug cables!

Contents of the set

  • The 123/Tune+ 6-R-V-V6 is specially designed for 6 cylinder Mercedes W114 engines WITH vacuum advance.
  • Because old ignition coils have often been overheated, a High Energy #2020 coil is included in this set.

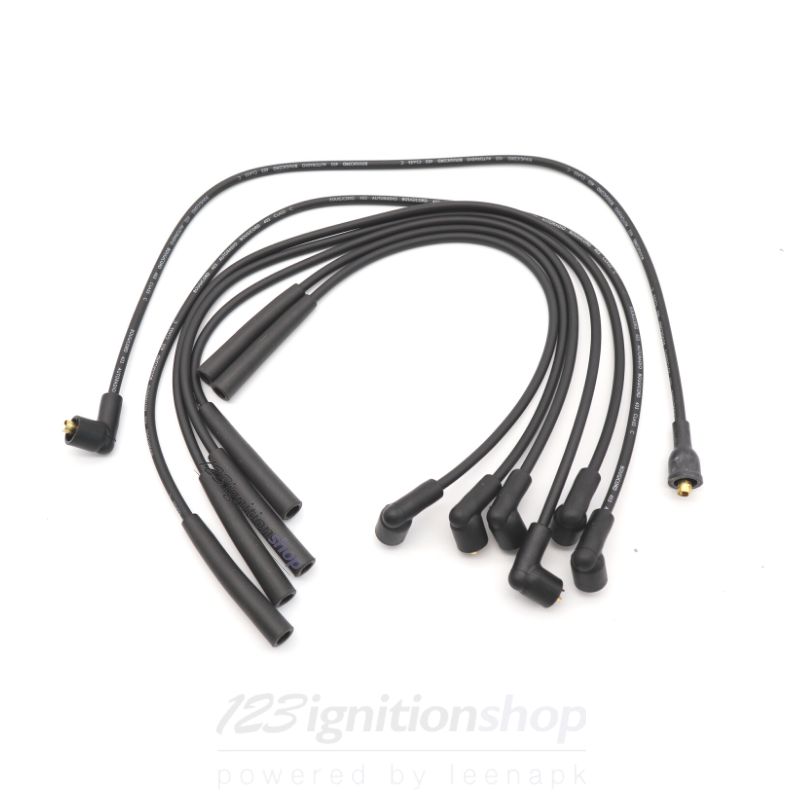

  • A set of 6 spark plugs and spark plug wires have also been added.

Attention points with the 123/TUNE+ 6-R-V-V6 electronic ignition

The spark plug wires are suitable for (check the length of the wires):

Ford:

  • CAPRI (ECJ) 2300 08.69 - 02.74
  • CAPRI (ECJ) 2300 TV 23 H 02.69 - 02.74
  • CAPRI (ECJ) 2600 UY 08.70 - 02.74
  • CAPRI (ECJ) 2600 RS OZ 08.70 - 02.74
  • CAPRI (ECJ) 3000 01.70 - 12.71
  • CAPRI (ECJ) 3000 01.72 - 12.72
  • CAPRI (ECJ) 3000 01.73 - 12.73
  • CAPRI (ECJ) 3000 HY 08.72 - 02.74
  • CAPRI II (GECP) 2.3 YYE 02.74 - 12.77
  • CAPRI II (GECP) 3.0 02.74 - 12.77
  • CAPRI II (GECP) 3.0 HYF 02.74 - 12.77
  • CAPRI III (GECP) 2.3 Super YYN 06.79 - 12.85
  • CAPRI III (GECP) 2.8 i Turbo PYN 01.82 - 04.87
  • CAPRI III (GECP) 2.8 Super Injection PRN 01.81 - 04.87
  • CAPRI III (GECP) 3.0 01.78 - 12.81

About the 123/Tune+ 6-R-V-V6

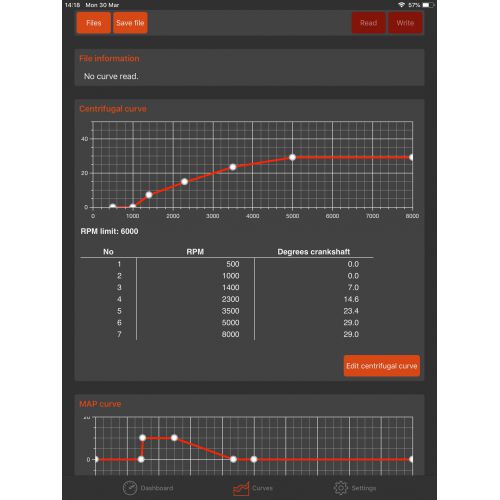

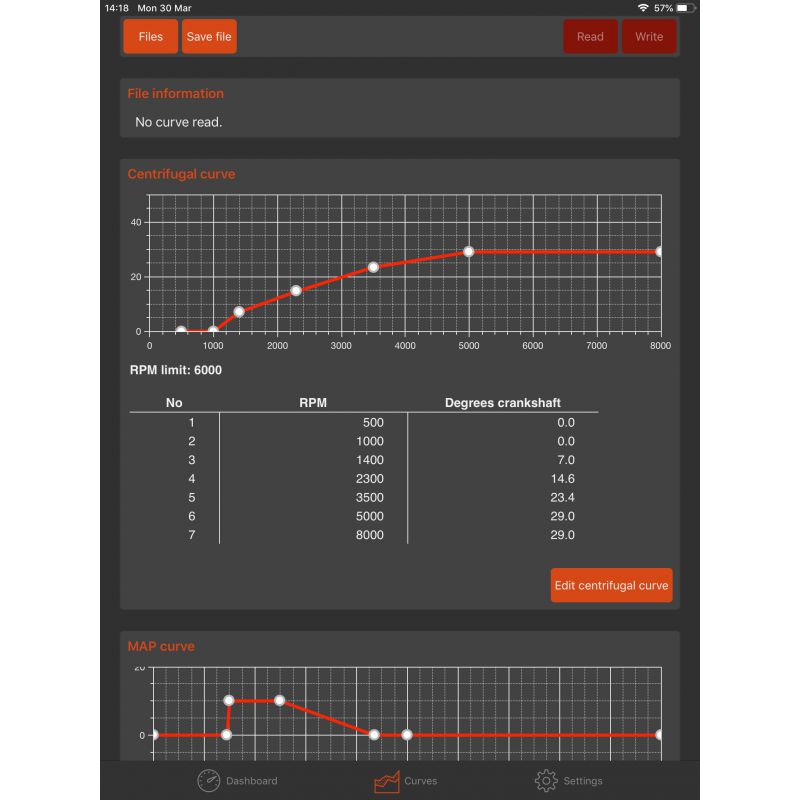

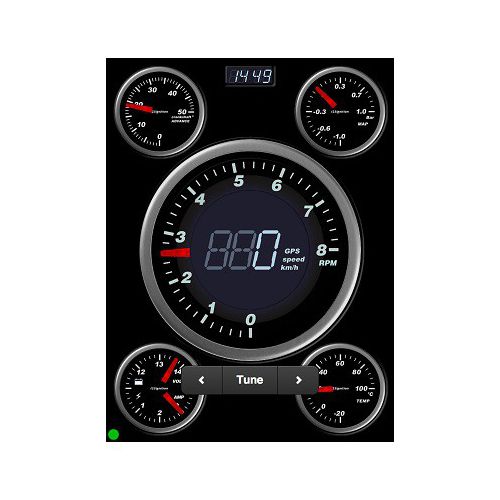

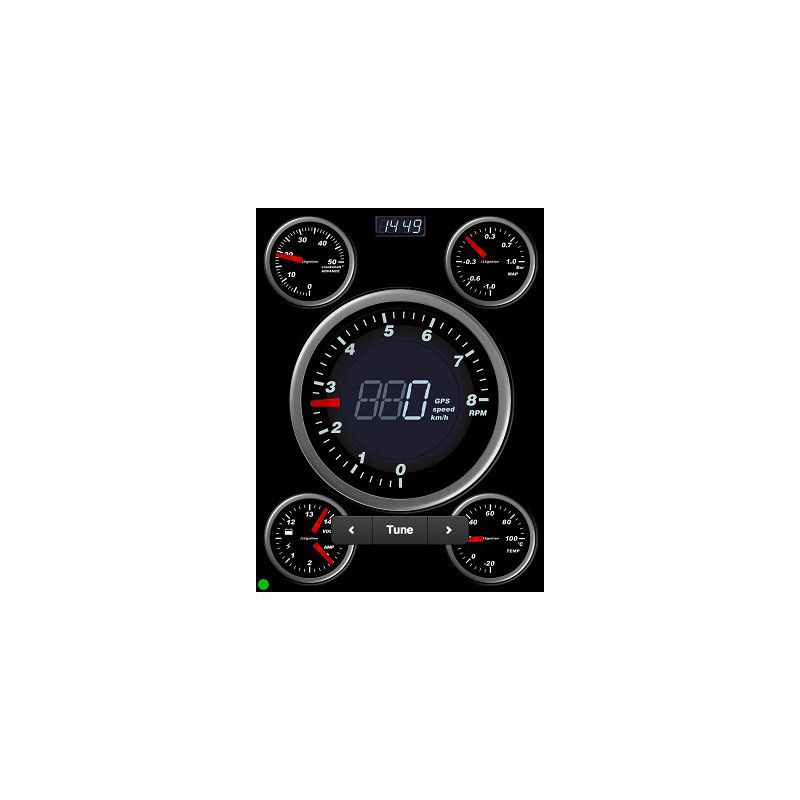

Tuning your engine using your own tablet or smartphone? The TUNE+ is the first wireless electronic ignition that you can program yourself using your iOS or Android Bluetooth 4.0 devices. The free app enables you to adjust the advance curve. It shows an electronic dashboard. Within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!

The "V6" model will replace most distributors, as used by Ford Cologne engines in f.e. Ford Taunus, Granada, Consul and Ford Capri (please check dimensions before ordering). The 123/TUNE+ 6-R-V-V6 for 6 cylinders comes with an upright cap.

For more information about this ignition like the features and installation, please click here.

7125

Data sheet

Cylinders
6
Direction of rotation
CW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft

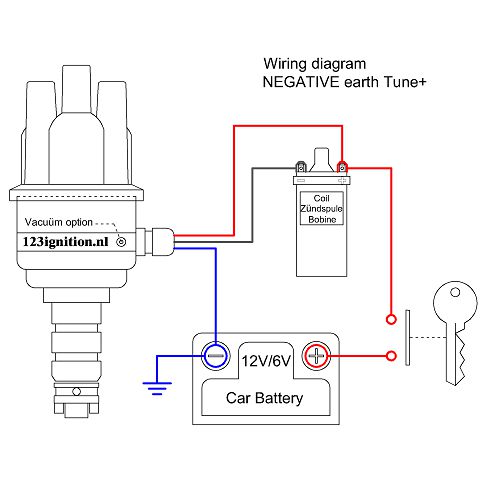

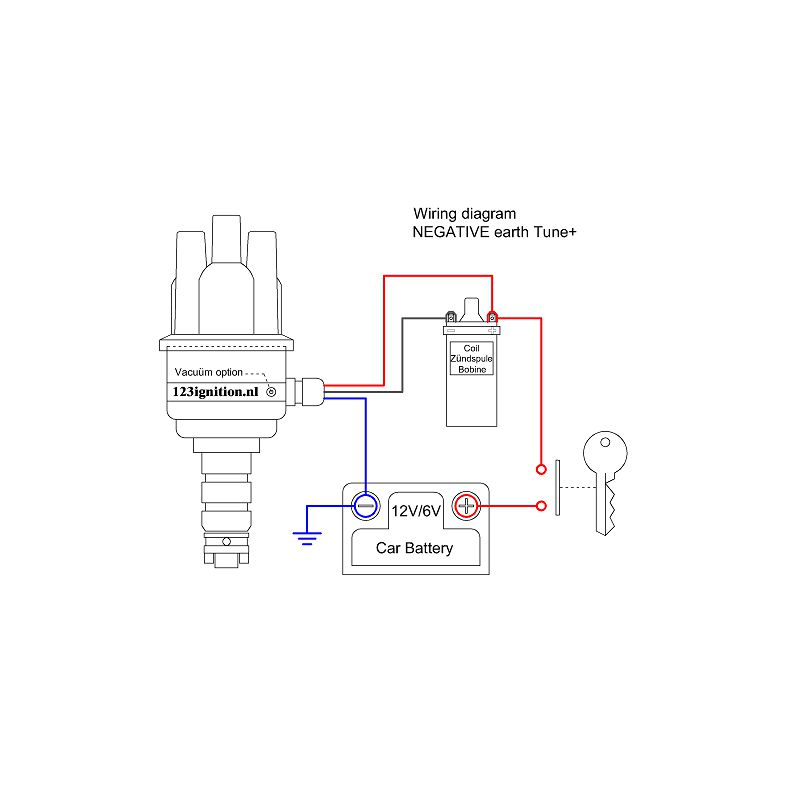

Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
