Visa 123/TUNE+ Ignition system

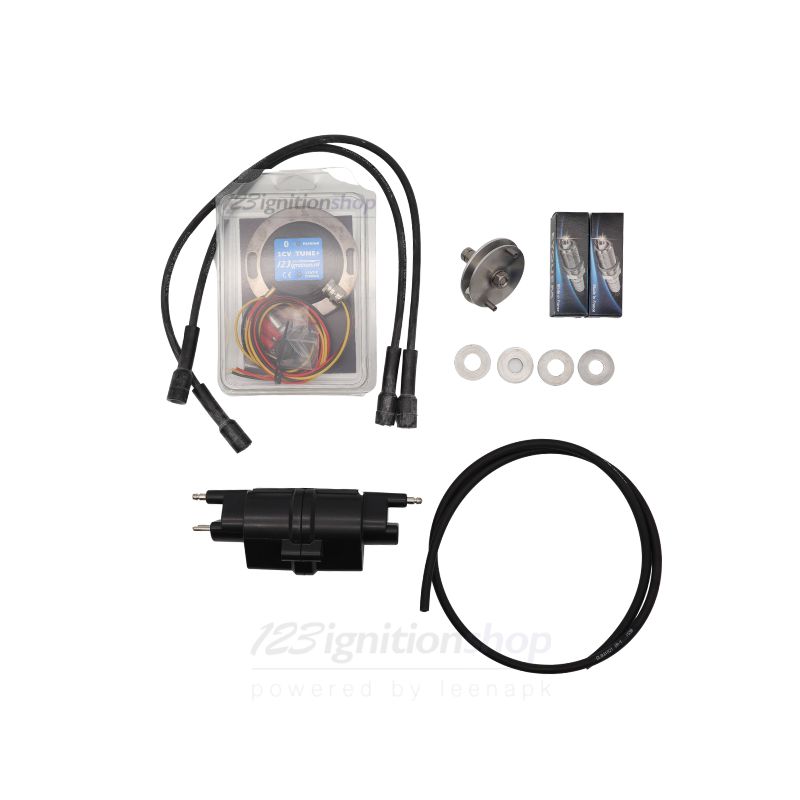

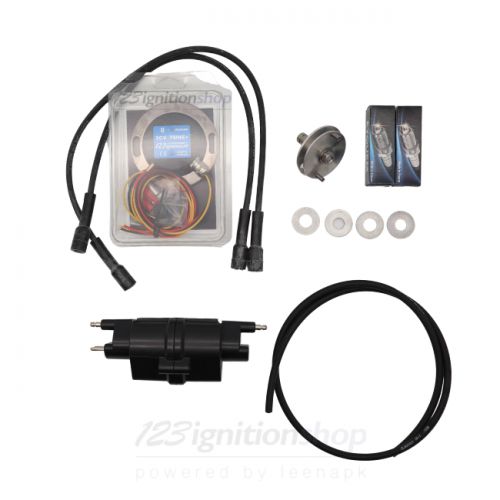

For your Visa engine, now all in one order: a 123/TUNE+ 2CV distributor + vacuum hose + adaptor + distance rings +high efficiency coil + set of 2 spark plugs + spark plug wires.
For your Visa engine, now all in one order: a 123/TUNE+ 2CV distributor + vacuum hose + adaptor + distance rings + high efficiancy coil + set of 2 spark plugs + spark plug wires.
The TUNE+ 2CV model will replace all distributors as used in 2 cilinder Citroën models, including the one in the Visa (the Visa Adapter).
As used coils often were exposed to overheating in the past, the set contains the specially developed high efficiency 2CV coil.
This set also offers 2 spark plugs and new spark plug wires.
Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
- Direction of rotation
- 4,0 - 15,0 volts
- 500 - 8000 rpm
- -30 to 100 Celsius
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Constant current, fully automatic
- After 1 second current is switched off
- Less than 0,5 degr. crankshaft
- Programmable: -20 / +20 degrees.
- Max. Advance
- 45 degr. crankshaft

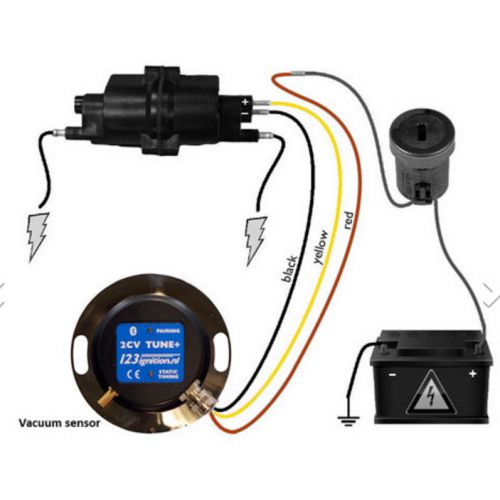

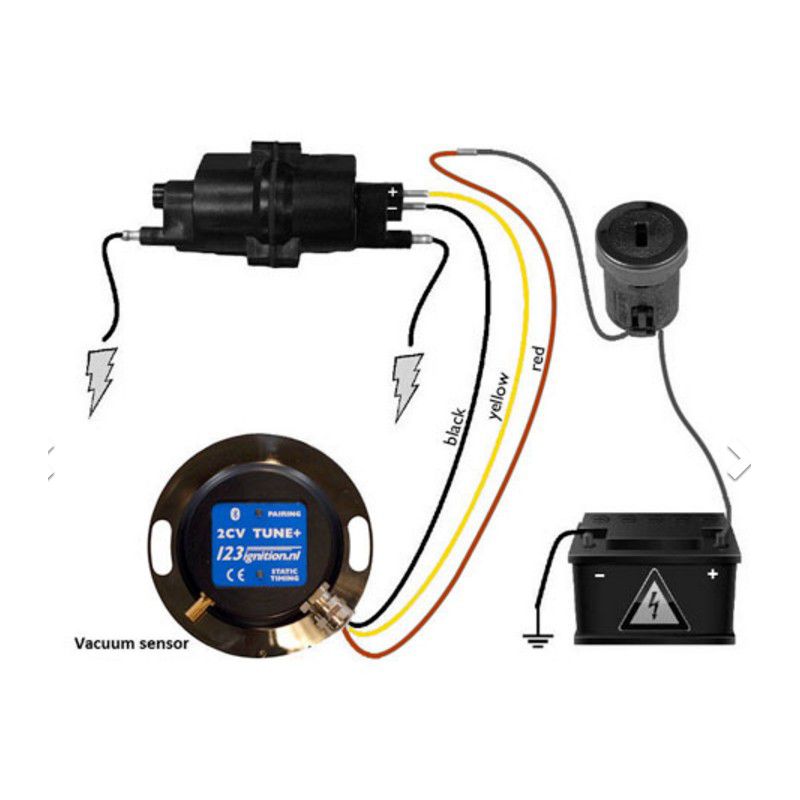

- red +6V or +12V, black '-' ignition coil, blue chassis ground
- Earth type
- Suitable for negative and positive earth systems
- Wirelessly programmable with Android or iOS app
