123/TUNE-6-R-V-M, replaces Bosch distributors in Mercedes (USB version)

€435.00
VAT included

Programming your ideal advance curve? The 123/TUNE ignition enables you to do so. Just using a (shielded) USB cable and notebook. So if you want to tune your engine or have an engine that does not have a standard distributor available... the 123/TUNE can help you out. You can easily setup the 123/TUNE to fulfill even the most demanding requirements.

The "M" model will replace most Bosch distributors, for example used in Mercedes (please check dimensions before ordering). The 123/TUNE-6-R-V-M for 6 cylinders comes (only) with an upright cap.

Quantity
Ships within 1 week

Download for Windows

123/TUNE the USB programmable electronic 123ignition

Programming your ideal advance curve? The 123/TUNE ignition enables you to do so. Just using a (shielded) USB cable and notebook. So if you want to tune your engine or have an engine that does not have a standard distributor available... the 123/TUNE can help you out. You can easily setup the 123/TUNE to fulfill even the most demanding requirements.

The unit offers two sets of curves that can be selected by placing power on the yellow wire from the 123/TUNE. By using this function you will be able to switch between two pre-programmed curves without having to use a computer. Particularly apt when you are (also) driving on LPG.

Model "M" for Bosch distributors

The "M" model will replace most Bosch distributors, for example used in Mercedes (please check dimensions before ordering). The 123/TUNE-6-R-V-M for 6 cylinders comes with an upright cap.

Features of the 123/TUNE-6-R-V-M

- Rotation CW and CCW (autodetect)
- For 6 Volt and/or 12 Volt cars (autodetect)
- For positive and negative grounded cars
- Variable dwell constant current, fully autom. (autodetect)
- Coil current protection time-out after 1 second (autodetect)

- Two centrifugal advance curves (500 to 8000 rpm)
- Two vacuum-advance and boost-retard curves (0 to 200 kPa or -30 inHg to +15 psi) with MAP-start fields
- Two rev. limiters (advanced random spark stealing)
- Real-time tuning under keyboard-control (ideal for working on a rolling road)
- Rpm-stopwatch (ideal for tuning using the road itself as a rolling road)
- Luxurious import-from-file and export-to-file (curves can easily be exchanged over the internet)

While using the software an electronic 'dashboard' will show you

- Temperature gauge (selectable in degrees Celsius or Fahrenheit)
- Manifold pressure (selectable in Bar or inches Hg/Psi)
- Tachometer (0 to 8000 rpm crankshaft)
- Spark-energy gauge (primary coil current)
- Total-advance gauge (in degrees crankshaft)

Installation manual 123/TUNE

We strongly advise you to check the dimensions of the 123/TUNE with the original distributor cap AND to carefully read the installation manual before you order! In the installation manual you'll find more information and a few examples with a step by step explanation on how to install and program the 123/TUNE.

You can download the latest version of the 123/TUNE software here: www.123ignition.com.

The minimum system requirements for the 123-tune software are:
• MS Windows XP
• 1 gigahertz (GHz) processor
• 256 megabytes (MB) RAM
• Free (powered!) USB port
• Shielded USB cable with mini-B plug (male) – also available in our webshop

USB cable, coil and spark plugs

Please note: the 123/TUNE will be delivered WITHOUT shielded USB-cable. The manufacturer advises you to use a Belkin cable, of course you can also order this here. Below you’ll find a picture from the cable at ‘Accessories’ and you can easily add it to your cart.

In the same way you can easily order a new coil. Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never overheat again in the future. We recommend the High Energy Coil #2020.

Perhaps you will also need new spark plugs? At 123ignitionshop we’ve added the spark plugs most commonly used in addition to the 123ignitions we offer. See: the spark plugs list.

Complete set

Now also the complete set can be ordered in one go: a 123/TUNE Mercedes-6-R-V distributor + Bosch ignition coil red + set of 6 spark plugs WR6DC + spark plug cables!

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft
Wiring

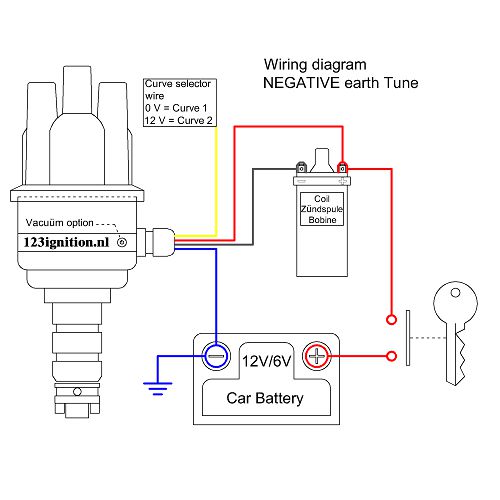

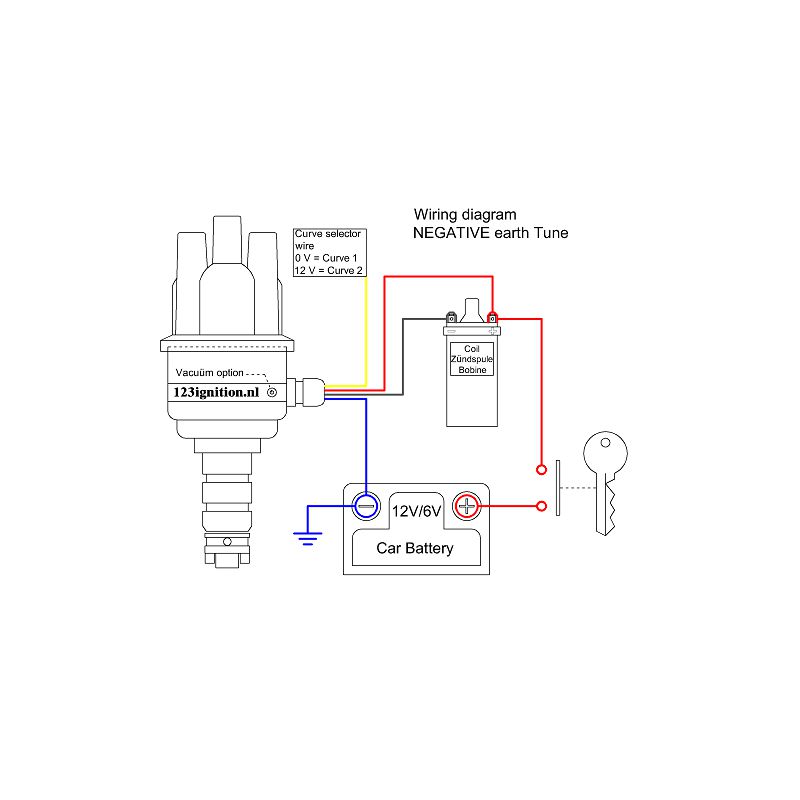

red +6V or +12V, black '-' ignition coil, blue chassis ground, yellow curve selector
Earth type
Suitable for negative and positive earth systems
Curve
Programmable via USB cable with Windows PC Software
