123/Porsche-911-S

€425.00
VAT included

The 123/Porsche-911-S is developed for the Porsche 911 (2.0 - 2.2 liter until september 1977).
There are 13 different advance curves programmed which can be selected by a small switch.

Quantity
In stock

123/Porsche-911-S for Porsche 911

The 123/Porsche-911-S distributor has been developed for Porsche 911 (2.0 - 2.2 liter, up to september 1977).

CURVE 0 replaces BOSCH distributor 0.231.159.001,
as used in Porsche 911 2.0 liter from Jan '66 until Dec '66 and
Porsche 911T&L 2.0 liter from Jan '66 until July '68

CURVE 1 replaces BOSCH distributor 0.231.121.006,
as used in Porsche 911 2.0 liter from Sep '64 until Dec '65

CURVE 2 replaces BOSCH distributor 0.231.159.002,
as used in Porsche 911S 2.0 liter from Aug '66 t/m July '68

CURVE 3 replaces BOSCH distributors 0.231.159.006 and 0.231.159.007,
as used in Porsche 911E/S 2.2 liter from July '68 until Aug. '71

CURVE 4 replaces BOSCH distributor 0.231.159.008 (sometimes a Marelli distributor has been used),
as used in Porsche 911T 2.0 - 2.2 liter from Jan '66 until March '70,
Porsche 911T 2.2 liter from Sep. '69 until Aug. '71 en
Porsche 914/6 2.0 liter from '69 until '72

CURVE 5 replaces BOSCH distributor 0.231.169.001,
as used in Porsche 911T&L 2.0 liter from Aug. '68 until Sep. '69

CURVE 6 replaces BOSCH distributors 0.231.169.003, 0.231.169.004 and 0.231.169.005,
as used in Porsche 911E/T/S 2.4 liter from Sep. '71 until June '72

CURVE 7 replaces BOSCH distributors 0.231.169.008, 0.231.169.009 and 0.231.169.010,
as used in Porsche 911E/T/S 2.4 liter from July '72 until April '73

CURVE 8 replaces BOSCH distributor 0.231.169.011,
as used in 911 Carrera 2.7 liter from Sep. '72 until April '73

CURVE 9 replaces BOSCH distributors 0.231.184.001, 0.231.184.002, 0.231.184.003 and 0.231.184.007,
as used in Porsche 911E/T/S 2.4 liter from May '73 until Aug. '73,
Porsche 911/S 2.7 liter from Sep. '73 until Aug. '75,
Porsche 911 2.7 liter from Sep. '75 until June '77 and
Porsche 911S (USA) 2.7 liter from Sep. '75 until Aug. '77

CURVE A replaces BOSCH distributor 0.231.184.004,
as used in Porsche 911 Carrera 2.7 liter from May '73 until Aug. '75

CURVE B replaces BOSCH distributors 0.231.184.005 and 0.231.184.006,
as used in Porsche 911 Carrera 3.0 liter from Sep. '75 until June '77

CURVE C replaces BOSCH distributors 0.237.301.001 and 0.237.301.002,
as used in Porsche 911 Turbo Carrera (USA) from Jan. '75 until Sep. '77

CURVE D replaces BOSCH distributor 0.231.159.001,
as used in Porsche 911 2.0 liter from Jan '66 until Dec '66 and
Porsche 911T&L 2.0 liter from Jan '66 until July '68

CURVE E replaces BOSCH distributor 0.231.159.001,
as used in Porsche 911 2.0 liter from Jan '66 until Dec '66 and
Porsche 911T&L 2.0 liter from Jan '66 until July '68

CURVE F replaces BOSCH distributor 0.231.159.001,
as used in Porsche 911 2.0 liter from Jan '66 until Dec '66 and
Porsche 911T&L 2.0 liter from Jan '66 until July '68

Features of the 123/Porsche-911-S electronic ignition

The 123/Porsche-911-S offers:
- Vacuum-advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note about the 123/Porsche-911-S 123ignition

If you want to tune your engine, we've got great news for you: this product is also available in a 123/TUNE version! Please read about the 123/TUNE-6-R-V-Porsche-911-S here.

You can use this ignition 123 with the 3-wire HKZ system. The tachometer continues to work normally. .

Please read the installation manual carefully. It contains more information about the specifications of the 123-ignition and a step-by-step description of the installation procedure.

Coil

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the High Energy #2020 Coil.

Complete set

The 123/Porsche-911-S can now be ordered in one go in the following set:

  • 1x 123/Porsche-911-S distributor
  • 1x High Energy #2020 coil
  • set of 6 spark plugs W3CC

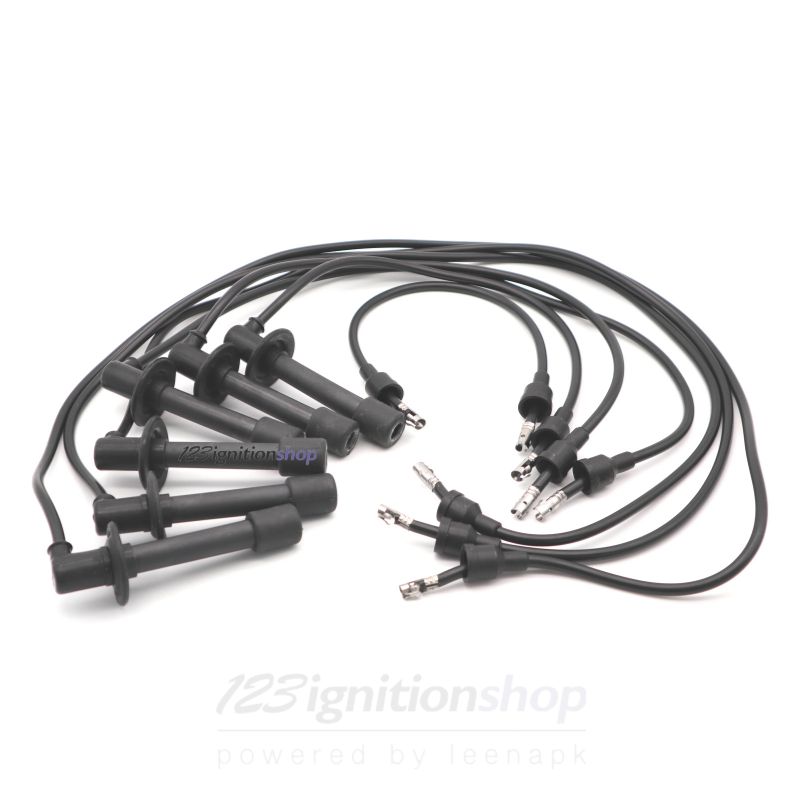

  • set of spark plug wires

Data sheet

Cylinders
6
Direction of rotation
CW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft

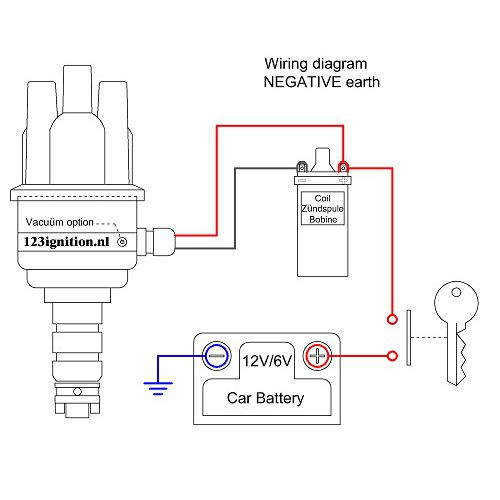

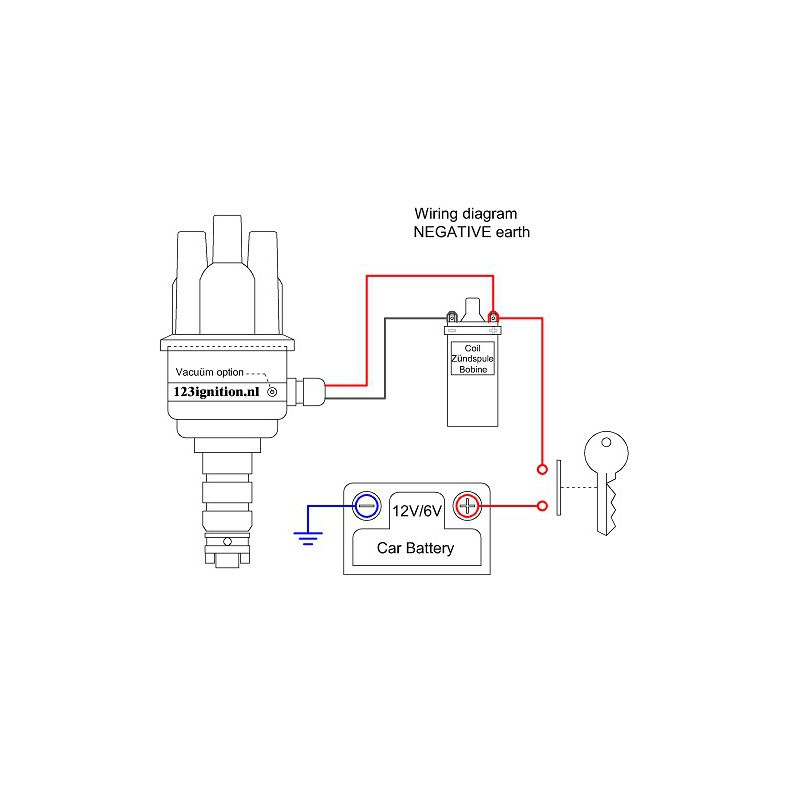

Wiring
red +6V of +12V, black - coil
Grade
Jürgen Bauer 2020-08-21

123ignition für Porsche 911T

Für meinen Porsche 911, Bj 1969, mit 2,2l -Motor und HKZ-Zündung habe ich einen 123ignition Verteiler gekauft. Da ich mir nicht sicher war, ob ich das richtige Modell nach den Beschreibungen ausgesucht hatte, habe ich vorher nachgefragt, ob der Verteiler zu meinem Motor passt. Ich wurde noch nach einigen weiteren Angaben gefragt, z. B. welche Nummer der vorhandene Verteiler hat. Da der 123ignition zum Motor passen sollte, habe ich ihn bestellt.
Leider enthielt die Montageanleitung in dem Paket kein Schaltbild für einen Anschluss an ein HKZ-Gerät. Auf Nachfrage habe ich sofort einen ergänzenden Schaltplan erhalten. Die Kommunikation mit der Firma war optimal. Am Wochenende über Email angefragt und noch am Sonntag eine Rückmeldung erhalten! Ich hatte einige Fragen und alle wurden sofort, verständlich und umfassend beantwortet.
Den Verteiler habe ich inzwischen eingebaut, er funktioniert problemlos. Allerdings bin ich noch zu wenig gefahren, um ein endgültiges Urteil abgeben zu können. Er hat ja auch verschiedene Einstellmöglichkeiten und die möchte ich gerne testen. Vorteilhat finde ich, dass keine Zündkontakte mehr gewechselt werden müssen und auch das Einstellen des Schließwinkels entfällt.

Grade
Jaxx 2020-04-22

Goed product, snelle service

Goed product, snelle service

Grade
leslie 2018-06-25

2.2 911 1970

werkt perfect! motor draaid veel soepeler en stabieler!

Grade
911 2018-04-19

Mister

excellent :-)
