• Pack

123/MINI-R-V complete system

€455.00

Instead of €473.00

VAT included

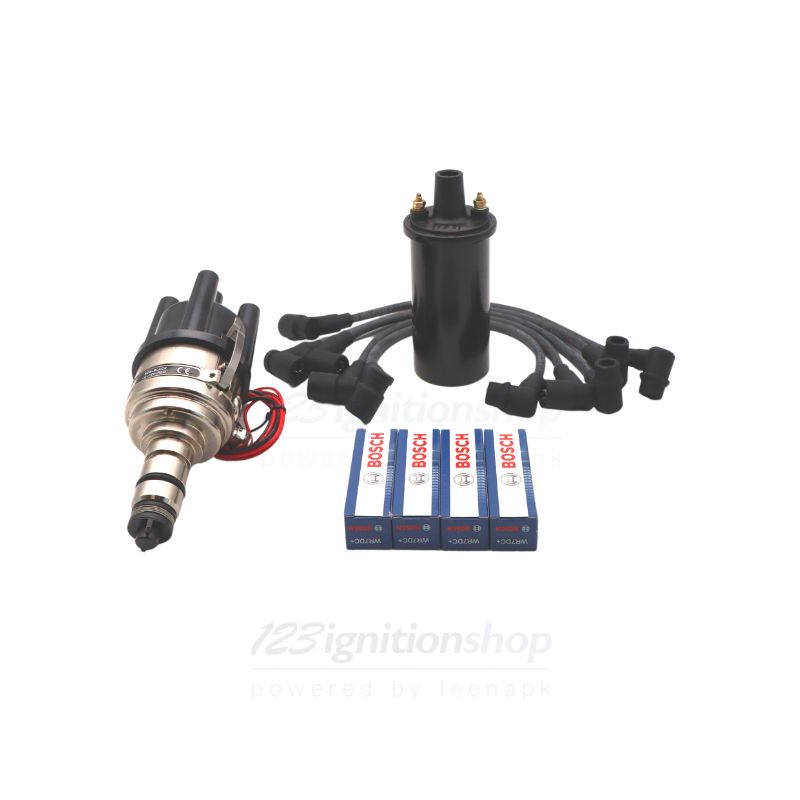

Now all in one order: a 123/MINI-R-V distributor + coil + set of 4 spark plugs + spark plug wires.

The 123ignition MINI-R-V is designed with the Mini enthusiast in mind. It is available for the old 'pre-A-plus' Mini and Morris Minor.

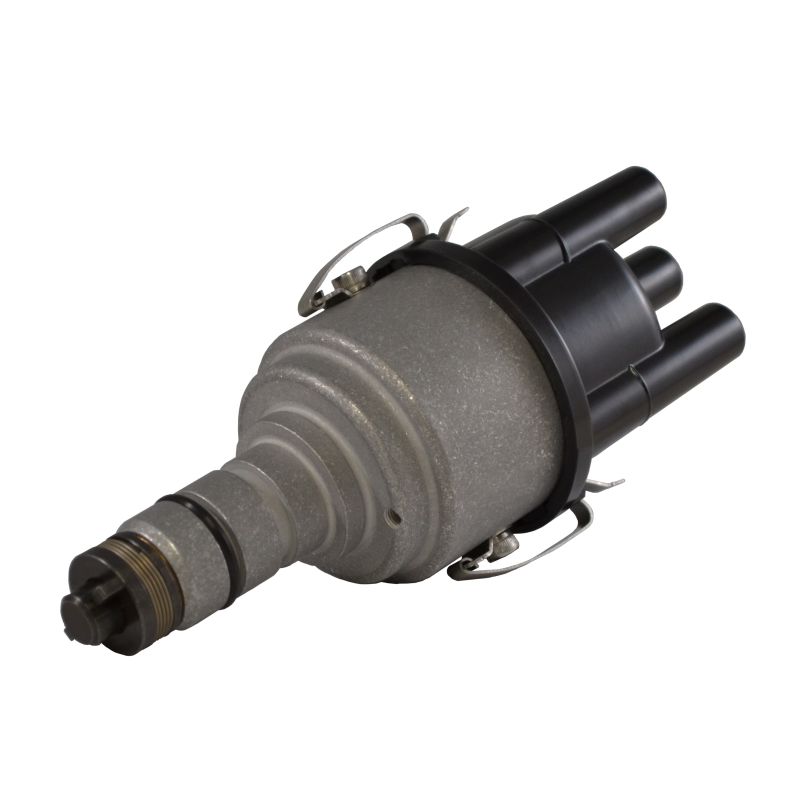

123/MINI-R-V distributor for the old 'pre-A-plus' Mini and Morris Minor

The 123/MINI-R-V is designed with the Mini enthusiast in mind. It is available for the old 'pre-A-plus' Mini and Morris Minor.

Features of the 123/MINI-R-V electronic ignition

The unit is laid out in such a way, that static timing can be done on TDC, by means of the built-in LED. The 16 curves are nicely divided over the spectrum, so that the unit lends itself perfectly for tuning.

The unit also offers:
- Vacuum advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note about the 123/MINI-R-V 123ignition

Often mistakes are made in ordering the right 123ignition for the Mini. Please check carefully whether you'll need a pre-plus version or an A-plus version. In combination with an A-plus engine please order: 123/MINI-R-V-A+. The pre-plus engines were made until circa 1980.

Please read the installation manual carefully. It contains more information about motor- and distributor numbers, static timing and the advance-curves, the specifications of the 123ignition and a step-by-step description of the installation procedure. The installation manual also offers a comprehensive list, that links a curve-setting to a particular engine.

Coil and spark plugs

As used coils often were exposed to overheating in the past, the set contains a 123 Blue Coil.

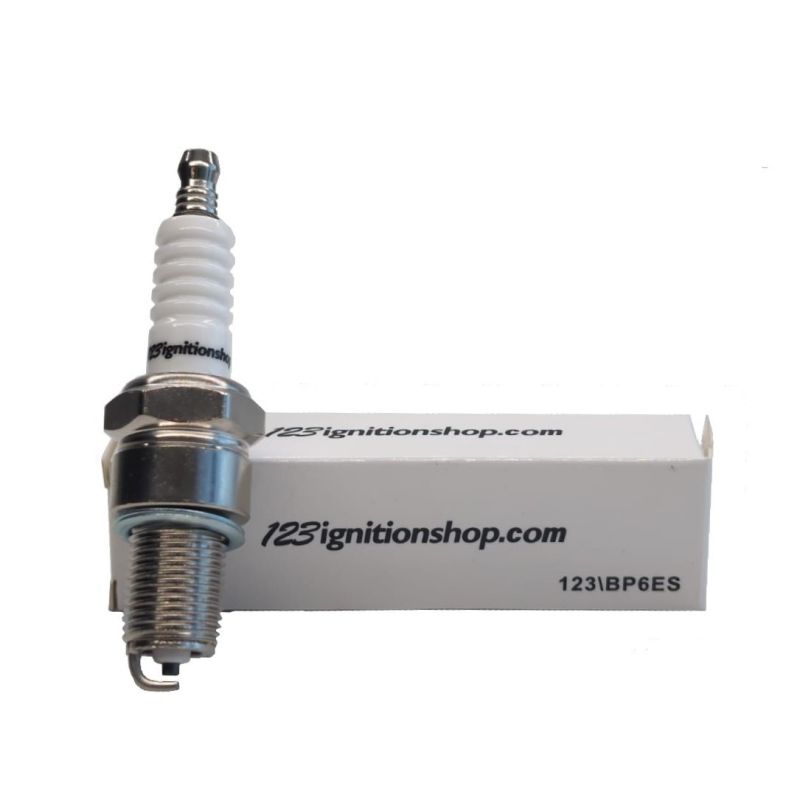

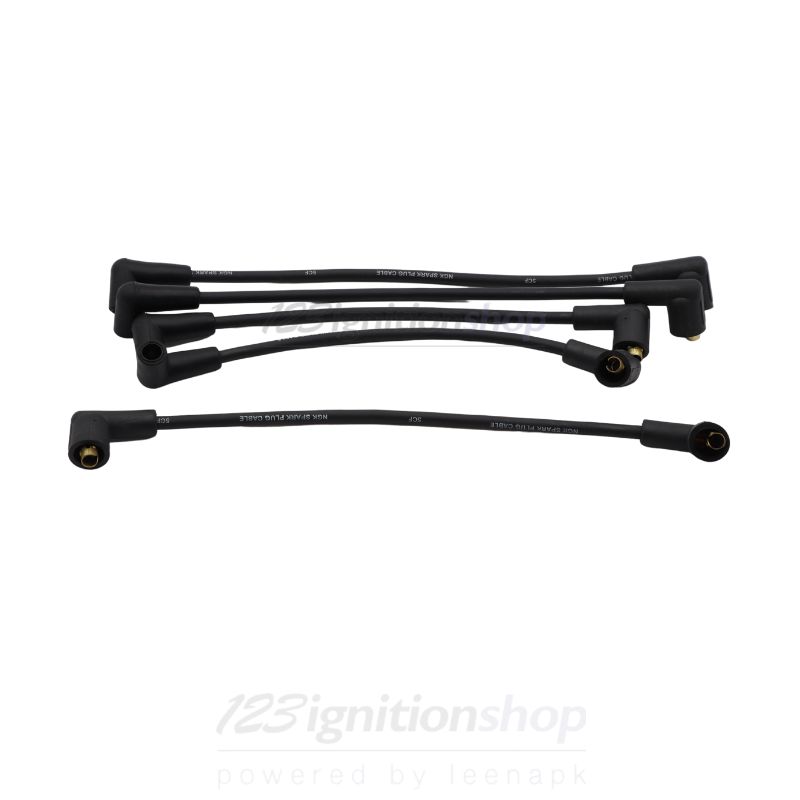

This set also offers 4 spark plugs and new spark plug wires.

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

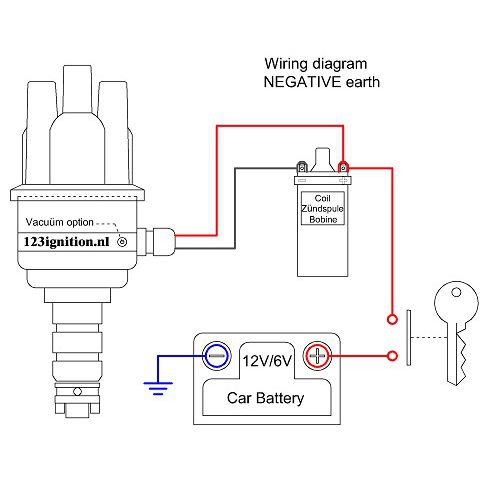

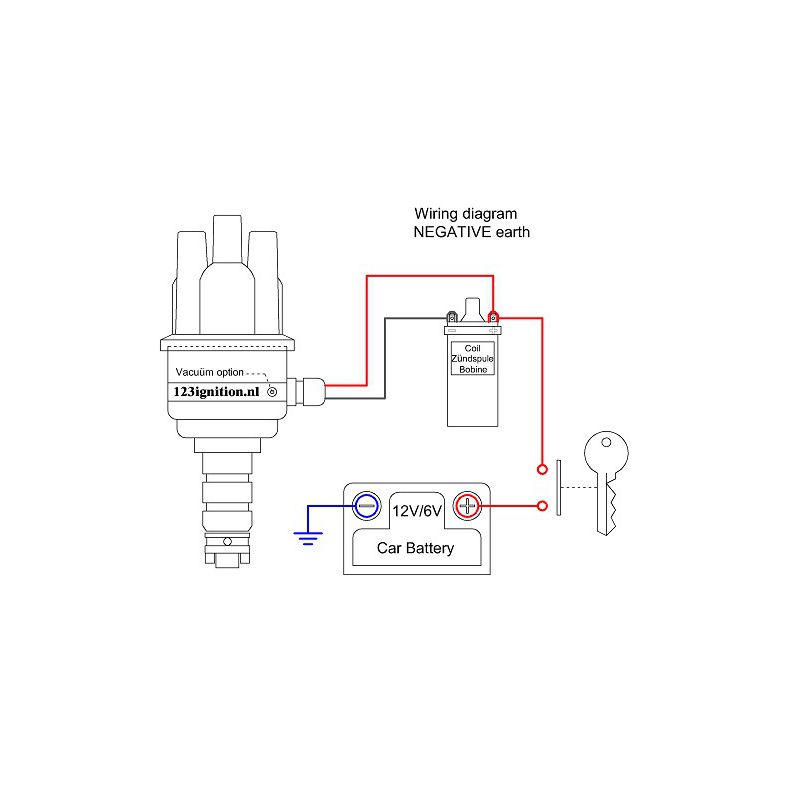

Wiring
red +6V of +12V, black - coil
