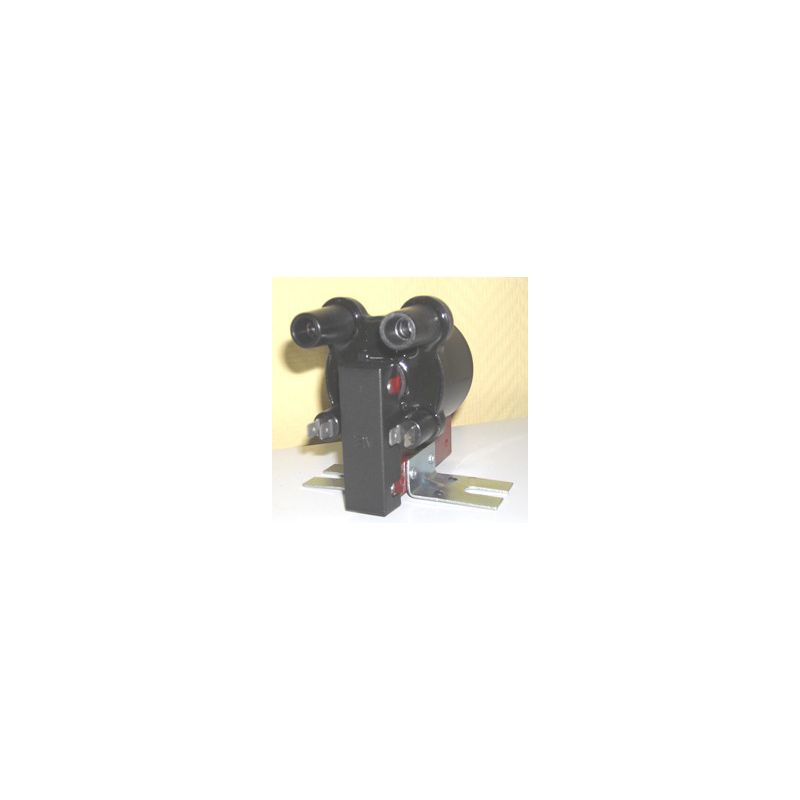

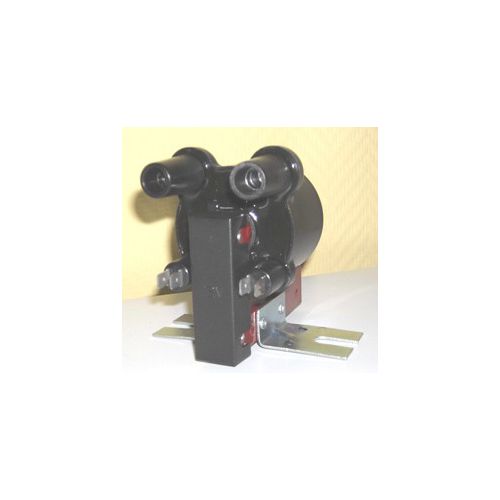

4240 Double coil for Fiat

This double-coil is available from 123ignition, and is a perfect marriage for the 123/FIAT or the 123/FIAT-PLUS. The low primary resistance, and the high primary inductance guarantee a continuous high spark-energy, unmatched by any system on the market for Fiat 500 and Fiat 126.

The energy that is stored into a coil, and that comes out in the form of a spark, is proportional to the primary inductance of that coil times the square of the momentary current shortly before this current is switched of. From this equation you can see that a good match of the electronics and the coil can be very beneficial in terms of spark-strength.

We advise, NOT to experiment with old coils, as a coil that still looks good on the outside, tells nothing about the inside. Proper wiring is important too. Long wires to the battery, or worn contact-switches can limit the energy delivered to the spark plug.
