123/B30-R

€268.60
VAT excluded

The 123/B30-R is specially offered for boats with a 6 cylinder Volvo B30 engine, as no vacuum advance or injection is required. The advance curves as used in the Volvo Penta AQ165 / AQ170 are programmed in the 123 ignition.

Quantity
In stock

123/B30-R distributor for Volvo B30 engines

The 123/B30-R is specially offered for boats with a 6 cylinder Volvo B30 engine, as no vacuum advance or injection is required. The advance curves as used in the Volvo Penta AQ165 / AQ170 are programmed in the 123 ignition.
It has advance-curves for B30-A, B30-E, B30-F, B30-VALP & B30-Penta engines.

Features of the 123/B30-R electronic ignition

Next to optimized curves for several engines the unit also offers optimized LPG/Ethanol-curves for each engine. With a switch you can easily choose the advance-curve that is specified for your specific engine. The unit offers a built-in LED for easy static timing and several different advance-curves.


It also offers:
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note the following about the 123/B30-R 123ignition

Please read the installation manual carefully. It contains more information on the motor- and distributor numbers, static timing and the advance-curves, the specifications of the 123ignition and a step-by-step description of the installation procedure.

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the 123 Red Coil.

Perhaps you will also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in combination with the 123ignitions we offer. See: the spark plugs list.

Complete set

Now also the complete set can be ordered in one go: a 123/B30-R distributor + Bosch ignition coil red + set of 6 spark plugs NGK BPR6HS + spark plug cables

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft

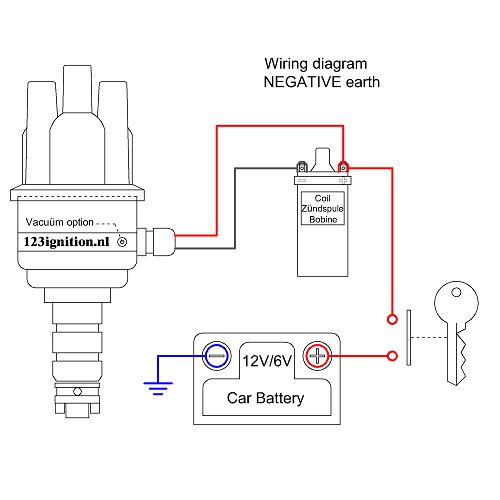

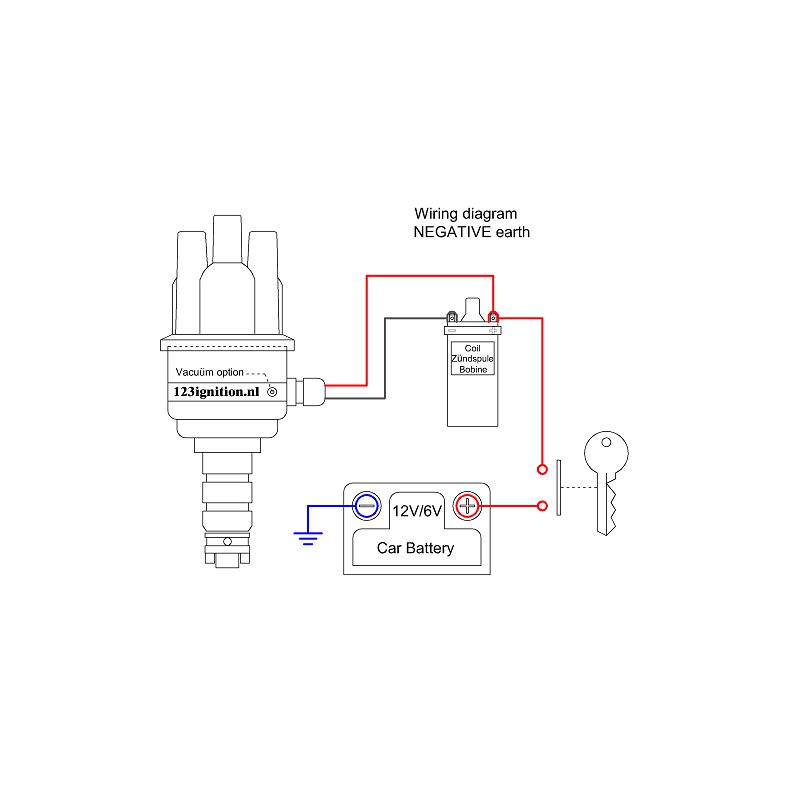

Wiring
red +6V of +12V, black - coil
