123/VW-R without vacuum advance

€247.11
VAT excluded

The 123/VW-R can be used in all type '1', '2' and '3' VW cars WITHOUT vacuum advance. In addition it can also be installed in the Porsche 356 and 912 models.

Distributor cap
Quantity
In stock

The 123/VW-R distributor can be used in all type '1', '2' and '3' VW cars WITHOUT vacuum advance

The 123/VW-R-V is developed in co-operation with VW Experts. In addition to the Beetle, Karmann Ghia and Buggy without vacuum advance, it can also be installed in the Porsche 356 and 912 models.

Features of the 123/VW-R electronic ignition

With a switch you can easily choose the advance-curve that is specified for your specific engine. The unit offers a built-in LED for easy static timing and several different advance-curves.

It also offers:
- Automatic dwell
- Automatic power-cut after 1 second

Please note the following about the 123/VW-R 123ignition

When you need a 123ignition with vacuum advance, please order a 123/VW-R-V.

Please read the installation manual carefully. It contains the specifications of the 123-ignition system, as well as a step-by-step description of the installation procedure. The installation instructions also contain a cross-reference between the original Bosch number and the setting of the 123VW-R, as well as a list which links VW engine numbers to the required setting of the 123ignition.

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the High Energy Coil 2020.

Perhaps you'll also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in combination with the 123ignitions we offer. See: the spark plugs list.

Complete set

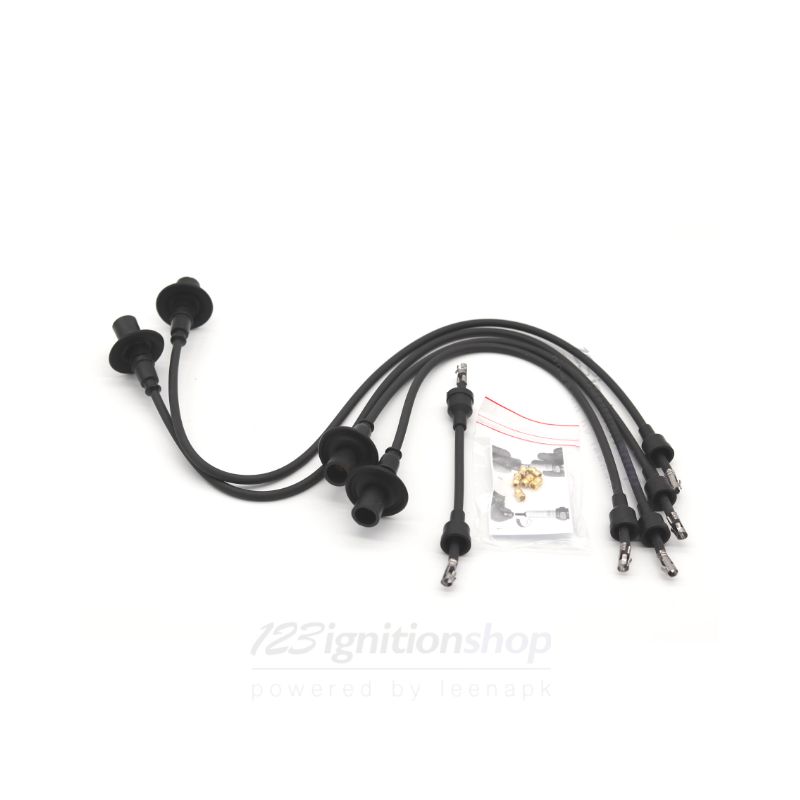

Now also order the complete set in one go: a 123/VW-R distributor (without vacuum) + Bosch Blue ignition coil + set of 4 spark plugs W8AC + spark plug cables

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft
Wiring
red +6V of +12V, black - coil
Grade
2020-05-14

VW TYP 3-71

Ich habe VW TYP 3-71 mit zwei vergaser und ich habe zundspule blue BOSCH und vertailer 123/VW-R zusammen gekauft.Beide arbeitet sehr gut und ich bin sehr zufrieden.Ich denke,verteiler ist von hoher qualität.

Grade
2019-07-20

Lloyd/Borgward Arabella

Zündung kann für die Arabella mit der 3er Zündkurve und etwas Frühzündung problemlos verwendet werden!

Grade
2016-02-01

Uitstekend

Snelle afhandeling en levering van LeenApk!
Makelijk te monteren en af te stellen!
M'n auto loopt en start heerlijk!

  • 1 out of 1 people found this review useful.
