• Pack

123/TUNE+ 4-R-V-V (bluetooth) complete system for Beetle

€432.23
VAT excluded

Now all in one order: a 123/TUNE+ 4-R-V-V distributor + coil + set of 4 spark plugs + spark plug wires. With this system you can tune your VW Beetle with your smartphone and it will show you the temperature, the advance and the battery voltage (amongst other things).

Get it on Google Play Download on the Apple Store

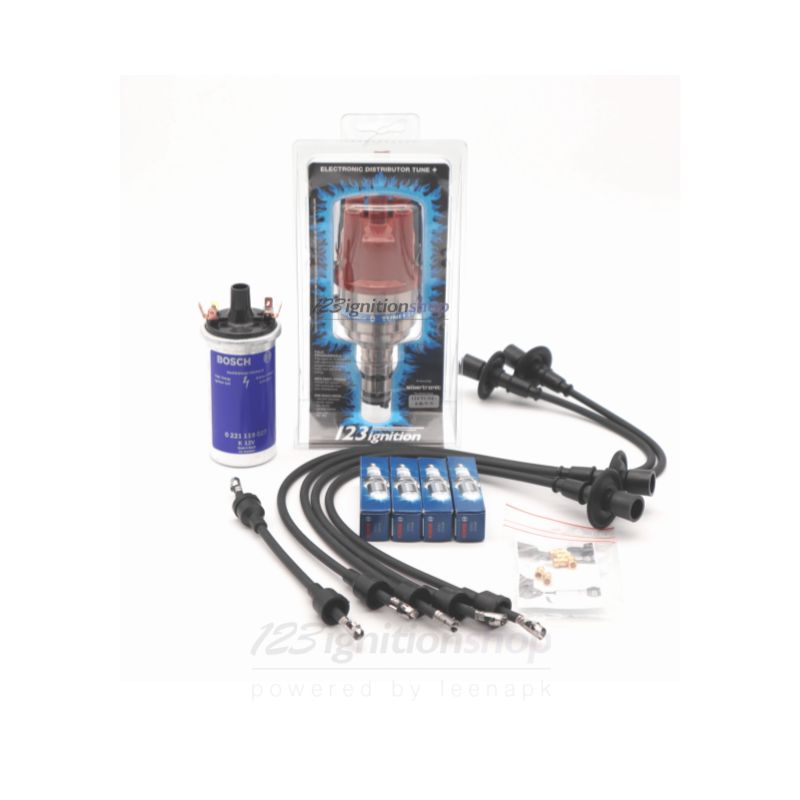

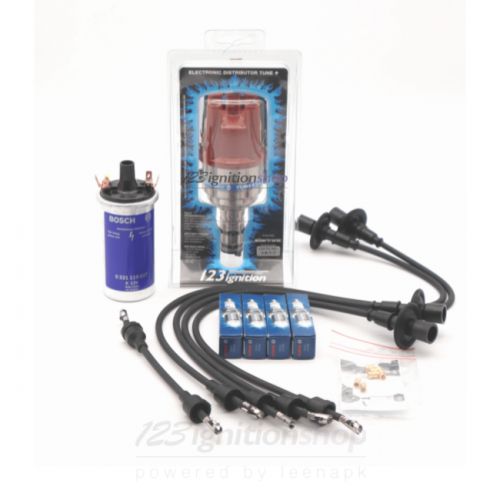

Now all in one order: a 123/TUNE+ 4-R-V-V distributor + coil + set of 4 spark plugs + spark plug wires.

The 123/TUNE+ 4-R-V-V is a wireless electronic ignition that you can program yourself using your iOS or Android Bluetooth 4.0 devices. The free App enables you to adjust the advance curve. It shows an electronic dashboard. The 4-R-V-V type is specifically intended for all type '1', '2' and '3' cars, the 181 and therefore in the Beetle (1100, 1200, 1300, 1500, 1600), "kleinbuss" Type III, Karmann Ghia, Buggy, etc.

As used coils often were exposed to overheating in the past, the set contains a High Energy Coil 2020.

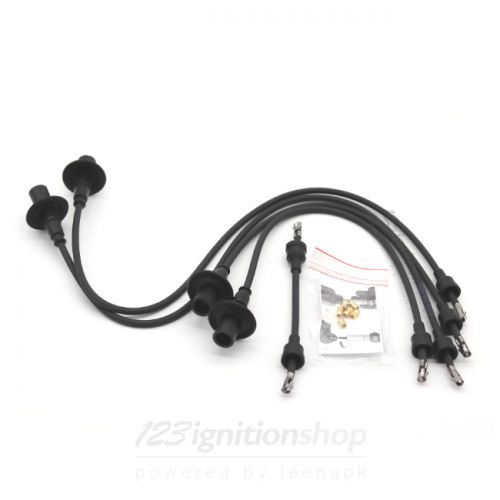

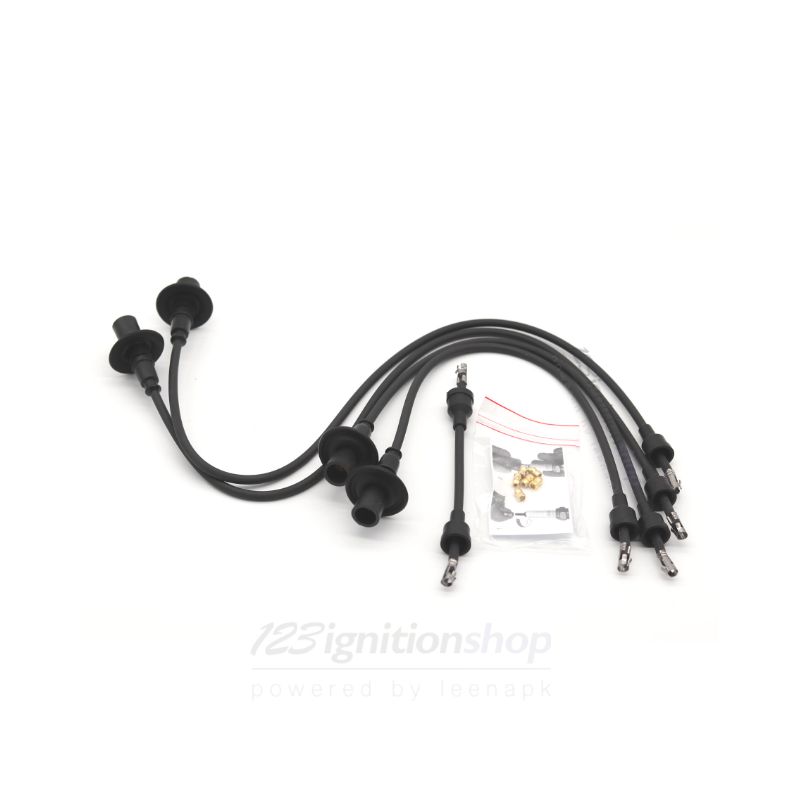

This set also offers 4 spark plugs and new spark plug wires.

Note: the included spark plugs have a shorter thread. If you need longer threaded spark plugs, please put it in the comments.

Please read the installation manual carefully. In it you will find more information and a few examples with a step by step explanation on how to install and program the 123/TUNE+.

The TUNE+ will run on all iOS and Android devices with Bluetooth 4.0 (or higher).

B304

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft
Wiring

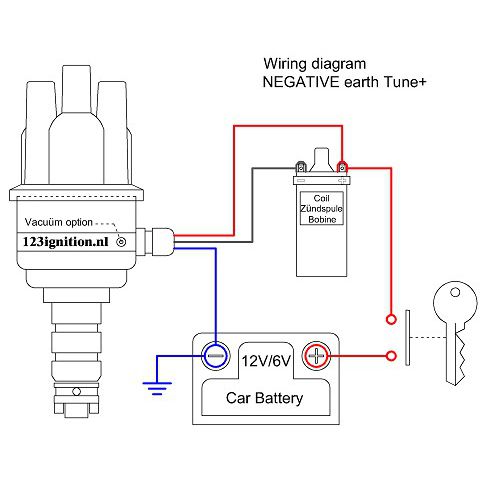

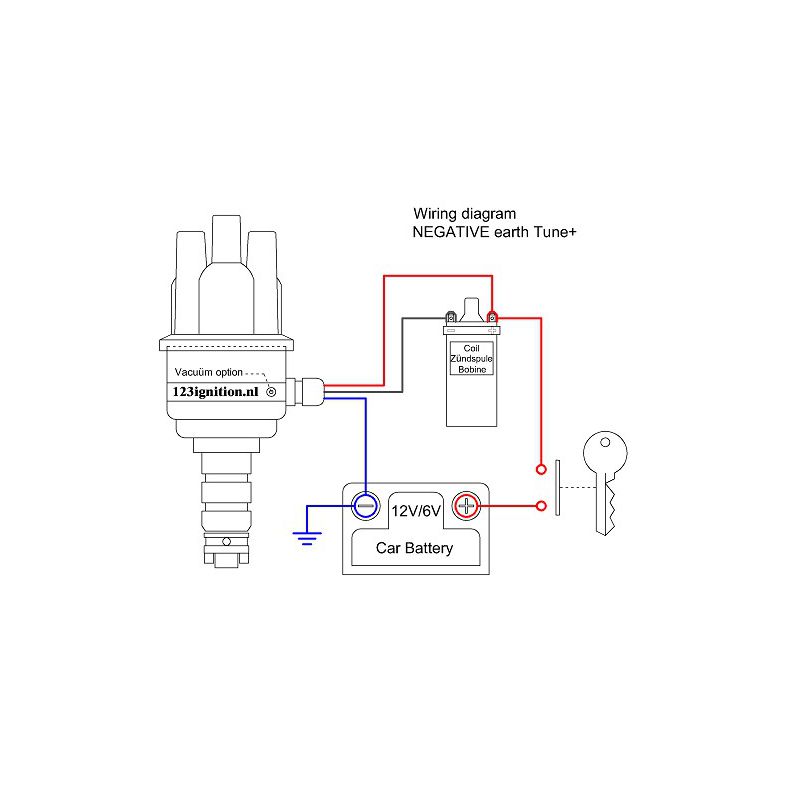

red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
Grade
2018-05-18
