• Pack

123/TUNE-Porsche-911-S (USB) complete system

€769.00

Instead of €796.00

VAT included

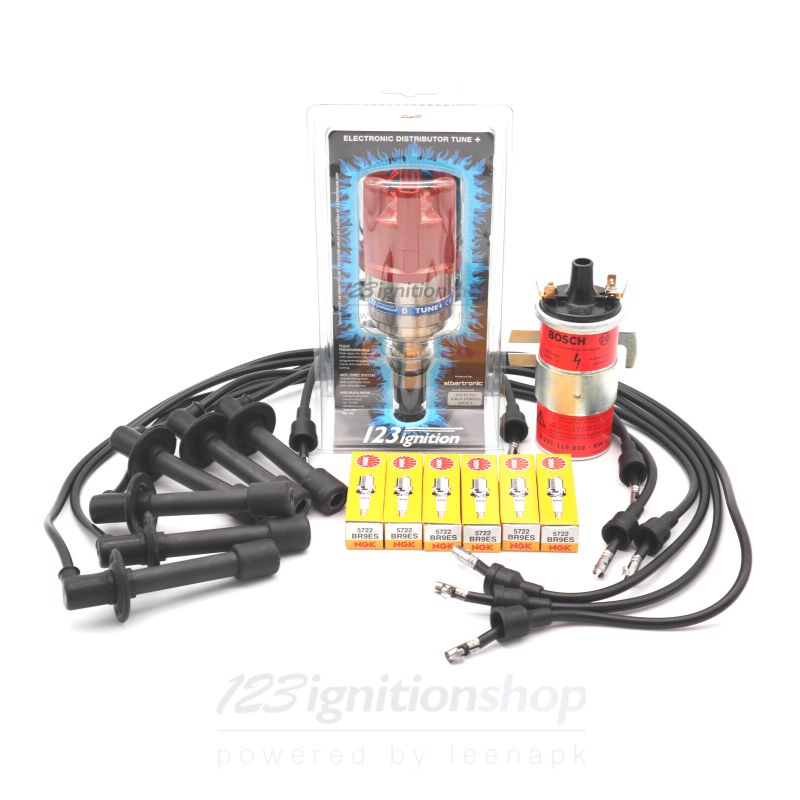

Now all in one order:a 123/TUNE-Porsche-911-S (USB) distributor + ignition coil + set of 6 spark plugs + spark plug cables!

Download for Windows

The 123/TUNE-Porsche-911-S (USB) distributor was developed for the Porsche 911 (2.0 - 2.2 liters until September 1977).

The set includes:

B309

Data sheet

Cylinders
6
Direction of rotation
CW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft

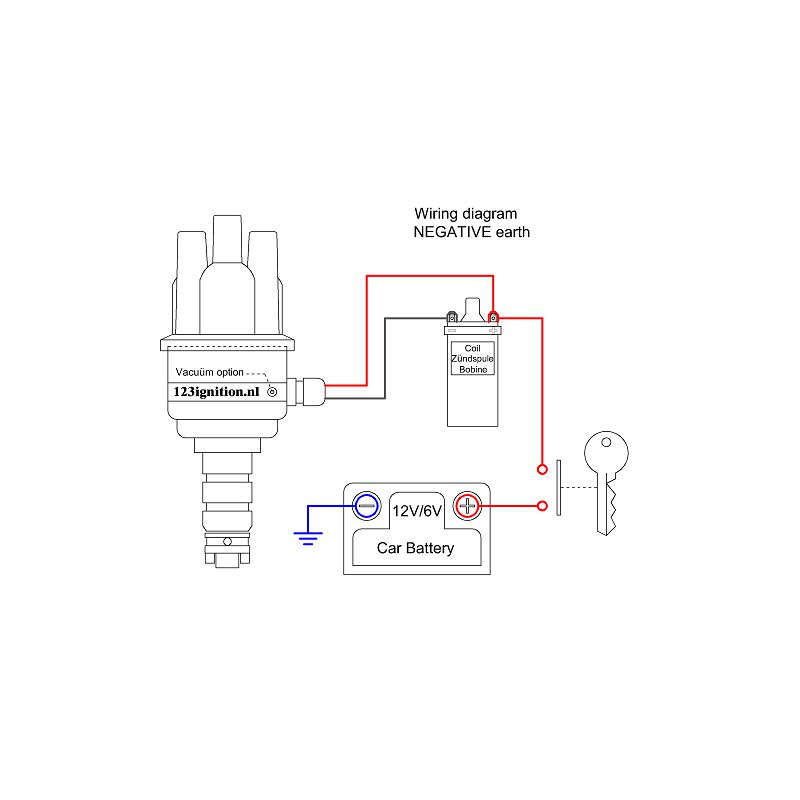

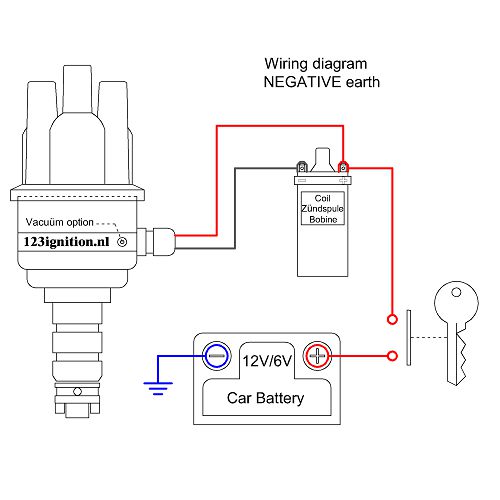

Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground, yellow curve selector
Earth type
Suitable for negative and positive earth systems
Curve
Programmable via USB cable with Windows PC Software
