123/TUNE+ Porsche 911S (bluetooth)

€509.00
VAT included

Tuning your engine using your own tablet or smartphone? The TUNE+ is the first wireless electronic ignition that you can program yourself using your iOS or Android Bluetooth 4.0 devices. The free app enables you to adjust the advance curve. It shows an electronic dashboard. Within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!

The "Porsche-911-S" model will replace the distributor as used in Porsche 911 (2.0 - 2.2 liter, up to september '77. Please check dimensions and installation manual before ordering.

Quantity
In stock

Get it on Google Play Download on the Apple Store

123/TUNE+ programming wireless

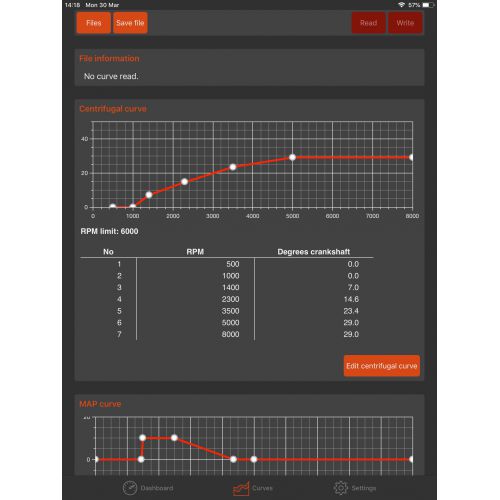

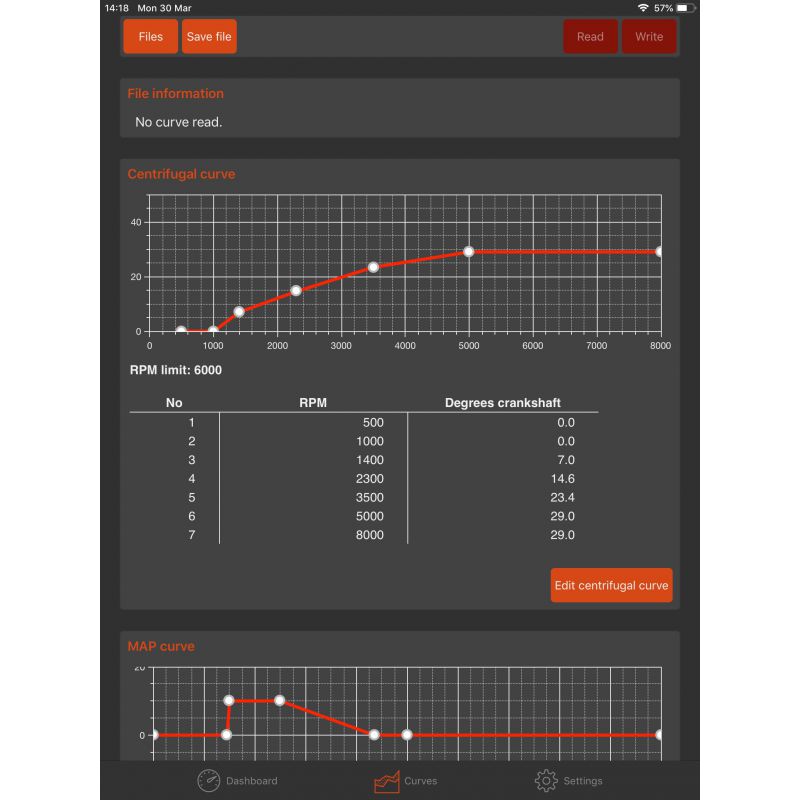

After installing the free app and making the Bluetooth connection you can enter the values: at which RPM do you need how many degrees crankshaft? In this way you will easily program your ideal advance curve with your smartphone or tablet.

The app enables you to adjust the advance curve, it shows an electronic dashboard and with it you can secure your car within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!

Model "Porsche-911-S"

The "Porsche-911-S" model replaces distributors used in Porsche 911 (2.0 - 2.2 liter, up to september '77 (please check dimensions before ordering). The 123/TUNE+ 6-R-V-Porsche-911-S for 6 cylinders comes with an upright cap.

Features of the 123/TUNE+ 6-R-V-Porsche-911-S

- Rotation CW
- For 6 Volt and/or 12 Volt cars (auto detect)
- Variable dwell constant current, fully automatic (auto detect)
- Coil current protection time-out after 1 second (auto detect)
- For positive and negative earth cars (auto detect)
- Programmable centrifugal advance curve (500 to 8000 rpm)
- Programmable vacuum-advance and boost-retard curve (0 to 200 kPa or -30 inHg to +15 psi)
- Rev limiters (advanced random spark stealing)
- Real-time tuning (ideal for working on a test bench)

Your smartphone or tablet will show you

- Temperature gauge (selectable in degrees Celsius or Fahrenheit)
- Manifold pressure (selectable in Bar or inches Hg/Psi)
- Tachometer (0 to 8000 rpm crankshaft)
- Spark-energy gauge (primary coil current)
- Total-advance gauge (in degrees crankshaft)
- Battery voltage
- GPS speed

Please note before ordering the TUNE+

You can use this ignition 123 with the 3-wire HKZ system. The tachometer continues to work normally.

We strongly advise you to check the dimensions of the 123/TUNE+ with the original distributor cap AND to carefully read the installation manual before you order! In the installation manual you will find more information and a few examples with a step by step explanation on how to install and program the 123/TUNE+.

The latest software version of the 123/TUNE+ can be downloaded from www.123ignition.com.

The TUNE+ will run on all iOS and Android devices with Bluetooth 4.0 (or higher).

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never overheat again in the future. Of course you can also easily order this here, we recommend the High Energy #2020 Coil.

Perhaps you will also need new spark plugs? At 123ignitionshop we have added the spark plugs most commonly used in addition to the 123ignitions we offer. See: the spark plugs list.

Complete set

The 123/TUNE+ Porsche-911-S (bluetooth) can now also be ordered in one go in the following set:

The set consists of:

  • 123/TUNE+ Porsche-911-S (bluetooth)
  • High Energy#2020 coil
  • Spark plug wires
  • 6 Spark plugs W3CC

Data sheet

Cylinders
6
Direction of rotation
CW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft

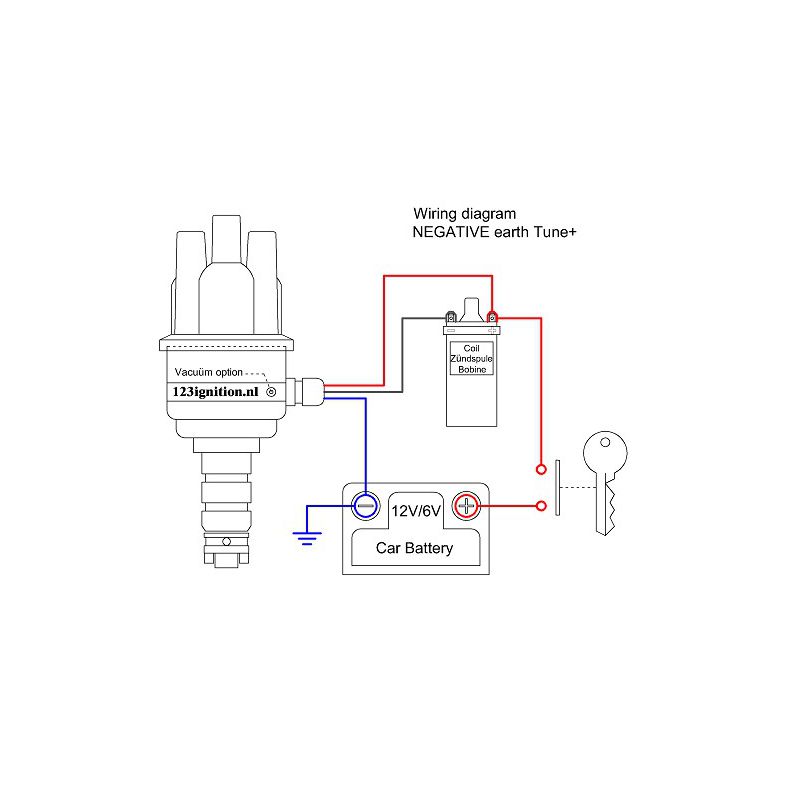

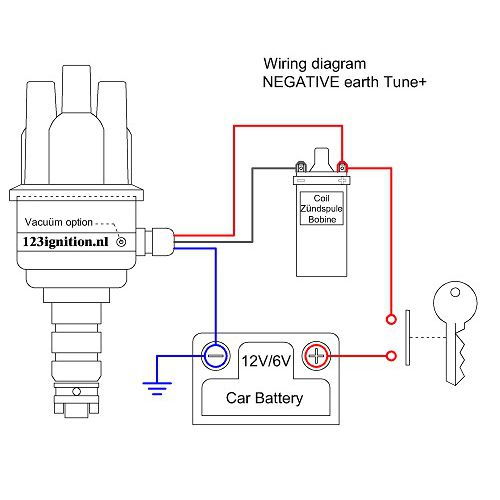

Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
