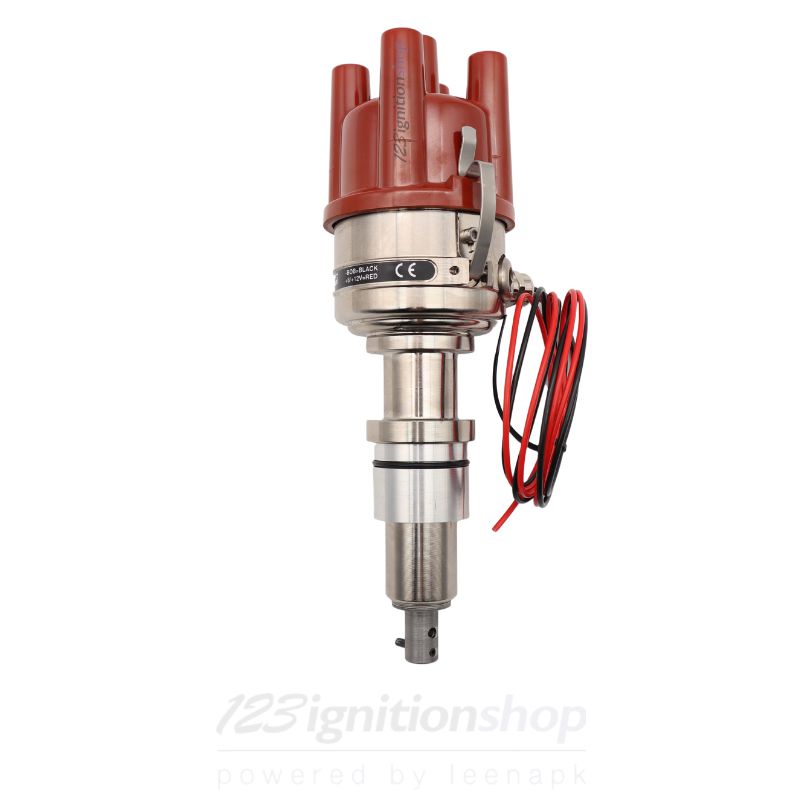

123/TUNE+ Lancia 1.6

€559.00
VAT included

The 123/TUNE+ Lancia 1.6 was designed with the help of Lancia enthusiasts. You need to transfer the gear from the original ignition to the 123 ignition. This ignition fits in the engine with number 818540. Please check the dimensions to be sure! It does not matter that the lower part of the handle is 27 mm thick.

Tuning your engine using your own tablet or smartphone? The TUNE+ is the first wireless electronic ignition that you can program yourself using your iOS or Android Bluetooth 4.0 devices. The free App enables you to adjust the advance curve. It shows an electronic dashboard. Within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system.

Distributor cap: Straight (R)
Quantity
In stock

Get it on Google Play Download on the Apple Store

The 123/TUNE+ Lancia 1.6 was designed with the help of Lancia Fulvia and Flavia enthusiasts.

You need to transfer the gear from the original ignition to the 123 ignition. This ignition fits in the engine with number 818540. Please check the dimensions to be sure! It does not matter that the lower part of the handle is 27 mm thick.

123/TUNE+ programming wireless

After installing the free app and making the Bluetooth connection you can enter the values: at which RPM do you need how many degrees crankshaft? In this way you will easily program your ideal advance curve with your smartphone or tablet.

The app enables you to adjust the advance curve, it shows an electronic dashboard and within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system.

Features of the 123/TUNE+ Lancia 1.6

- Rotation CW and CCW (auto detect)
- For 6 Volt and/or 12 Volt cars (auto detect)
- Variable dwell constant current, fully automatic (auto detect)
- Coil current protection time-out after 1 second (auto detect)
- For positive and negative earth cars
- Programmable centrifugal advance curve (500 to 8000 rpm)
- Programmable vacuum-advance and boost-retard curve (0 to 200 kPa or -30 inHg to +15 psi)
- Rev limiters (advanced random spark stealing)
- Real-time tuning (ideal for working on a test bench)

Your smartphone or tablet will show you

- Temperature gauge (selectable in degrees Celsius or Fahrenheit)
- Manifold pressure (selectable in Bar or inches Hg/Psi)
- Tachometer (0 to 8000 rpm crankshaft)
- Spark-energy gauge (primary coil current)
- Total-advance gauge (in degrees crankshaft)
- Battery voltage
- GPS speed

Before ordering the TUNE+ please note

We strongly advise you to check the dimensions of the 123/TUNE+ with those of your original distributor AND to carefully read the installation manual before you order! In the installation manual you'll find more information and a few examples with a step by step explanation on how to install and program the 123/TUNE+.

The TUNE+ will run on all iOS and Android devices with Bluetooth 4.0 (or higher).

Coil and sparkplugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never overheat again in the future. Of course you can also order this here. Below you will find a picture from the coil we recommend at ‘Accessories’ and you can easily add it to your cart.

Perhaps you'll also need new spark plugs? At 123ignitionshop we’ve added the spark plugs most commonly used in addition with the 123ignitions we offer. See: the spark plugs list.

Special-03

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft

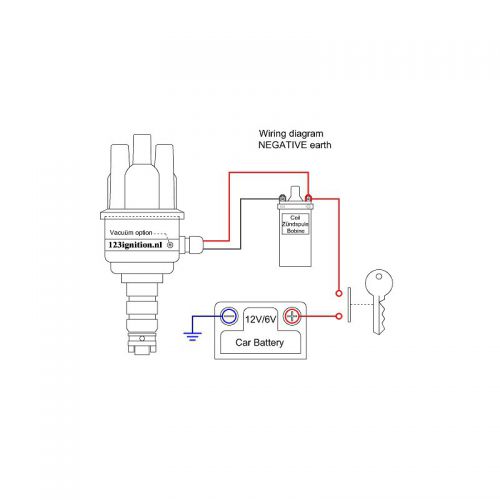

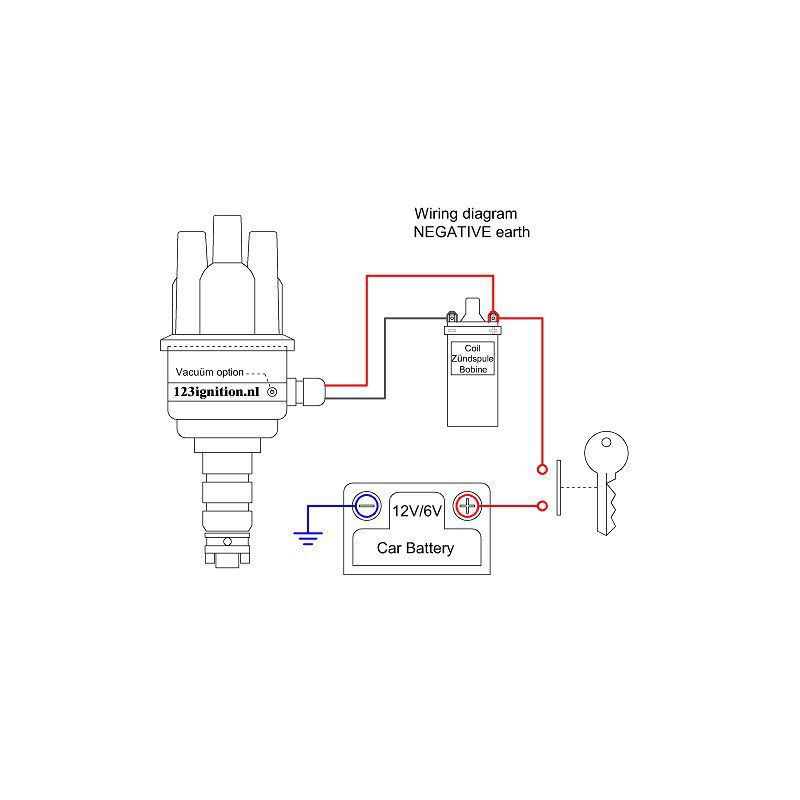

Wiring
red +6V of +12V, black - coil
