123/TUNE+ 2CV Ignition system

123/TUNE+ 2CV complete system

€375.00

Instead of €392.50

VAT included

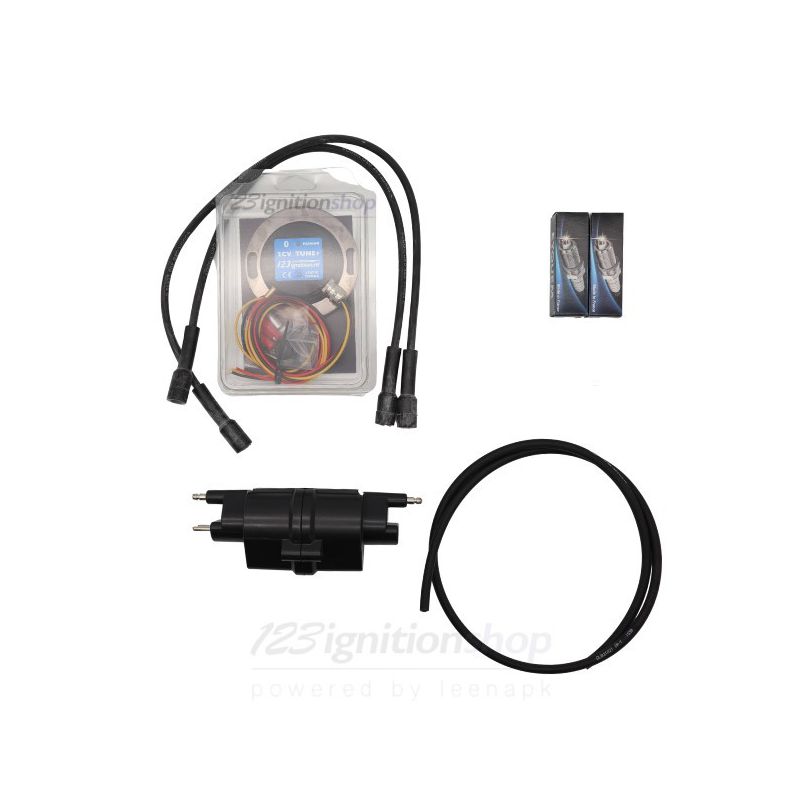

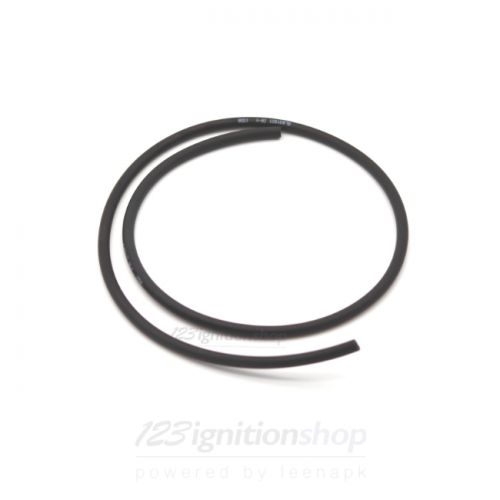

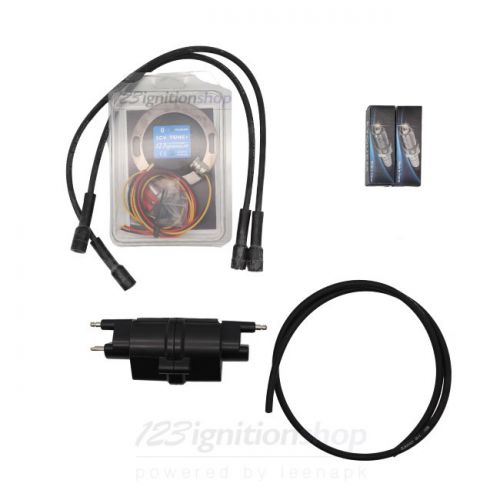

For your 2CV engine, now all in one order: a 123/TUNE+ 2CV distributor + vacuum hose + high efficiency coil + set of 2 spark plugs + spark plug wires.

This pack contains

Quantity
Add to Compare
Ships within 1 week

Get it on Google Play Download on the Apple Store

For your 2CV engine, now all in one order: a 123/TUNE+ 2CV distributor + vacuum hose + high efficiency coil + set of 2 spark plugs + spark plug wires.

The TUNE+ 2CV model will replace all distributors as used in 2 cilinder Citroën models.

For the Visa engine you need an extra adapter. The set for a Visa engine can be found here:

Visa 123/TUNE+ Ignition system

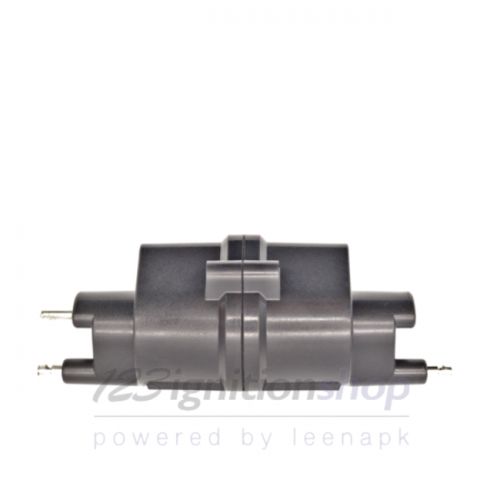

As used coils often were exposed to overheating in the past, the set contains the specially developed high efficiency 2CV coil.

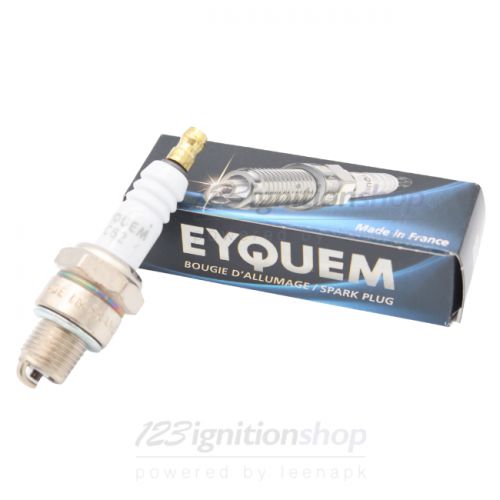

This set also offers 2 spark plugs and new spark plug wires.

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

2CV + A20

Data sheet

Cylinders
2
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft

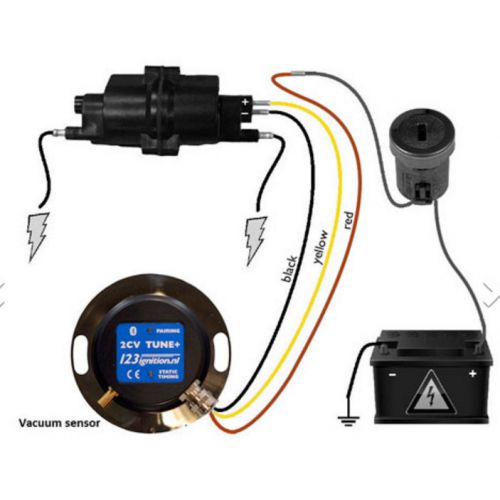

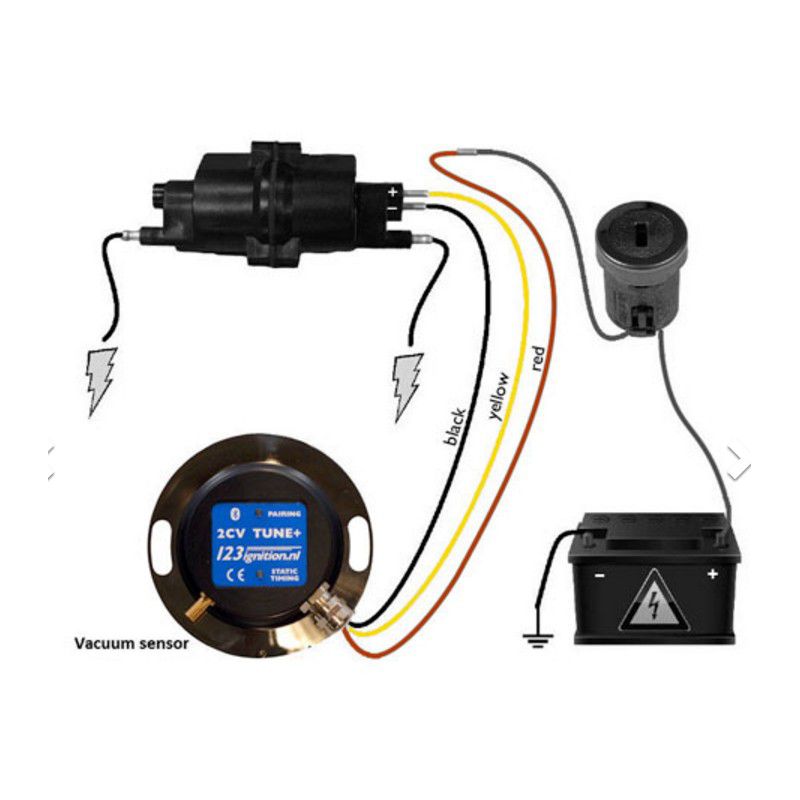

Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
