123/TUNE+ 6-R-V-SM-IE mét bobine

123/TUNE+ 6-R-V-SM-IE with high energy coil

€866.94
VAT excluded

The wireless programmable 123TUNE+-6-R-V-SM-IE is designed for the Citroën SM, Maserati-Merak & Merak SS.

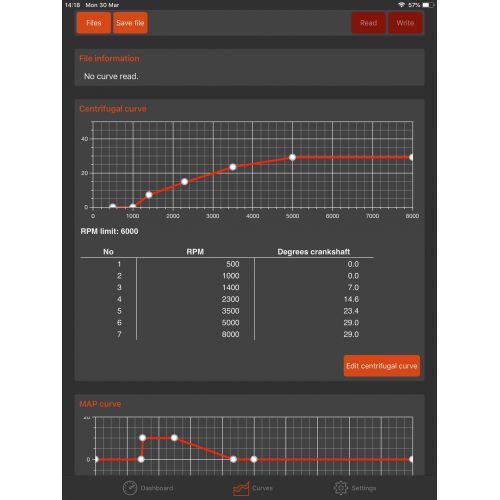

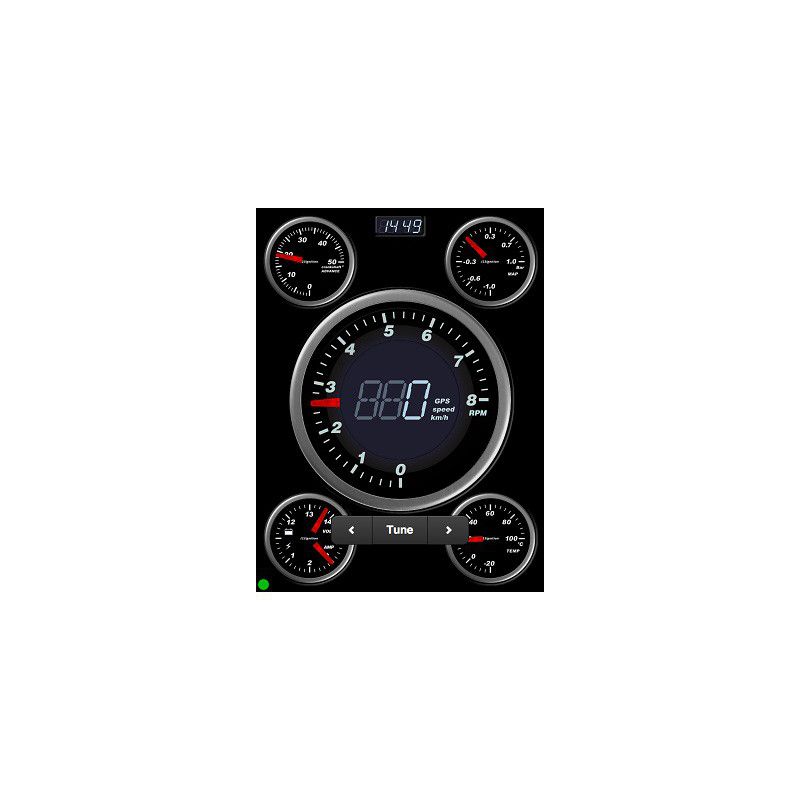

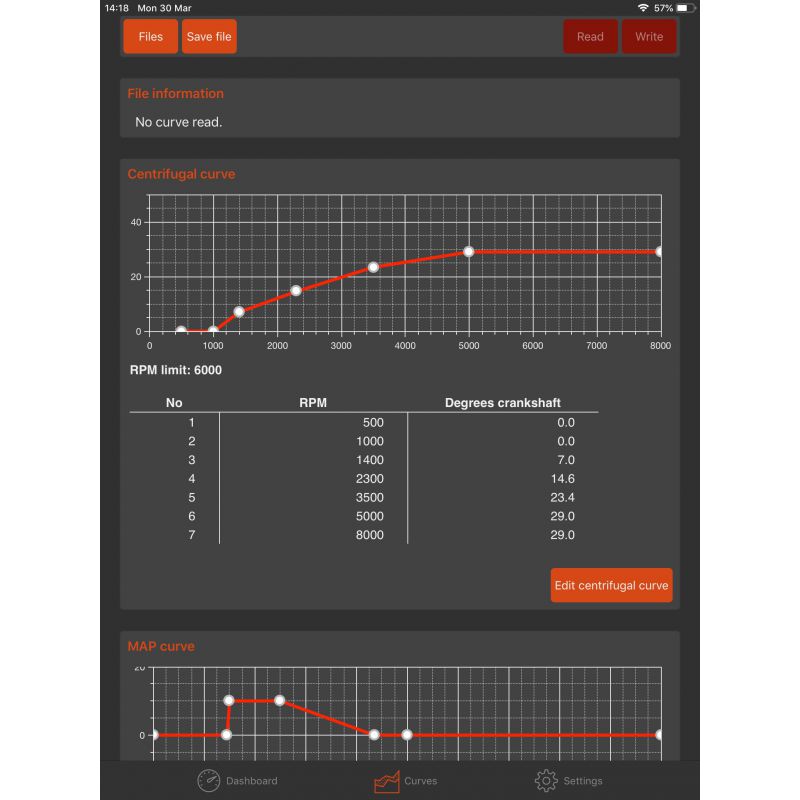

123ignition is proud to announce the first fully, via Bluetooth programmable ignition for the Citroën SM! Control your 123TUNE+ with your iOS/Android smartphone or tablet. The app makes it possible to adjust the ignition curve and shows an electronic dashboard. The Citroën SM tachometer can be directly controlled by this product without using any additional modules or modifying the original gauge.

Suitable for a Bosch D-jetronic injection system (a D-jetronic has 2 extra contact points for controlling the injection).

Includes a high energy coil for optimal performance.

Quantity
In stock

Get it on Google Play Download on the Apple Store

The wireless programmable 123TUNE+-6-R-V-SM-IE is designed for the Citroën SM, Maserati-Merak & Merak SS.

Suitable for a Bosch D-jetronic injection system (a D-jetronic has 2 extra contact points for controlling the injection).

123ignition is proud to announce the first fully, via Bluetooth programmable ignition for the Citroën SM! Control your 123TUNE+ with your iOS/Android smartphone or tablet. The app makes it possible to adjust the ignition curve and shows an electronic dashboard. The Citroën SM tachometer can be directly controlled by this product without using any additional modules or modifying the original gauge.

Please read the 123ignition installation manual carefully. The manual contains further information on ignition timing and advance curves, as well as specifications for the 123 ignition. The installation procedure to be followed for the 123 ignition system is also described step by step.

Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Soft REV-limiter, suitable for a Bosch D-jetronic injection system, tachometer output signal etc.

Includes a high energy coil for optimal performance.

Data sheet

Cylinders
6
Direction of rotation
CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft

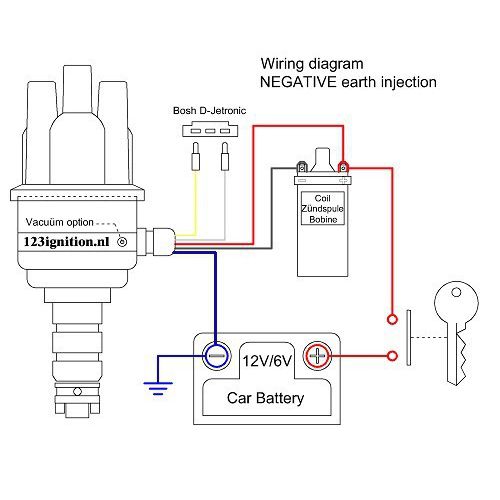

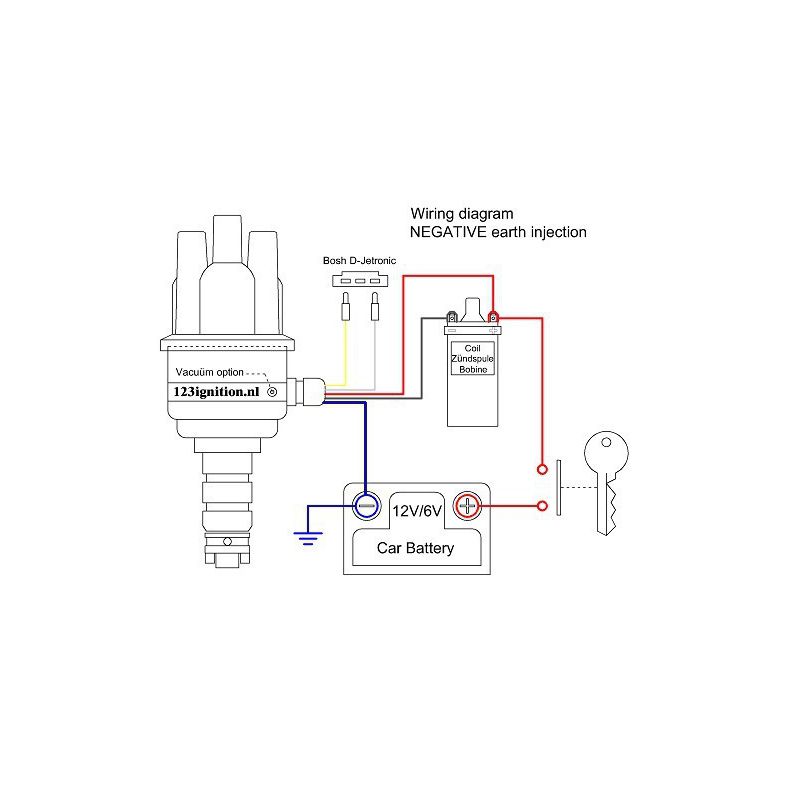

Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
