123/Porsche-4-R-V-IE system for Porsche 356/914 injection

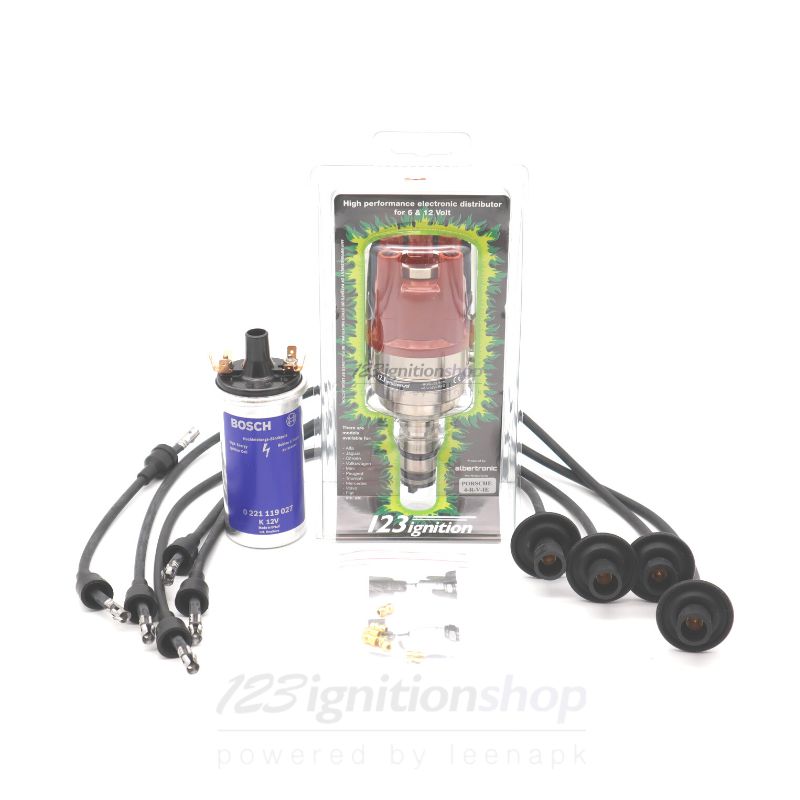

Now in one order: a 123/Porsche-4-R-V-IE distributor (injection)+ coil + spark plug wires.
note: set is suitable for 356/914, however since different spark plugs were used these are not included.
Suitable for a Bosch D-jetronic injection system (a D-jetronic has 2 extra contact points for controlling the injection)
Now in one order: a 123/Porsche-4-R-V-IE distributor (injection) + coil + spark plug wires.
The 123/Porsche-4-R-V-IE is a distributor, specifically intended for Porsche 356/914 with a Bosch D-jetronic injection system (a D-jetronic has 2 extra contact points for controlling the injection).
As used coils often were exposed to overheating in the past, the set contains a 123 Red Coil.

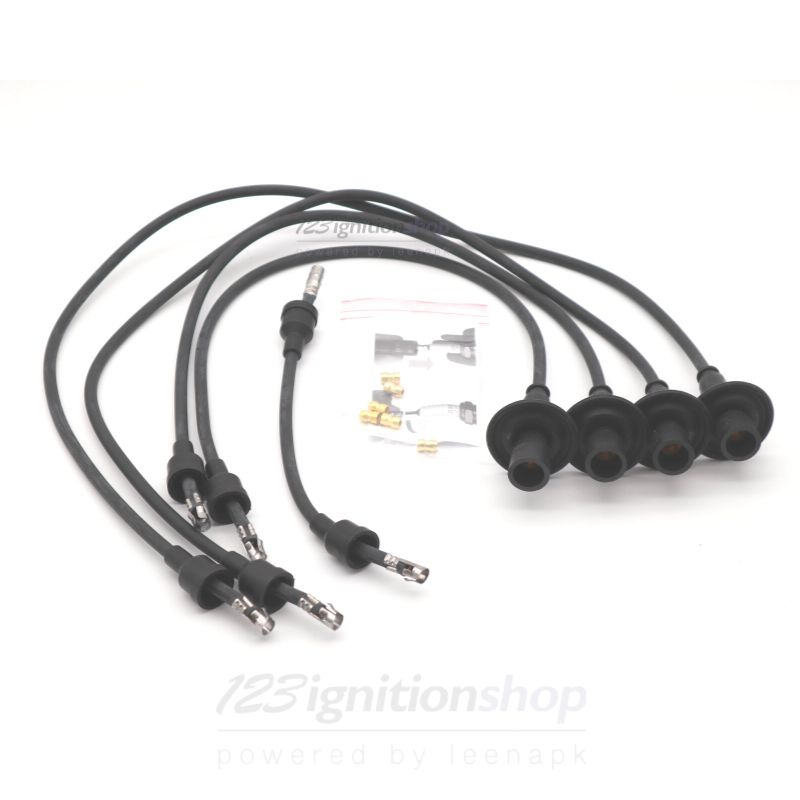

This set also offers new spark plug wires. Please note: spark plugs are not included.
Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
- Direction of rotation
- 4,0 - 15,0 volts
- 500 - 8000 rpm
- -30 to 100 Celsius
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Constant current, fully automatic
- After 1 second current is switched off
- Less than 0,5 degr. crankshaft
- With vacuum, also works without when not connected.
- Max. Advance
- 45 degr. crankshaft
- red +6V of +12V, black - coil
