• Pack

123/Porsche-4-R ignition system for Porsche 356/914 without vacuum

€326.45
VAT excluded

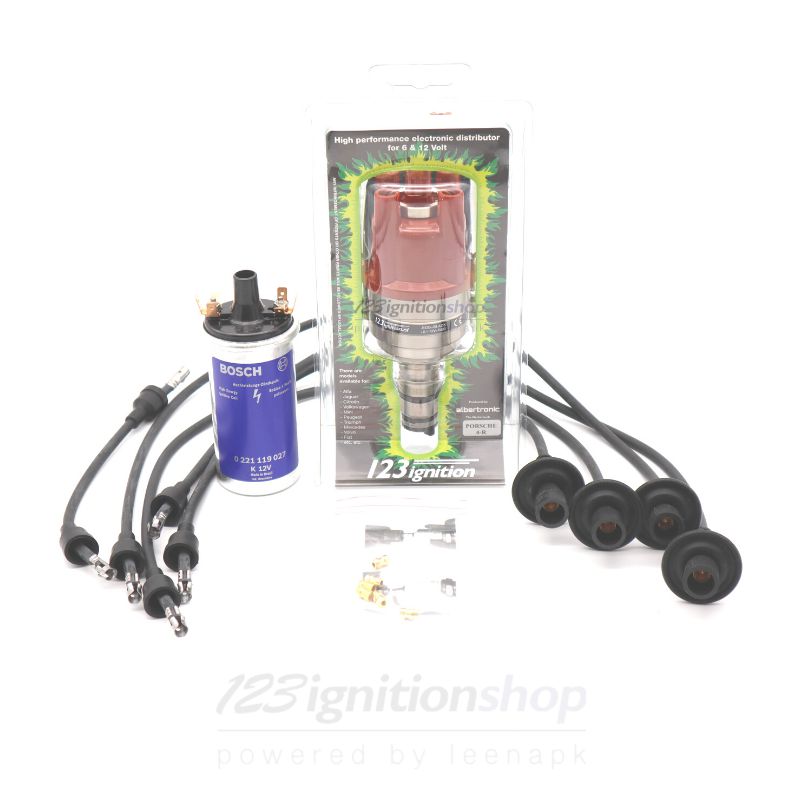

Now in one order: a 123/Porsche-4-R distributor (without vacuum advance) + coil + spark plug wires.

note: set is suitable for 356/914, however since different spark plugs were used these are not included.

Now in one order: a 123/Porsche-4-R distributor (without vacuum advance) + coil + spark plug wires.

The 123/Porsche-4-R is a distributor, specifically intended for Porsche 356/914 with an engine that does not need vacuum advance.

As used coils often were exposed to overheating in the past, the set contains a High Energy Coil 2020.

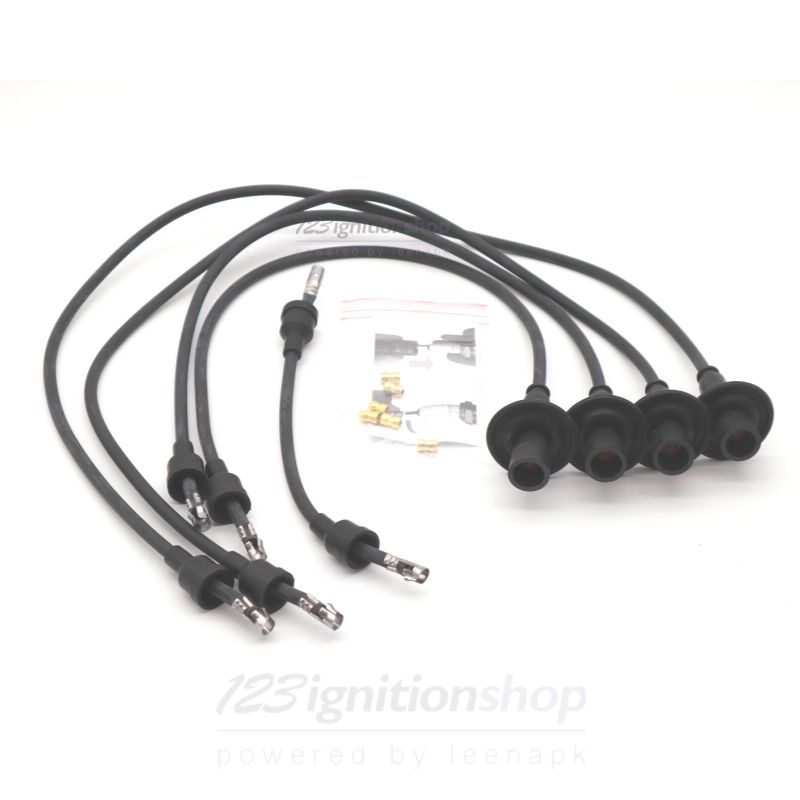

This set also offers new spark plug wires. Please note: spark plugs are not included.

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

B303

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft

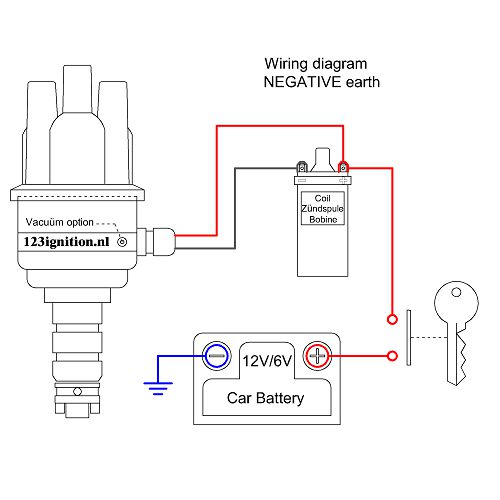

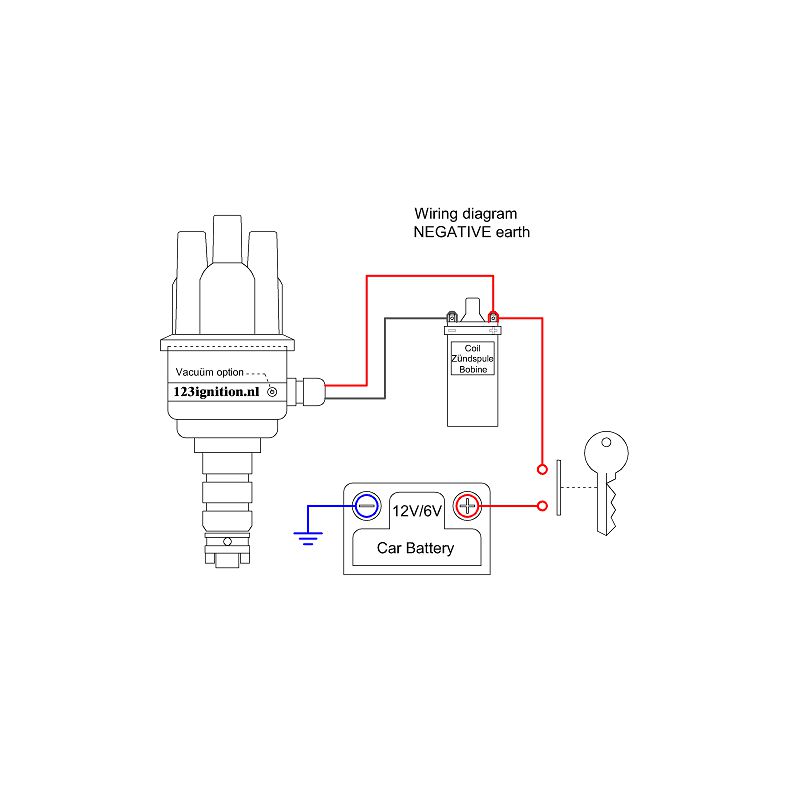

Wiring
red +6V of +12V, black - coil
