123/MERCEDES-6-R-V

€271.90
VAT excluded

The 123/MERCEDES-6-R-V is designed for W108, W109, W110, W111, W112, W113, W114, W123 and W130 6 cylinder engines, in the Mercedes: 220, 230, 230S, 230SL, 250, 250SL, 250SE, 250CE, 280, 280S, 280SE, 280SL, 300SE, 300SEL and 300SEb.

Quantity
In stock

The 123/MERCEDES-6-R-V distributor is designed for W108, W109, W110, W111, W112, W113, W114, W123 and W130 6-cyl. engines

The 123/MERCEDES-6-R-V distributor is designed for W108, W109, W110, W111, W112, W113, W114, W123 and W130 6-cyl. engines in the Mercedes:
- 220,
- 230, 230S, 230SL,
- 250, 250SL, 250SE, 250CE,
- 280, 280S, 280SE, 280SL,
- 300SE, 300SEL, 300SEb.

Please check the dimensions and pay special attention to the bottom part of the shaft. The 123/Mercedes-6-R-V does not have a cogwheel. When your original distributor does have one, you can't directly use the 123ignition, it has to be adapted.

Features of the 123/Mercedes-6-R-V electronic ignition

The unit offers a built-in LED for easy static timing and several different advance-curves.

It also offers:
- Vacuum advance
- Automatic dwell
- Spark balancing
- Automatic power-cut after 1 second
- Gear shift retard

Please note the following about the 123/Mercedes-6-R-V

For electronic driven fuel injected engines (that need a trigger pulse from the ignition) please order the 123/MERCEDES-6-R-V-IE.

When your original distributor is equipped with a cogwheel, the 123ignition first has to be mechanically adjusted before you can use it. Our fine-mechanic can make this adjustment, the costs of this will be 249 euro (21% VAT included). We'll need your original distributor to compare the dimensions and to re-use the cogwheel. Please send us a message by e-mail first.

Please read the installation manual carefully. It contains more information about motor- and distributor numbers, static timing and the advance-curves, the specifications of the 123ignition and a step-by-step description of the installation procedure.

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in the future. We recommend the High Energy Coil #2020.

Perhaps you will also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in combination with the 123ignitions we offer. For your Mercedes 280 you might need the WR6DC spark plugs if not we have got several other types listed at the spark plugs list.

Complete set

Now also the complete set can be ordered at once: a 123/Mercedes-6-R-V distributor + Bosch ignition coil red + set of 6 spark plugs WR6DC + spark plug cables!

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Optional. When not used, leave unconnected
Max. Advance
45 degr. crankshaft

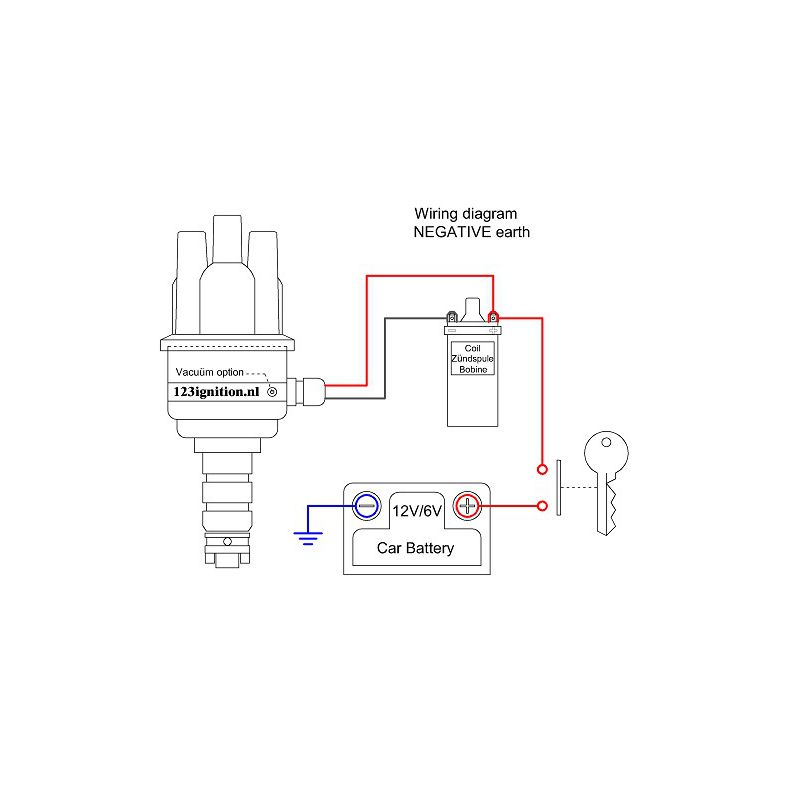

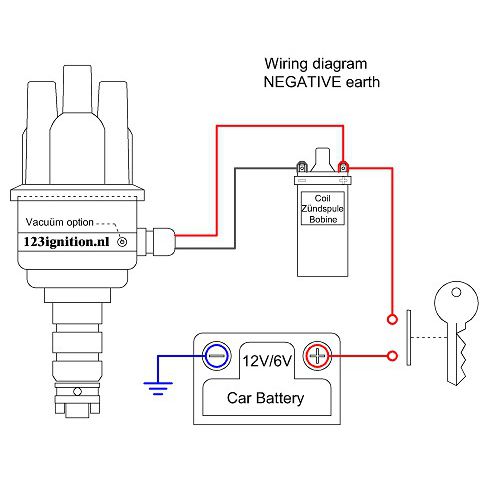

Wiring
red +6V of +12V, black - coil
Grade
2019-06-04

mercedes w114 blok 6cilinder 230

ik heb 123 onsteking gekocht .voor mijn mercedes w114 nu weet ik niet op wat voor curve hij moet staan.wie kan mij helpen . wij denken curve 6

Grade
2019-04-17

PH Garage

Exellent ignition system, reliable ,good performance, easy installation, some models may require more fine tuning for optimal performance anyway - nice to have in your old mercedes benz :)

Grade
2018-11-28

123 IGNITION

Voor het eerst dergelijke 123 ontsteking gemonteerd in combinatie met de rode BOSCH bobine
in een mercedes 230 SL uit 1963. Het resultaat is fantastisch ! Ik heb delco ingesteld volgens gegevens fabrikant , op curve nr 6 . De wagen start goed en zelfs met warme motor ! Vanaf 3000 tr/min trekt hij werkelijk door naar 4000 tr/min wat al hoog is voor dat type motor

Grade
2018-07-17

280sl

Super ontsteking...auto loop heel mooi rond geld meer dan waard

Grade
2017-11-03

Mercedes 220 s heckflosse

Bedankt leen apk voor de snelle en supergoede service.
Zeer mooi en goed product ,gemakkelijk te plaatsen en de auto rijd en start veel beter dan ooit .
Ik ben een zeer tevreden klant.

  • 1 out of 1 people found this review useful.
Grade
2017-09-09

Fantastic Product with Great Customer Service

Outstanding upgrade to a classic Mercedes ignition system. Easy installation, unquestionable reliability

  • 1 out of 1 people found this review useful.
Grade
2017-09-07

Fantastic Product from a Great Company!

Delighted to have bought my 123 ignition for my 280SL Mercedes from this fine company. The 123 ignition is the gold standard for quality ignition upgrades to any classic car and the customer service from Leen APK is beyond compare No classic car should be without 123 electronic ignition!!

  • 1 out of 1 people found this review useful.
Grade
2016-11-06

dhr

Prima ontsteking start beter loopt regelmatiger vooral op lpg veel beter aanrader!!!!

  • 1 out of 1 people found this review useful.
Grade
2016-01-29

Super product en super snelle service

Eenvoudige montage en werkt perfect.

  • 2 out of 2 people found this review useful.
