123/JAG-6-R-V-pos for Jaguar 6 cylinder (positive ground)

€385.00
VAT included

The 123/JAG-6-R-V is designed to improve the performance of the Jaguar 3.4, 3.8 and 4.2 litre, 6 cylinder XK-engines with positive ground.

Quantity
Ships within 1 week

The 123/JAG-6-R-V is designed to improve the performance of the Jaguar 3.4, 3.8 and 4.2 litre, 6 cylinder XK-engines with positive ground. These engines require more degrees advance.

When the maximum specified degrees advance (see last page of the installation manual) is more than you need, our advise is to order the 123-GB-6-R-V.

The unit offers 16 different advance-curves, which can be selected by means of a little switch. This is a great feature for easy fine-tuning your engine!

It also offers:
- Vacuum-advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please read the installation manual carefully. It contains more information about static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

Note: Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the 123 Red Coil.

Perhaps you'll also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in addition with the 123ignitions we offer. See: the spark plugs list.

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

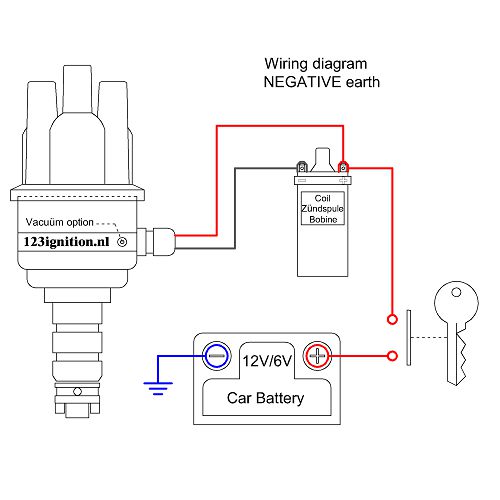

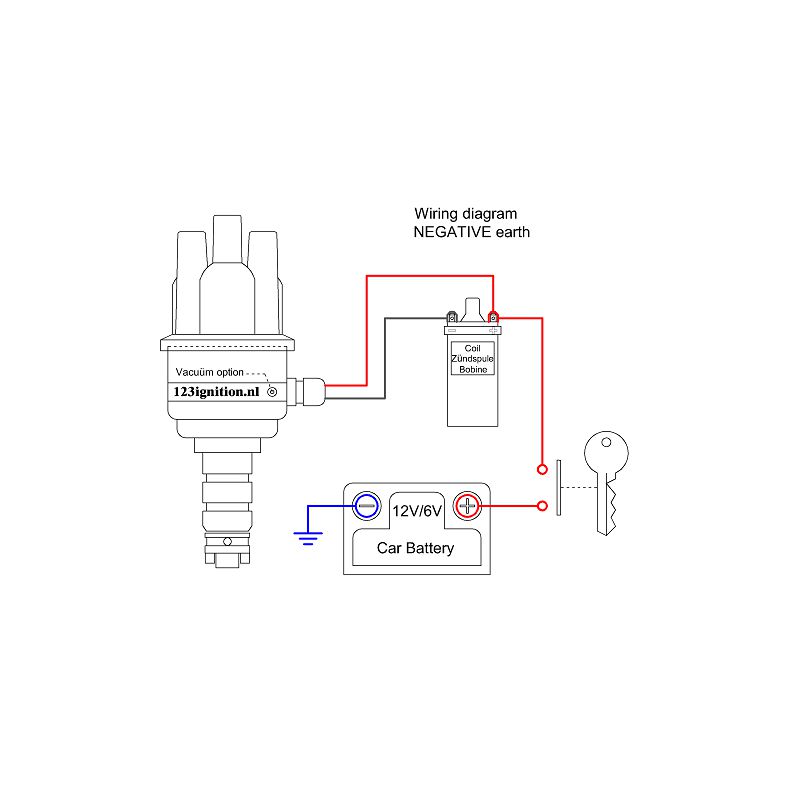

Wiring
red +6V of +12V, black - coil
