• Pack

123/EVO Ignition system

€392.56
VAT excluded

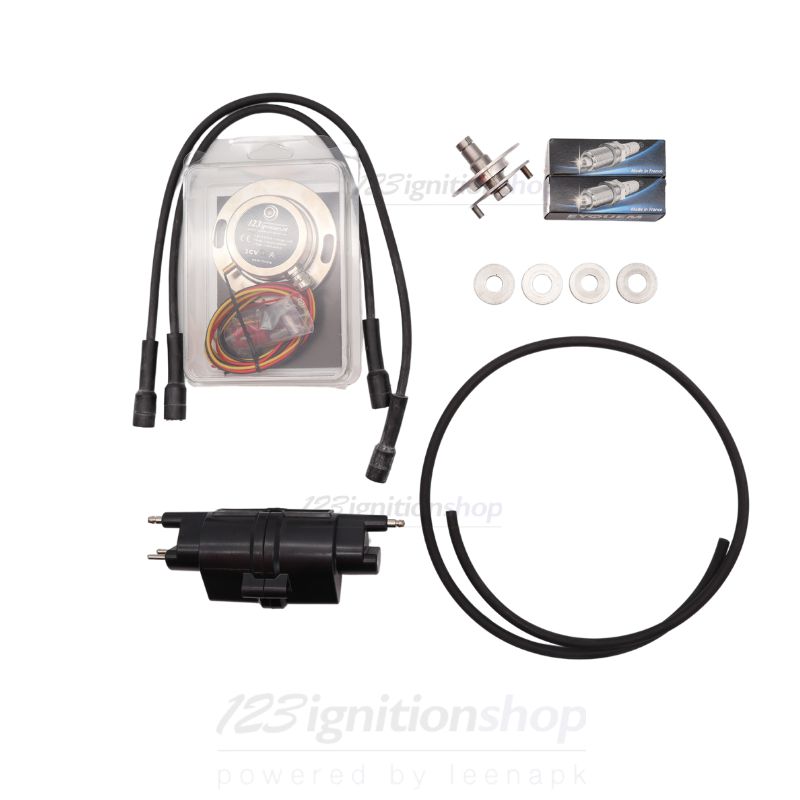

For your Visa engine, now all in one order: a 123/EVO 2CV distributor + vacuum hose + adaptor + distance rings +high efficiency coil + set of 2 spark plugs + spark plug wires.

For your Visa engine, now all in one order: a 123/EVO 2CV distributor + vacuum hose + adaptor + distance rings + high efficiancy coil + set of 2 spark plugs + spark plug wires.

The EVO 2CV model will replace all distributors as used in 2 cilinder Citroën models, including the one in the Visa (the Visa Adapter).

As used coils often were exposed to overheating in the past, the set contains the specially developed high efficiency 2CV coil.

This set also offers 2 spark plugs and new spark plug wires.

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

2CV

Data sheet

Cylinders
2
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft
Wiring

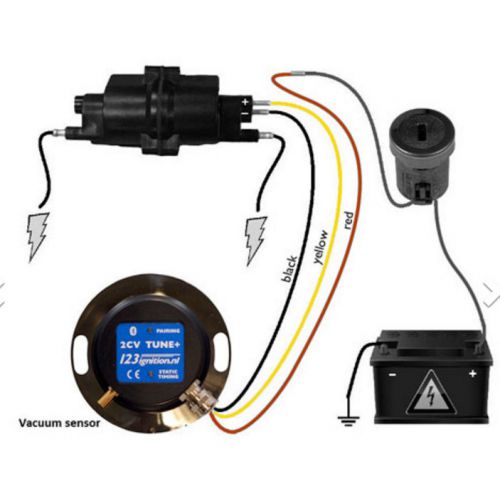

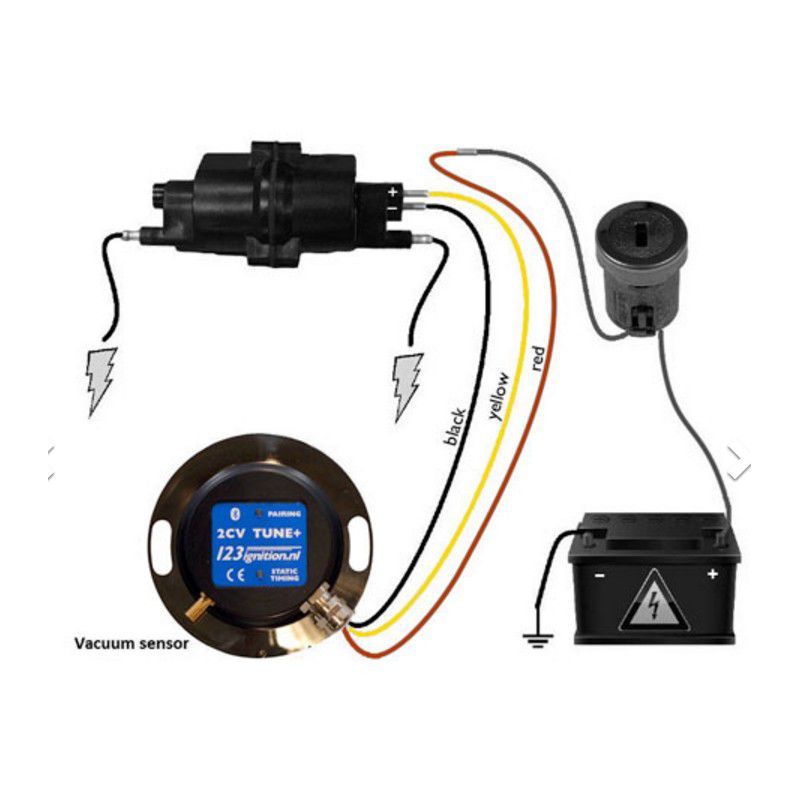

red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
