123/DS-R

€235.54
VAT excluded

Two curves are dedicated to the Traction-Avant engines, the 'Perfo' and the '11D'. For the 'H'-van there are two advance-curves too, both for the 'H78'-engine.

Distributor cap
Quantity
In stock

It contains all the curves for carburetor ID/DS engines as originally specified by Citroën, for cars manufactured after July 1959.

Two curves are dedicated to the Traction-Avant engines, the 'Perfo' and the '11D'.

For the 'H'-van there are two advance-curves too, both for the 'H78'-engine. One of these has a so-called 'rev-limiter', to prevent unwanted engine-damage.

With a switch you can easily choose the advance-curve that is specified for your specific engine. The unit offers a built-in LED for easy static timing and several different advance-curves. This is a great feature for easy fine-tuning your engine!

It also offers:
- Automatic dwell
- Automatic power-cut after 1 second

Specifically designed for the Traction Avant 6-cylinder 15D engine is the 123/SIX-R.

Other 123ignitions for ID and DS are:
- 123/DS-R-V with vacuum advance
- 123/DV-R for the ID-19B produced from 9-66 until 9-68 with a 'DV' engine
- 123/DS-IE-R to replace the original Bosch ZV11/7 A 3 A distributor

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

Note: Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend the High Energy Coil 2020.

Perhaps you will also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in addition with the 123ignitions we offer. See: the spark plugs list.

Complete set

Now also order the complete set in one go: a 123/DS-R distributor + Bosch Blue ignition coil + set of 4 spark plugs C42S + spark plug cables

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft

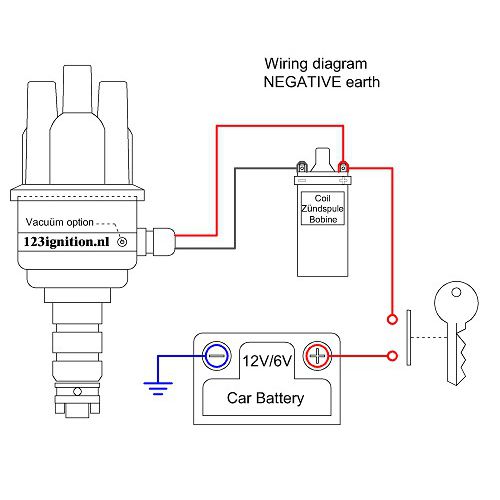

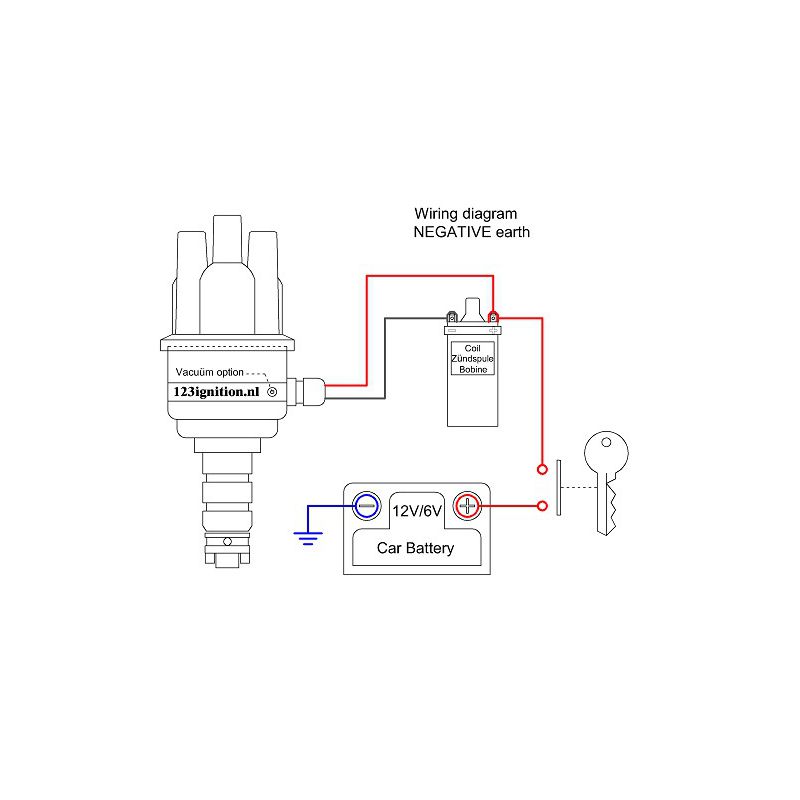

Wiring
red +6V of +12V, black - coil
