• Pack

123/DS-R complete system

€321.49
VAT excluded

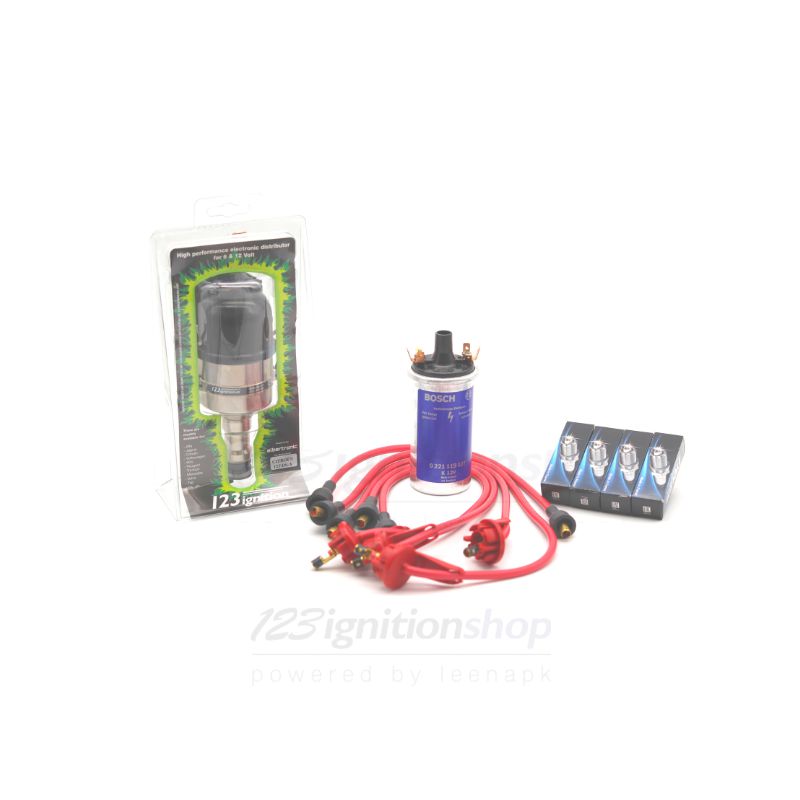

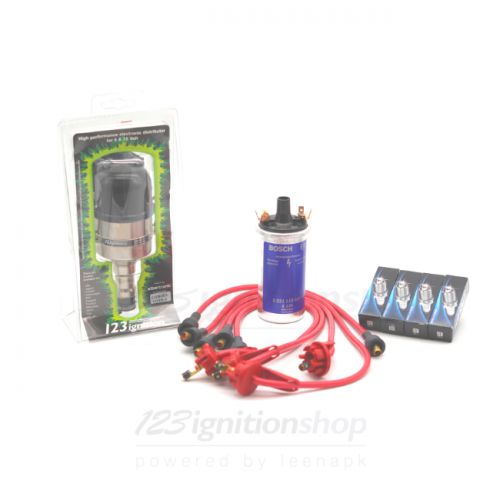

Now all in one order: a 123/DS-A distributor + coil + set of 4 spark plugs + spark plug wires.

Complete ignition system set for the Citroën ID/DS

Now all in one order: a 123/DS-A distributor + coil + set of 4 spark plugs + spark plug wires.

Content of the 123/DS-A 123ignition set

The 123/DS-A is a distributor, specifically intended for the Citroën ID/DS. It contains all the curves for carbureted ID/DS-engines as originally specified by Citroën, for cars manufactured after July 1959.

As used coils often were exposed to overheating in the past, the set contains a High Energy Coil 2020.

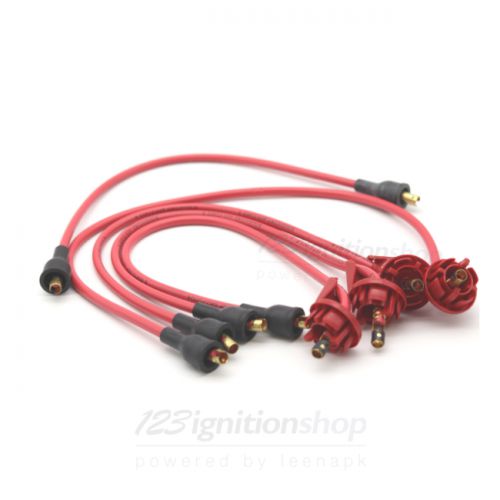

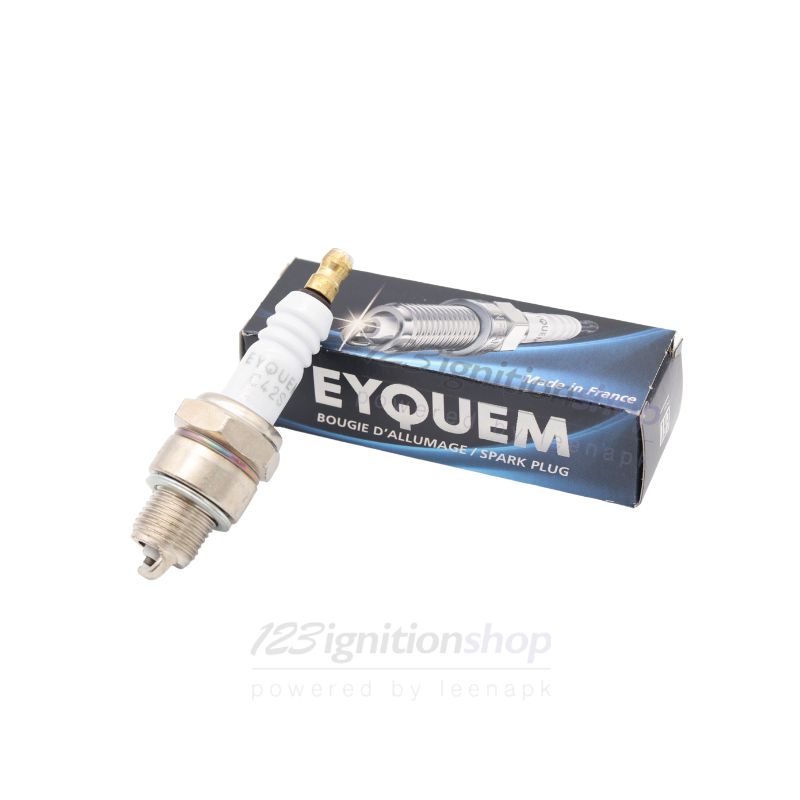

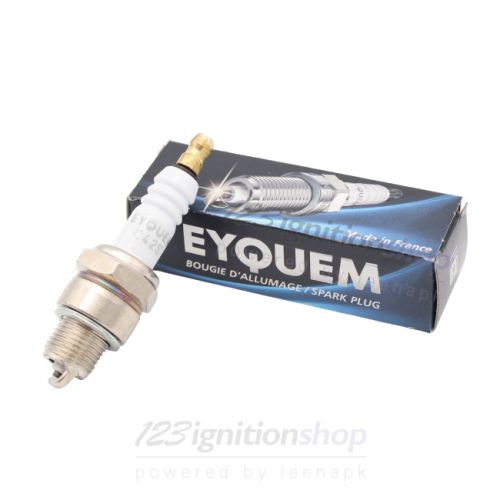

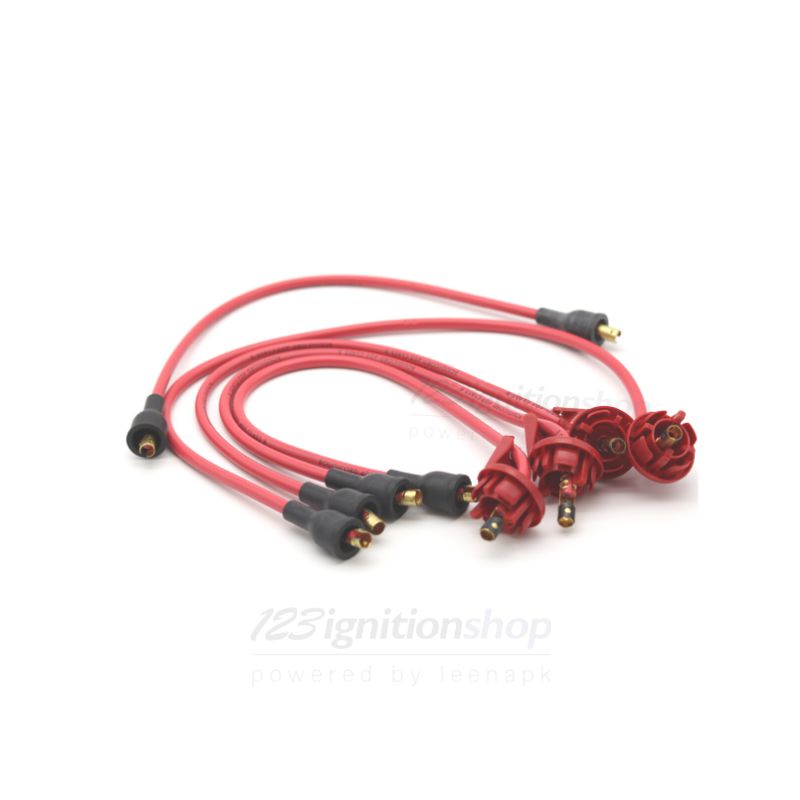

This set also offers 4 spark plugs and new spark plug wires.

Please note about the 123/DS-A set

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

DS/HY

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft

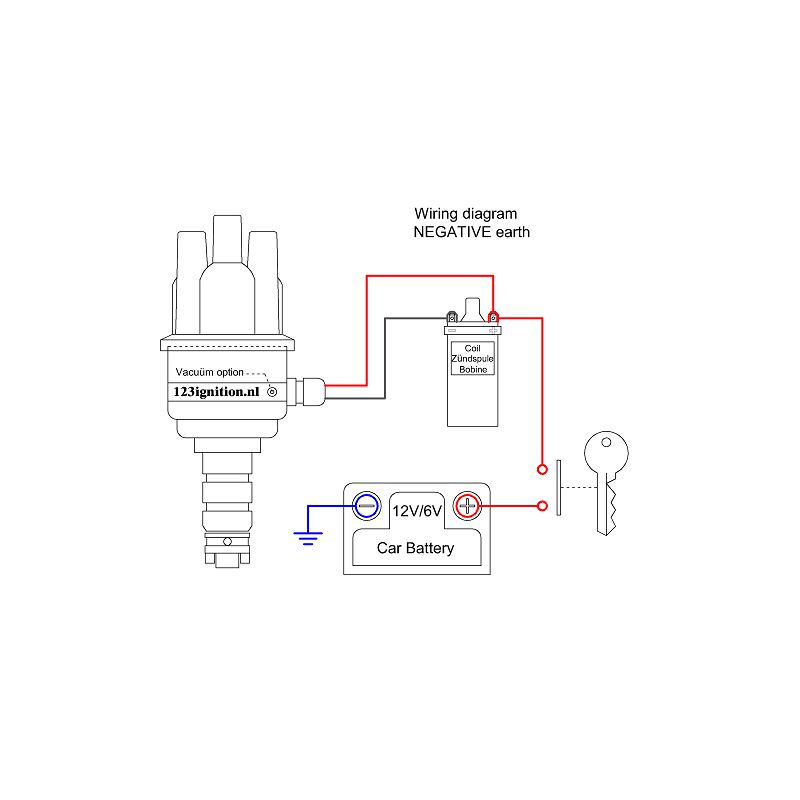

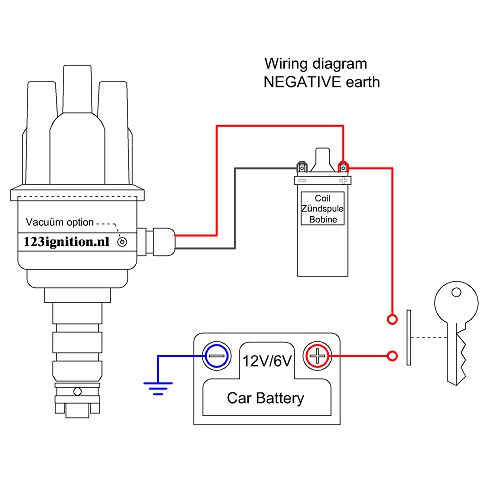

Wiring
red +6V of +12V, black - coil
Grade
2020-07-17

Niet evident

Geinstalleerd in een DS 21 (DX motor). Curve 9 gebruikt, maar dan was het nog een gedoe om de juiste positie te vinden. Wat meer correcte info in de gebruiksaanwijzing zou misschien helpen. Uiteindelijk werkt het wel prima, de oude delco was niet meer juist te regelen. PS: de bougies van Equiem niet gebruikt, teveel slechte ervaring mee.
