123/SIX-R

€329.00
VAT included

The 123/SIX-R is specifically designed for the Traction Avant 6 cylinder 15D engine. The ignition works on both 6 Volt and on 12 Volt systems, negative ground, and improves the inherently smooth running of a 6 cylinder engine even further.

Quantity
In stock

The 123/SIX-R is specifically designed for the Traction Avant 6 cylinder 15D engine.

The ignition works on both 6 Volt and on 12 Volt systems, negative ground, and improves the inherently smooth running of a 6 cylinder engine even further.

Fantastic torque-improvement is reported, and the 'original-look' of the 123ignition attracts 'SIX'-owners in particular.

It also offers:
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

For a 'Perfo' or '11D' Traction Avant Egine, please order a 123/DS-R.

Please read the installation manual carefully. It contains more information about the specifications of the 123ignition and a step-by-step description of the installation procedure.

Note: Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in future. We recommend our 123 Red Coil.

Perhaps you will also need new spark plugs? At 123ignitionshop we recently added the spark plugs most commonly used in addition with the 123ignitions we offer. See: the spark plugs list.

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
None
Max. Advance
45 degr. crankshaft

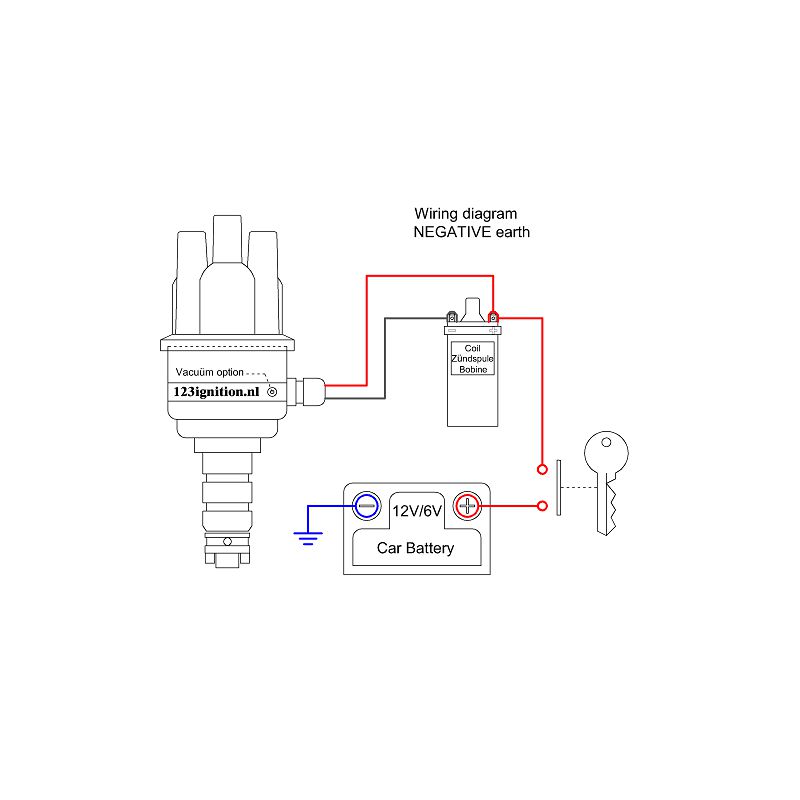

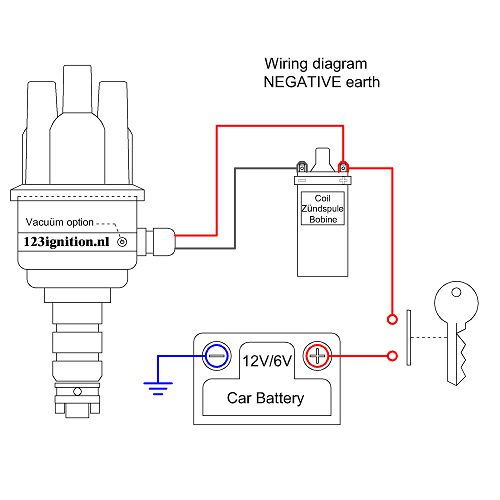

Wiring
red +6V of +12V, black - coil

No customer reviews for the moment.

Curve Advance starts
(rpm crankshaft)
Max. advance
(rpm / degree crankshaft)
Vacuum advance
starts (mmHg)
Vacuum advance
ends (mmHg / degr.)
Replaces Remark
0 500 4000 / 29,0 100 300 / 12,0 DUCELLIER type 559; SEV N 6 KY Modèles 'D' 'G' & 'H'
1 1000 3600 / 17,0 100 300 / 10,0 --- 2000 / 6,5
2 1000 3000 / 17,0 100 300 / 10,0 --- 2000 / 8,4
3 1000 2500 / 17,0 100 300 / 10,0 --- 2000 / 11,0
4 1000 4500 / 20,0 100 300 / 10,0 --- 2000 / 6,0
5 1000 4500 / 20,0 100 300 / 10,0 --- 2000 / 8,0
6 1000 4500 / 20,0 100 300 / 10,0 --- 2000 / 10,0
7 1000 4500 / 20,0 100 300 / 10,0 --- 2000 / 12,0
8 1000 4500 / 23,0 100 300 / 12,0 --- 2000 / 6,5
9 1000 4500 / 23,0 100 300 / 12,0 --- 2000 / 9,0
A 1000 4500 / 23,0 100 300 / 12,0 --- 2000 / 11,0
B 1000 4500 / 23,0 100 300 / 12,0 --- 2000 / 13,0
C 1000 4500 / 26,0 100 300 / 14,0 --- 2000 / 7,5
D 1000 4500 / 26,0 100 300 / 14,0 --- 2000 / 10,0
E 1000 4500 / 26,0 100 300 / 14,0 --- 2000 / 12,0
F 1000 4500 / 26,0 100 300 / 14,0 --- 2000 / 14,0
