123/GB-6-R-V-pos for 6 cylinder engine with positive ground Lucas distributor

€385.00
VAT included

The 123/GB-6-R-V-pos replaces most 6 cylinder Lucas distributors for engines in British (hence 'GB') cars and is now available with positive ground.

Quantity
In stock

The 123/GB-6-R-V-pos distributor replaces most 6 cylinder Lucas distributors with positive earth

The unit offers 16 different advance-curves, which can be selected by means of a small switch. This is a great feature to easily fine-tune your engine!

Features of the 123ignition 123/GB-6-R-V-pos

- Vacuum-advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard

Please note the following about the 123/GB-6-R-V-pos

We strongly advise you to check the dimensions of the 123/TUNE+ with the original distributor.

The 123/GB-6-R-V-pos is a 123ignition that has vacuum advance. If you don't need this, you can contact us to order a 123/GB-6-R-pos (WITHOUT vacuum advance). As this 'special' is not often used, we don't have it in stock and you can only get it at special request. The 123/GB-6-R-pos costs €20,- less than the 123/GB-6-R-V-pos.

Please read the installation manual carefully. It contains more information about static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

Coils and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never overheat again in the future. We recommend the 123 Red Coil.

Perhaps you will also need new spark plugs? At 123ignitionshop we have recently added the spark plugs most commonly used in addition to the 123ignitions we offer. See: the spark plugs list.

Data sheet

Cylinders
6
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
With vacuum, also works without when not connected.
Max. Advance
45 degr. crankshaft

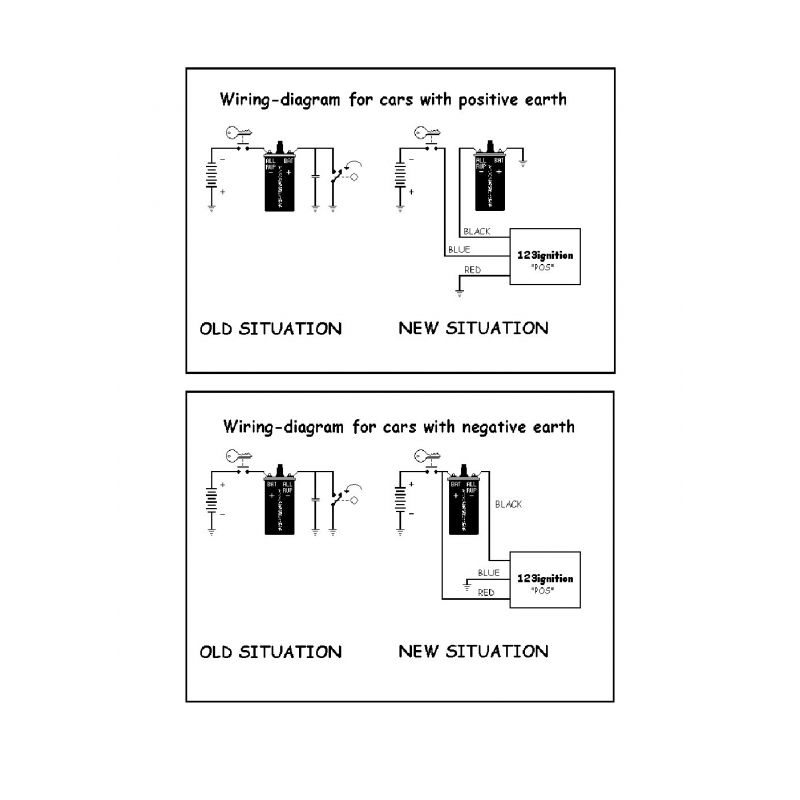

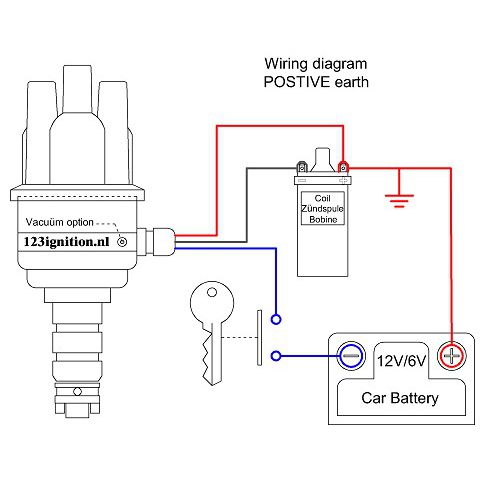

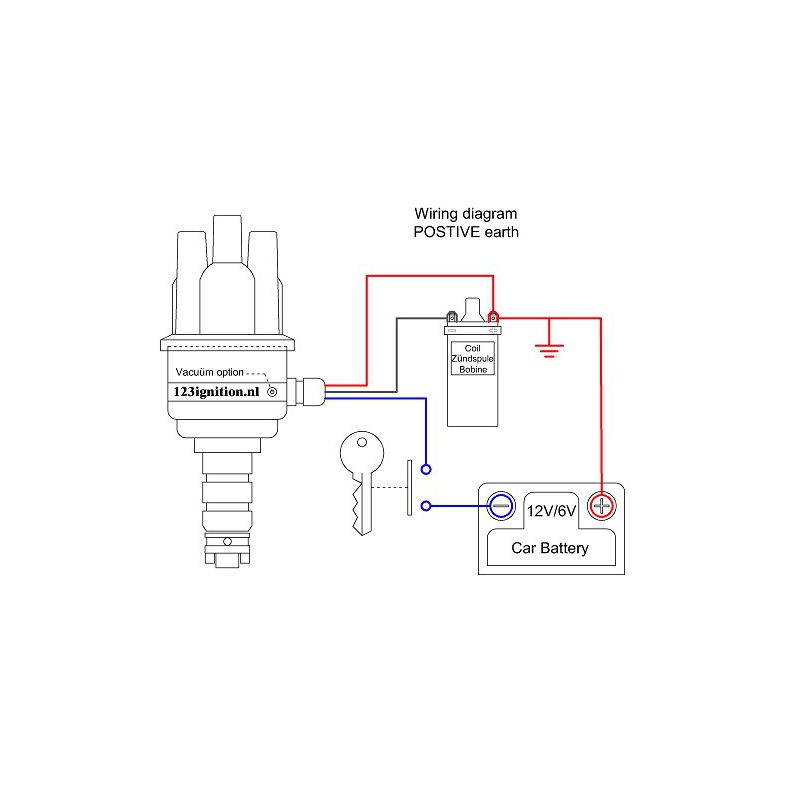

Wiring
red +6V of +12V, black - coil

No customer reviews for the moment.

Curve Advance starts
(rpm crankshaft)
Max. advance
(rpm / degree crankshaft)
Vacuum advance
starts (mmHg)
Vacuum advance
ends (mmHg / degr.)
Replaces Remark
0 1000 4200 / 17,0 100 300 / 10,0 LUCAS 2000 / 5,0
1 1000 3600 / 17,0 100 300 / 10,0 LUCAS 2000 / 6,5
2 1000 3000 / 17,0 100 300 / 10,0 LUCAS 2000 / 8,4
3 1000 2500 / 17,0 100 300 / 10,0 LUCAS 2000 / 11,0
4 1000 4500 / 20,0 100 300 / 10,0 LUCAS 2000 / 6,0
5 1000 4500 / 20,0 100 300 / 10,0 LUCAS 2000 / 8,0
6 1000 4500 / 20,0 100 300 / 10,0 LUCAS 2000 / 10,0
7 1000 4500 / 20,0 100 300 / 10,0 LUCAS 2000 / 12,0
8 1000 4500 / 23,0 100 300 / 12,0 LUCAS 2000 / 6,5
9 1000 4500 / 23,0 100 300 / 12,0 LUCAS 2000 / 9,0
A 1000 4500 / 23,0 100 300 / 12,0 LUCAS 2000 / 11,0
B 1000 4500 / 23,0 100 300 / 12,0 LUCAS 2000 / 13,0
C 1000 4500 / 26,0 100 300 / 14,0 LUCAS 2000 / 7,5
D 1000 4500 / 26,0 100 300 / 14,0 LUCAS 2000 / 10,0
E 1000 4500 / 26,0 100 300 / 14,0 LUCAS 2000 / 12,0
F 1000 4500 / 26,0 100 300 / 14,0 LUCAS 2000 / 14,0
