• Pack

2CV complete system

€275.00

Instead of €287.50

VAT included

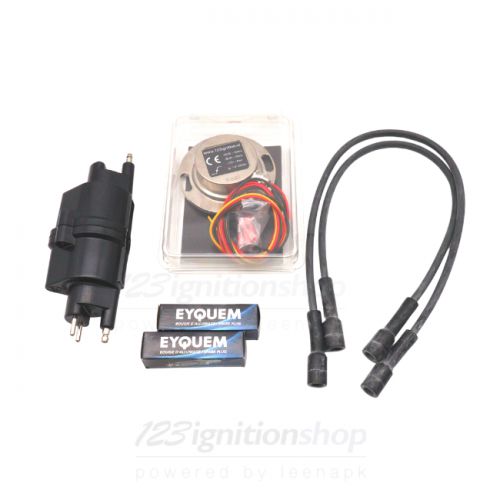

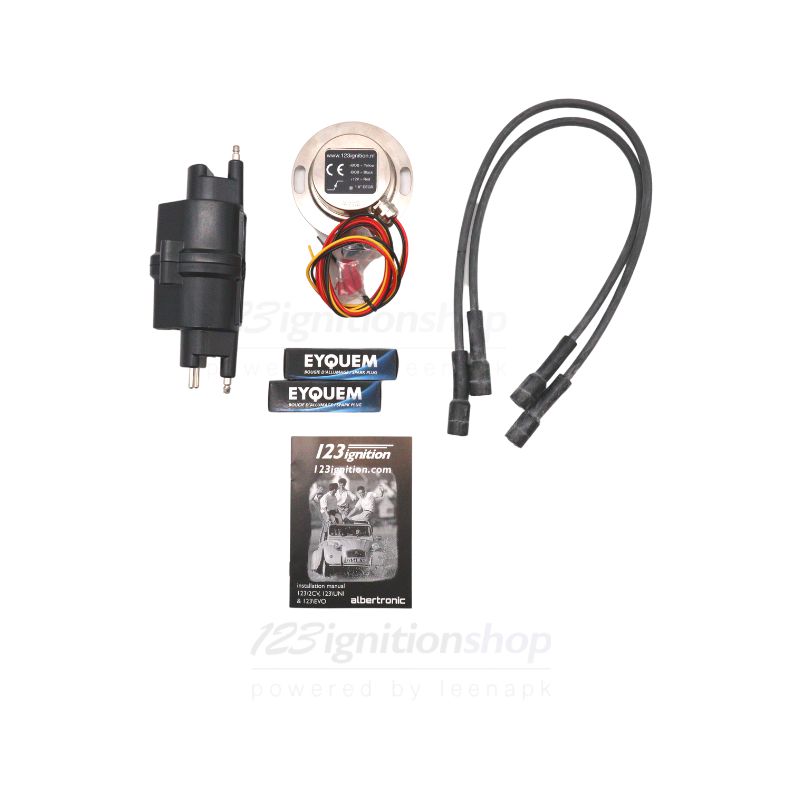

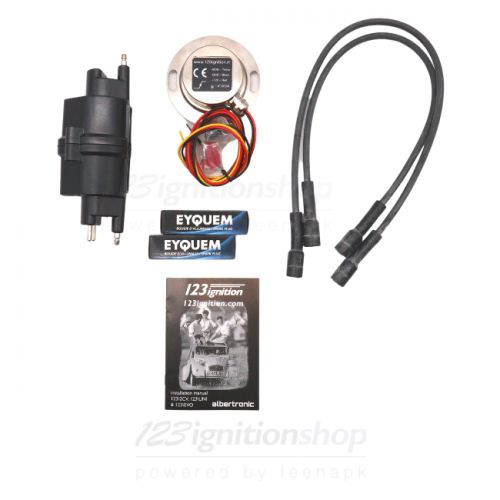

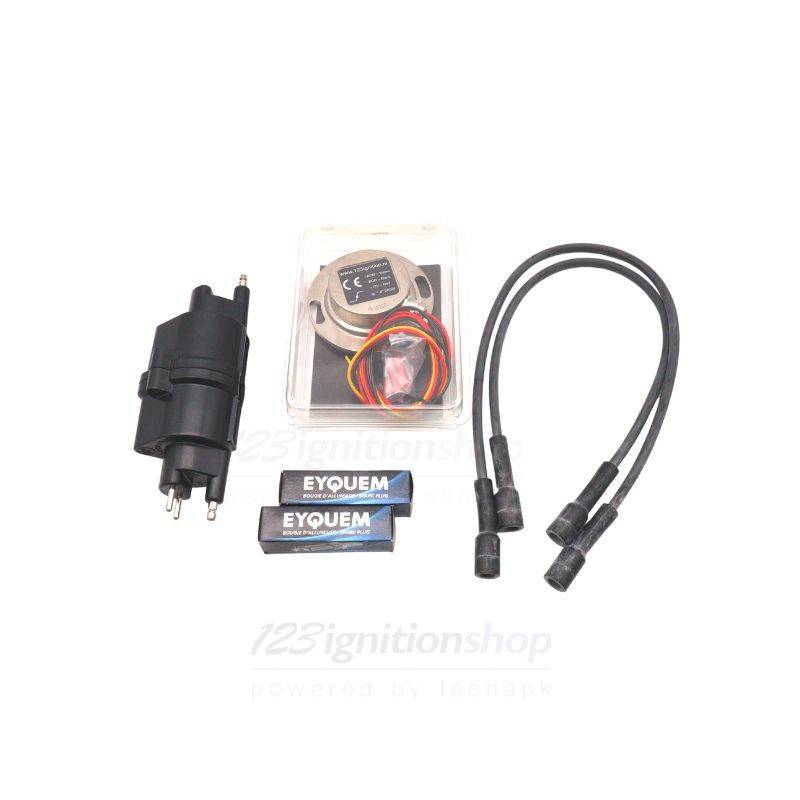

For your 2CV engine, now all in one order: a 123/2CV distributor + high efficiency coil + set of 2 spark plugs + spark plug wires.

This pack contains

Quantity
Add to Compare
In stock

For your 2CV engine, now all in one order: a 123/2CV distributor + high efficiancy coil + set of 2 spark plugs + spark plug wires.

The 123/2CV model will replace all distributors as used in 2 cilinder Citroën models.

For the Visa engine you will need an extra adapter, you can find a complete set for a Visa engine on the following page:

123/EVO Ignition system

As used coils often were exposed to overheating in the past, the set contains the specially developed high efficiency 2CV coil.

This set also offers 2 spark plugs and new spark plug wires.

Please read the installation manual carefully. It contains more information on engine- and distributor numbers, static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.

2CV + A20

Data sheet

Cylinders
2
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft
Wiring

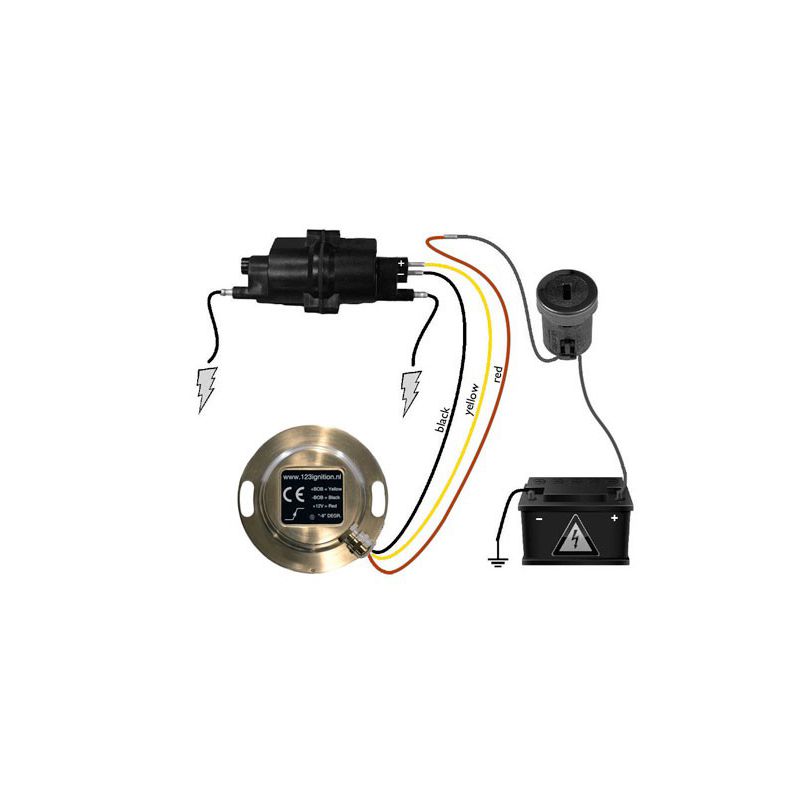

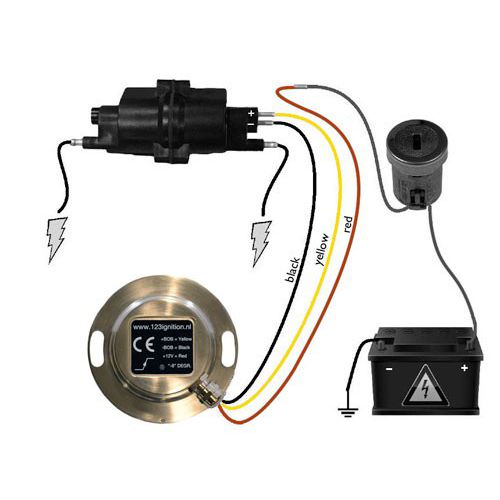

red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app
