123/TUNE+ 4-R-V-DUC (bluetooth)

€329.75
VAT excluded

Tuning your engine using your own tablet or smartphone? The TUNE+ is the first wireless electronic ignition that you can program yourself using your iOS or Android Bluetooth 4.0 devices. The free App enables you to adjust the advance curve. It shows an electronic dashboard. Within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!

The "DUC" model will replace most Ducellier distributors, used in Peugeot and Citroën (DS and C35) (please check dimensions before ordering).

Distributor cap
Quantity
In stock

Get it on Google Play Download on the Apple Store

123/TUNE+ programming wireless

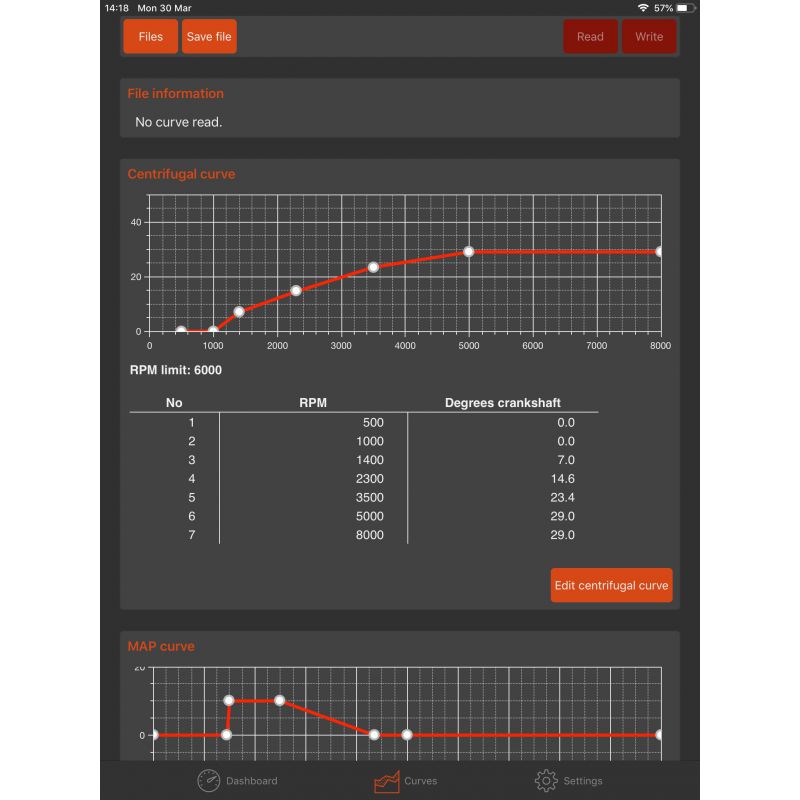

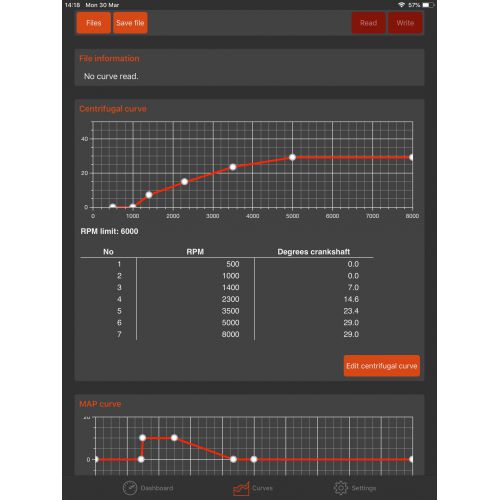

After installing the free app and making the Bluetooth connection you can enter the values: at which RPM do you need how many degrees crankshaft? In this way you will easily program your ideal advance curve with your smartphone or tablet.

The app enables you to adjust the advance curve, it shows an electronic dashboard and within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!

Model "DUC" for Ducellier distributors

The "DUC" model will replace most Ducellier distributors, used in Peugeot and Citroën (DS and C35) (please check dimensions before ordering).

Features of the 123/TUNE+ 4-R-V-DUC

- Rotation CW and CCW (auto detect)
- For 6 Volt and/or 12 Volt cars (auto detect)
- Variable dwell constant current, fully automatic (auto detect)
- Coil current protection time-out after 1 second (auto detect)
- For positive and negative earth cars
- Programmable centrifugal advance curve (500 to 8000 rpm)
- Programmable vacuum-advance and boost-retard curve (0 to 200 kPa or -30 inHg to +15 psi)
- Rev limiters (advanced random spark stealing)
- Real-time tuning (ideal for working on atest bench)

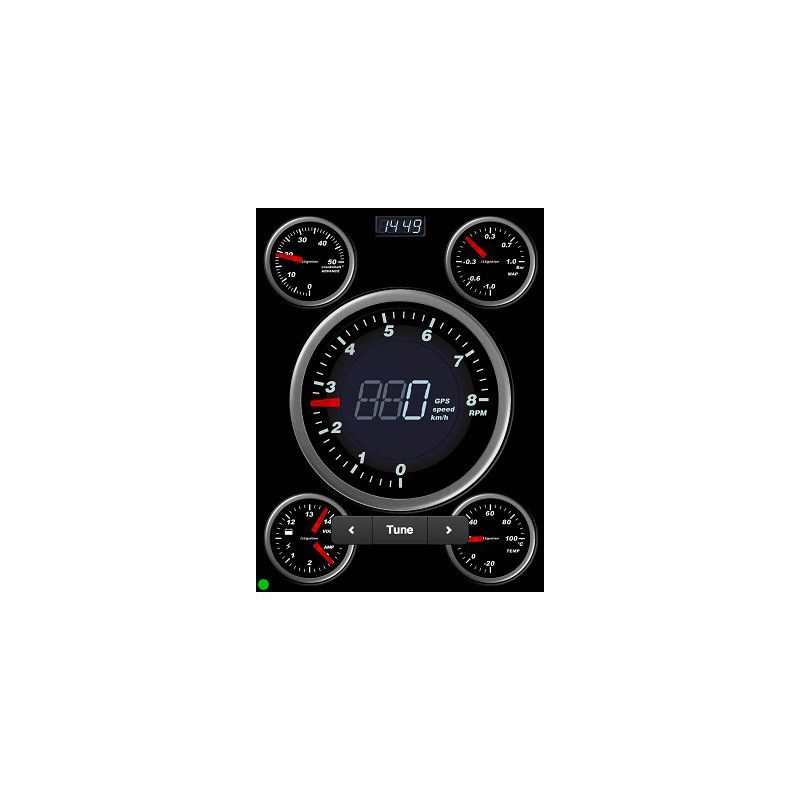

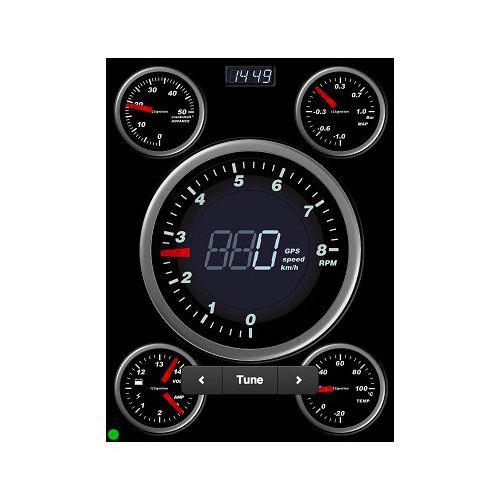

Your smartphone or tablet will show you

- Temperature gauge (selectable in degrees Celsius or Fahrenheit)
- Manifold pressure (selectable in Bar or inches Hg/Psi)
- Tachometer (0 to 8000 rpm crankshaft)
- Spark-energy gauge (primary coil current)
- Total-advance gauge (in degrees crankshaft)
- Battery voltage
- GPS speed

Please note before ordering the TUNE+

We strongly advise you to check the dimensions of the 123/TUNE+ with the original distributor cap AND to carefully read the installation manual before you order! In the installation manual you will find more information and a few examples with a step by step explanation on how to install and program the 123/TUNE+.

The TUNE+ will run on all iOS and Android devices with Bluetooth 4.0 (or higher).

Coil and spark plugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never overheat again in the future. Of course you can also easily order this here, we recommend the High Energy Coil 2020.

Perhaps you will also need new spark plugs? At 123ignitionshop we have added the spark plugs most commonly used in addition to the 123ignitions we offer. See: the spark plugs list.

Data sheet

Cylinders
4
Direction of rotation
CW/CCW
Voltage
4,0 - 15,0 volts
Range
500 - 8000 rpm
Temperature
-30 to 100 Celsius
Coil
Stock or high energy coil, primary coil NOT below 1,0 ohm
Dwell
Constant current, fully automatic
Time-out
After 1 second current is switched off
Accuracy
Less than 0,5 degr. crankshaft
Vacuum
Programmable: -20 / +20 degrees.
Max. Advance
45 degr. crankshaft

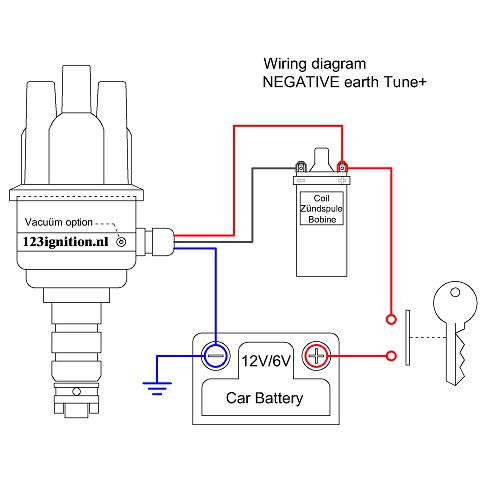

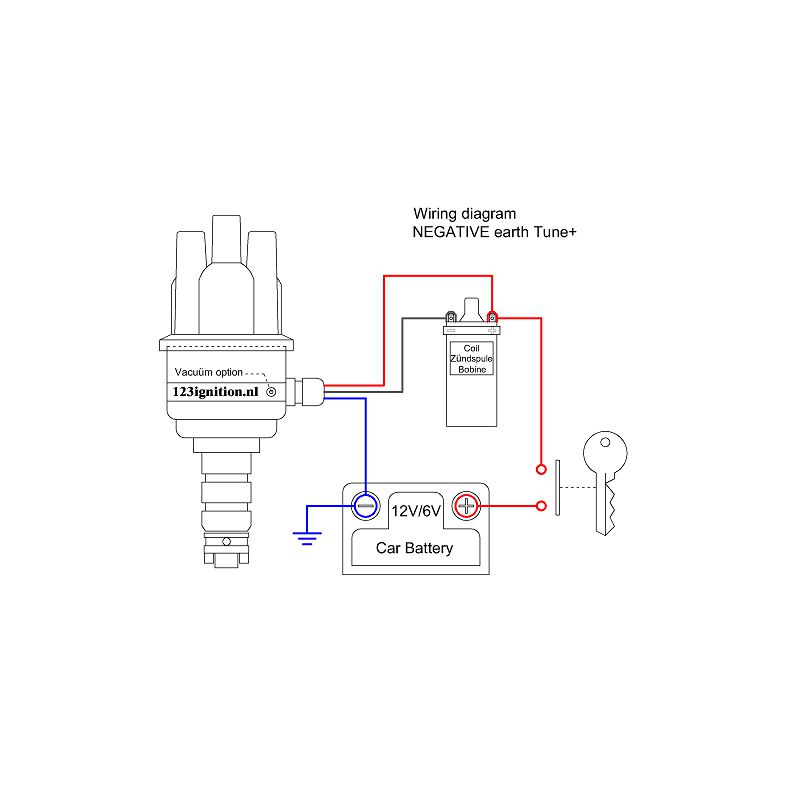

Wiring
red +6V or +12V, black '-' ignition coil, blue chassis ground
Earth type
Suitable for negative and positive earth systems
Curve
Wirelessly programmable with Android or iOS app

Download

Citroën Avant Perfo

4-cyl. Longstroke engine produced until May 1955

Download (1.26k)

Citroën Avant 11D

4-cyl. Longstroke engine produced after June 1955

Download (1.27k)

Citroën DS

123/Citroën Curve "2" | To Febr. 1964 | Ducellier 3941A & 4931A | SEV-Marchal N4C-FG/LB

Download (1.25k)

Citroën DS

123/Citroën Curve "3" | DS From 7/1959 To 9/1965 | ID From 2/1964 To 9/1964 | Ducellier 3941B & 3944A | SEV-Marchal N4-YG & N41C-YG/LB

Download (1.39k)

Citroën DS 21

Without Vacuum Advance

Download (1.67k)
Grade
2020-08-09

Werkt zoals verwacht

Problemen met de ontsteking opgelost en gedaan met het hopeloos geknoei met de ontsteking. Na een uurtje rijdt mijn Citroën hy van 1968 met h78 blok beter dan ooit voordien.

Grade
2020-07-15

Funktioniert super!

Habe die Zündung in einem Peugeot 205 1.9 rallye verbaut. Buchse habe ich selber gefertigt, ist gegen Rücksprache aber auch beim Hersteller zu bekommen.
Bin sehr zufrieden!!!
