123/TUNE+ 6-R-V-M20 (bluetooth)
Tuning your engine using your own tablet or smartphone? The TUNE+ is the first wireless electronic ignition that you can program yourself using your iOS or Android Bluetooth 4.0 devices. The free app enables you to adjust the advance curve. It shows an electronic dashboard. Within the settings there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!

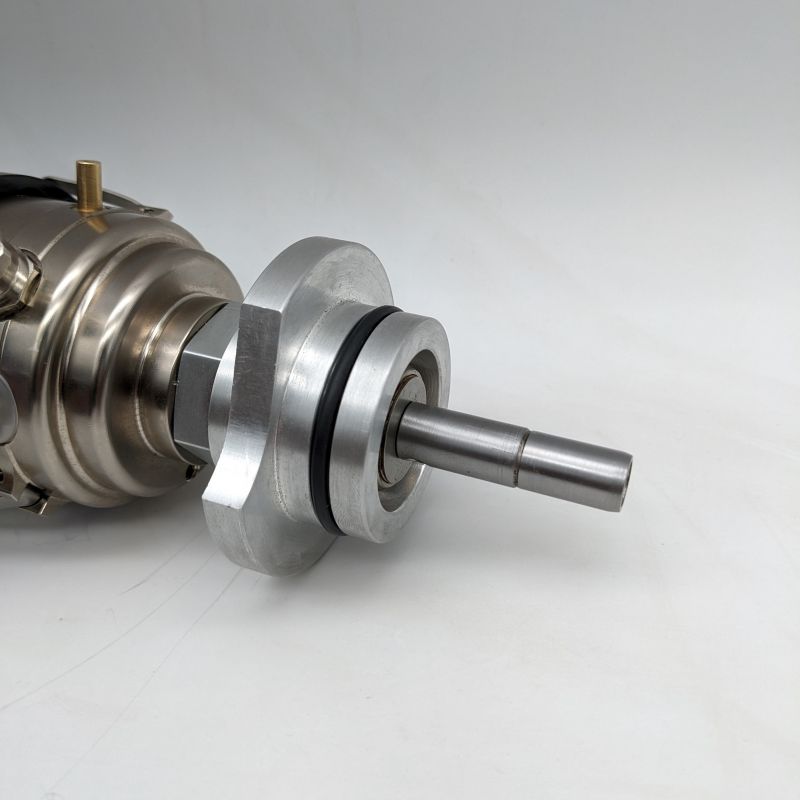

Model "6-R-V-M20" replaces the original distributors used by BMW in the M20 engines.
For this installation you will need to repurpose the cogwheel from the original distributor.
For this installation you will need to repurpose the cogwheel from the original distributor. This will fit onto the 6-R-V-M20, but will not be supplied along with it.
123/TUNE+ programming wireless

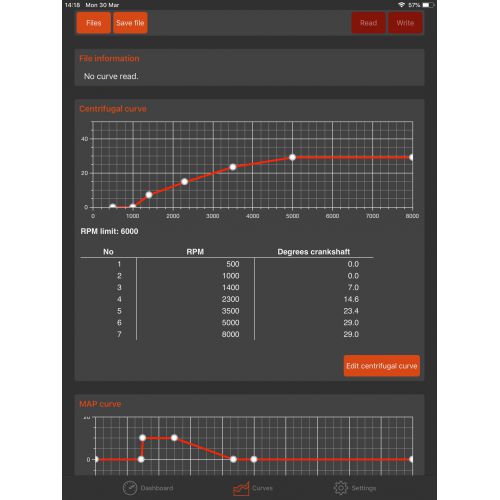

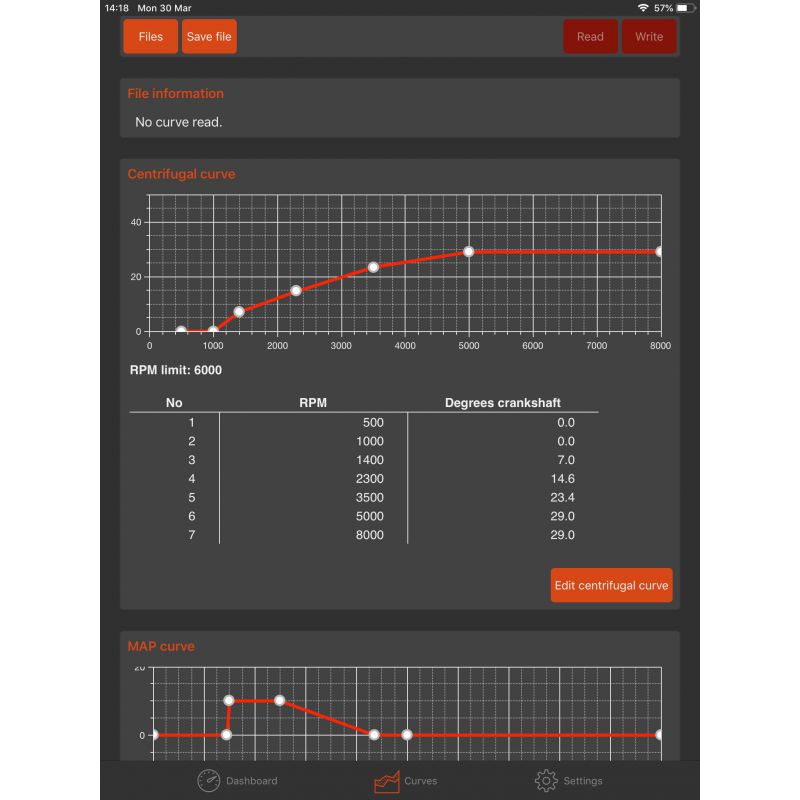

After installing the free app and making the Bluetooth connection you can enter the values: at which RPM do you need how many degrees crankshaft? This way you can easily program your ideal advance curve with your smartphone or tablet.
The app enables you to adjust the advance curve, and also shows an electronic dashboard. Within the settings, there is also an immobilizer integrated to secure your car with a state-of-the-art anti-theft system!
Model "M20" for Bosch distributors in BMW M20 engines
Model "M20" replaces the Bosch distributors, as used by BMW in the M20 engines. The 123/TUNE+ 6-R-V-M20 for 6 cylinders is supplied with a straight cap.
The M20 engine has been used by BMW in the following models:
- BMW 323i
- BMW e12 520/6
- BMW e21 320/6
Features of the 123/TUNE+ 6-R-V-M20
- Rotation CW and CCW (auto detect)
- For 6 Volt and/or 12 Volt cars (auto detect)
- Variable dwell constant current, fully automatic (auto detect)
- Coil current protection time-out after 1 second (auto detect)
- For positive and negative earth cars
- Programmable centrifugal advance curve (500 to 8000 rpm)
- Programmable vacuum-advance and boost-retard curve (0 to 200 kPa or -30 inHg to +15 psi)
- Rev limiters (advanced random spark stealing)
- Real-time tuning (ideal for working on a test bench)

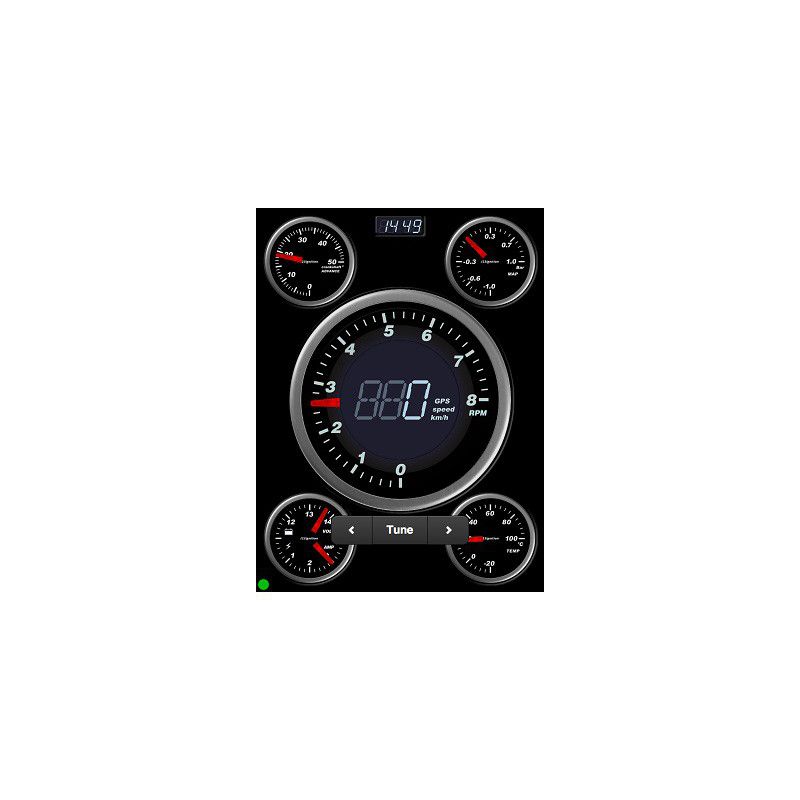

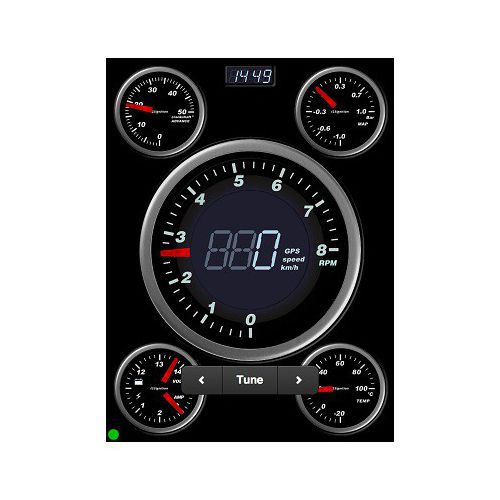

Your smartphone or tablet will show you
- Temperature gauge (selectable in degrees Celsius or Fahrenheit)
- Manifold pressure (selectable in Bar or inches Hg/Psi)
- Tachometer (0 to 8000 rpm crankshaft)
- Spark-energy gauge (primary coil current)
- Total-advance gauge (in degrees crankshaft)
- Battery voltage
- GPS speed
Please note before ordering the TUNE+

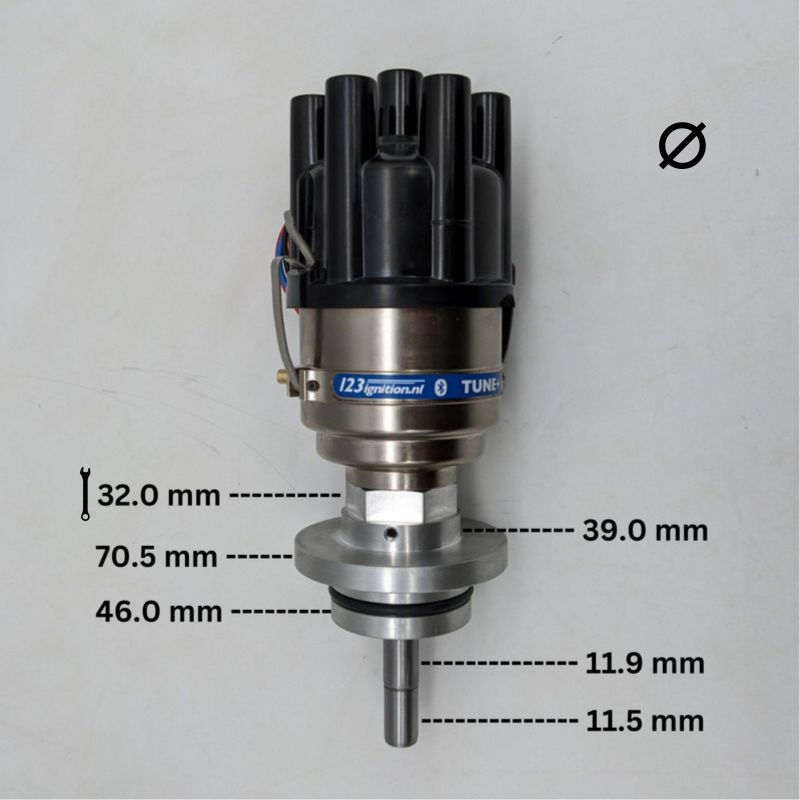

We strongly advise you to check the dimensions of the 123/TUNE+ with the original distributor cap AND to carefully read the installation manual before you order! In the installation manual you will find more information and a few examples with a step by step explanation on how to install and program the 123/TUNE+.
The TUNE+ will run on all iOS and Android devices with Bluetooth 4.0 (or higher).
Coil and spark plugs
Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never overheat again in the future. Of course you can also easily order this here, we recommend the 123 Red Coil.
Perhaps you will also need new spark plugs? At 123ignitionshop we have added the spark plugs most commonly used in addition to the 123ignitions we offer. See: the spark plugs list.
- Direction of rotation
- 4,0 - 15,0 volts
- 500 - 8000 rpm
- -30 to 100 Celsius
- Stock or high energy coil, primary coil NOT below 1,0 ohm
- Constant current, fully automatic
- After 1 second current is switched off
- Less than 0,5 degr. crankshaft
- Programmable: -20 / +20 degrees.
- Max. Advance
- 45 degr. crankshaft

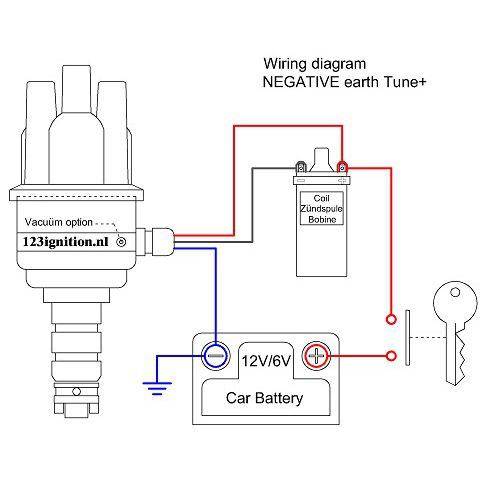

- red +6V or +12V, black '-' ignition coil, blue chassis ground
- Earth type
- Suitable for negative and positive earth systems
- Wirelessly programmable with Android or iOS app
